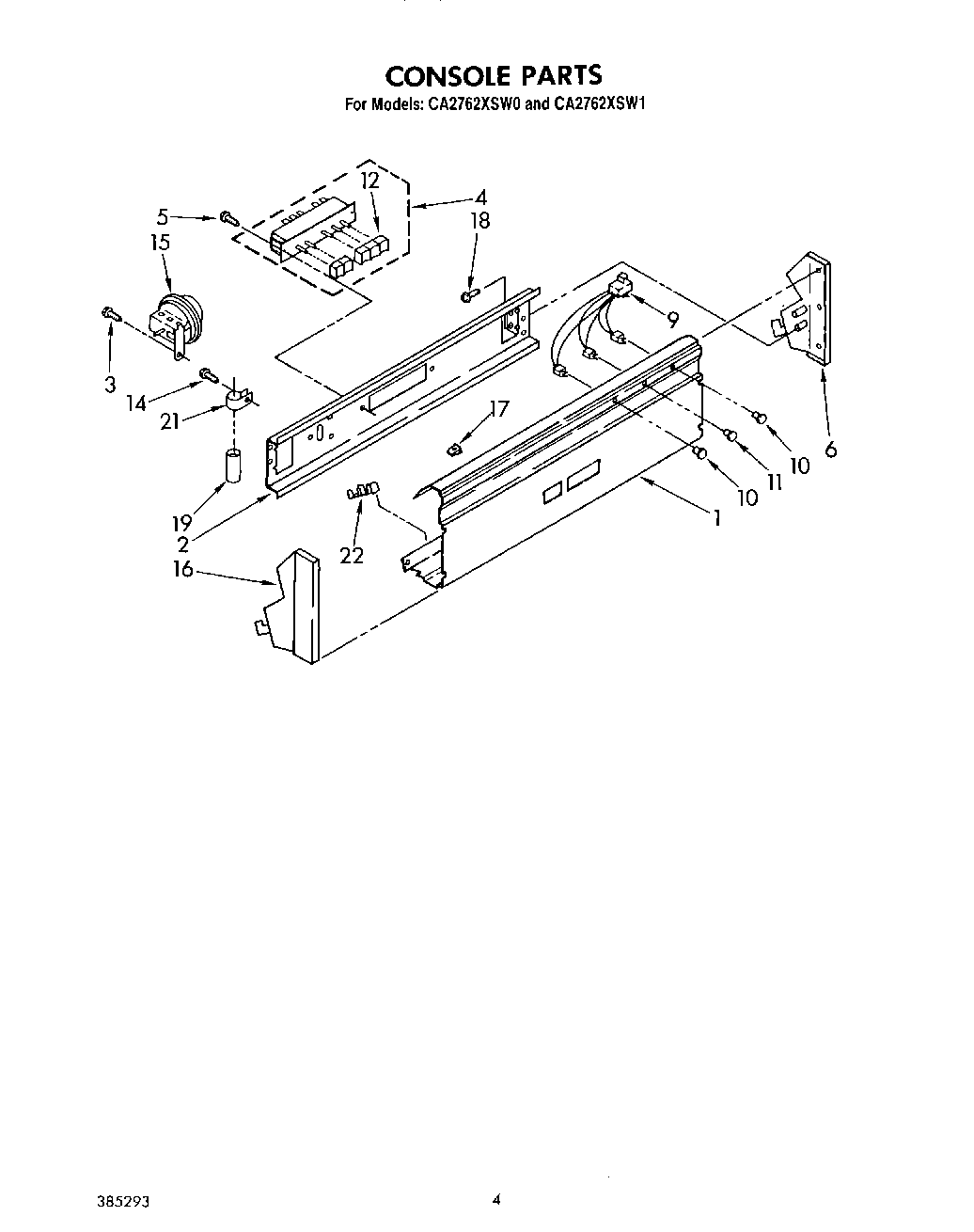

| 1 | Panel, Console |
| 2 | Bracket, Control |
| 3 | WP90767 Whirlpool Screw |
| 4 | Switch, Cycle Selector (Includes Illus. No. 12) |
| 5 | WP965173 Whirlpool Dishwasher Screw |
| 6 | End Cap (R.H.) |
| 9 | Lights, Indicator |
| 10 | WP3348109 Whirlpool Light Lens |
| 11 | WP3348110 Whirlpool Light Lens |
| 12 | Button (4) |
| 14 | SCREW |
| 15 | Switch, Water Level |
| 16 | Cap, End (L.H.) |
| 17 | WP689559 Whirlpool Nut |
| 18 | WPL 355326 |
| 19 | CAPACITOR |
| 21 | 357030 Whirlpool Clamp |
| 22 | W10113937 Whirlpool Clamp |
