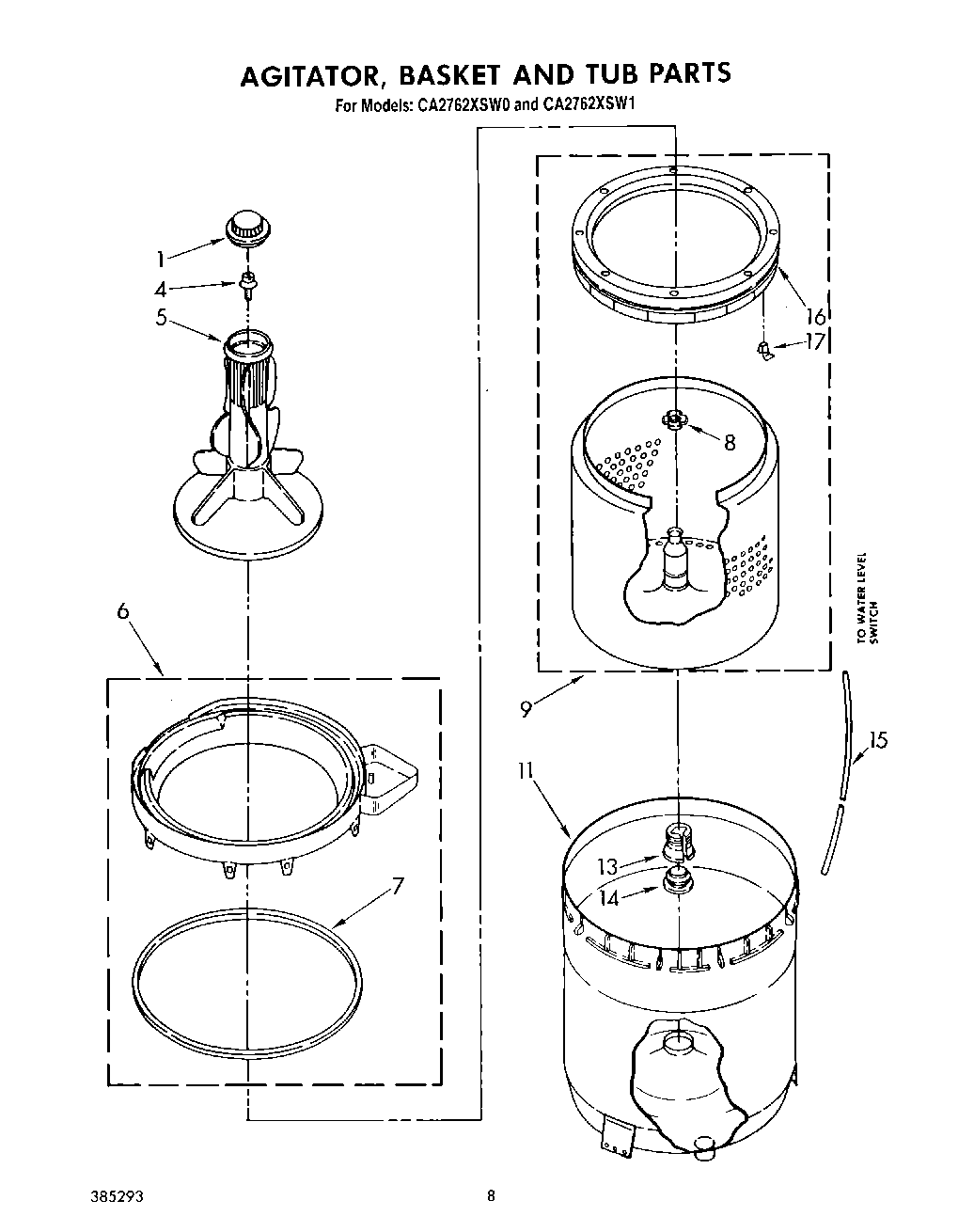

CA2762XSW0 06 – AGITATOR BASKET AND TUB

CA2762XSW0 06 – AGITATOR BASKET AND TUB

Written by

in

CA2762XSW0 06 – AGITATOR BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
4WP358237 Whirlpool Agitator Bolt
5WP63235 Whirlpool Agitator Assembly
6Tub Ring & Gasket
7WP3359586 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9Basket
11Tub
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
16WP8519815 Whirlpool Washer Balance Ring Clip
17WP3956205 Whirlpool Balance Ring
