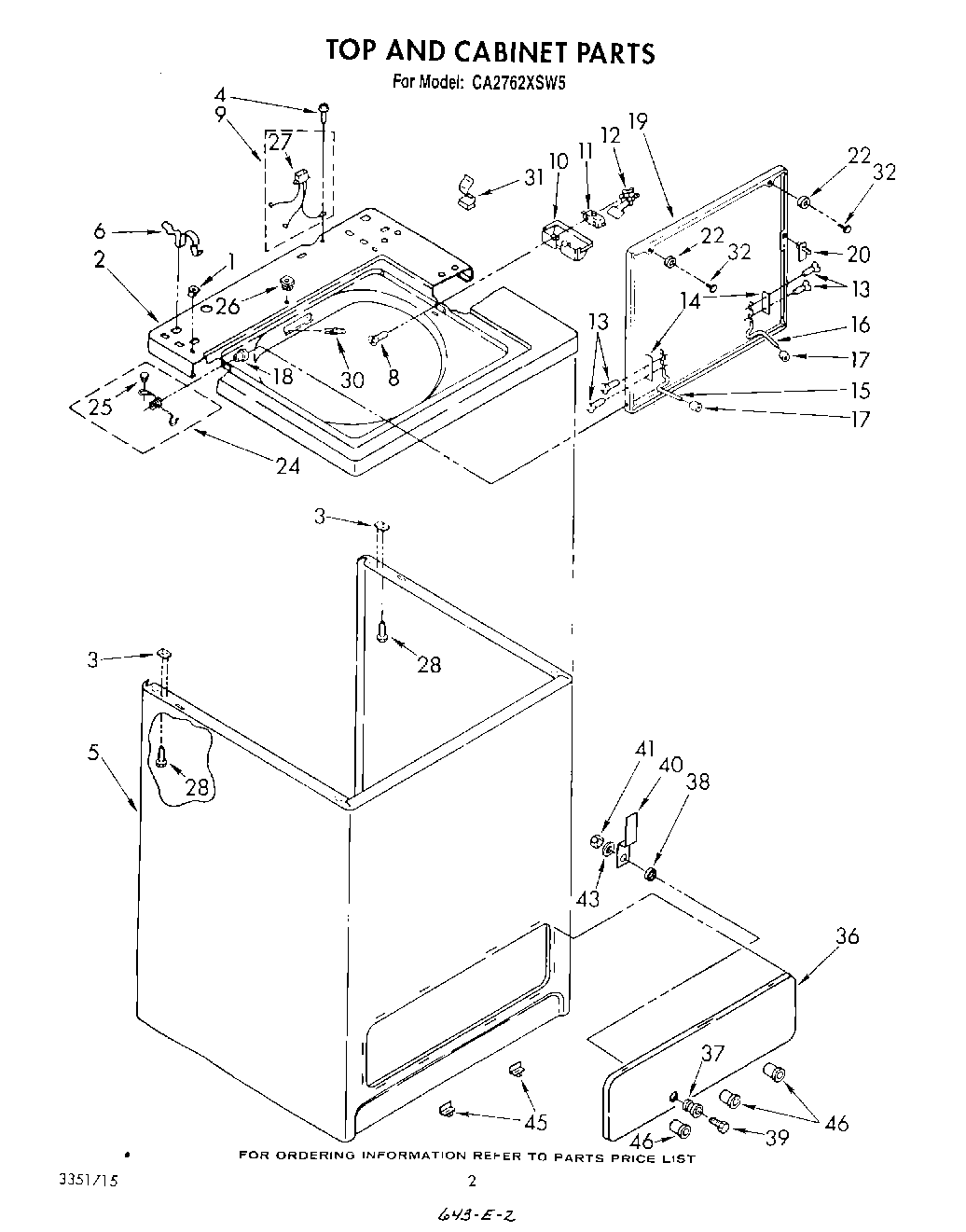

CA2762XSW5 02 – TOP AND CABINET, LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3351715
	WP285195 Whirlpool Sealer Assembly
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	Golden Harvest (Uncut)
	Golden Harvest
	WPL LIT3348321
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	WPL LIT3349740
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
1	Nut, Push-In (2)
2	Top (White)
2	Top (Almond)
2	Top (Golden Harvest)
3	WP62750 Whirlpool Spacer
5	Cabinet (White)
5	Cabinet (Golden Harvest)
5	Cabinet (Almond)
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
9	Harness, Lid Switch
10	WP359231 Whirlpool Shield
11	W10820036 Whirlpool Door Switch Kit
12	Actuator, Lid Switch
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
19	Lid (Almond)
19	Lid (Golden Harvest)
20	WP358684 Whirlpool Strike Assembly
22	BUMPER
24	Spring & Button, Lid
25	Plug, Button
26	Stop, Push-In Top
27	Plug, Terminal (3-Way)
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
32	WP356907 Whirlpool Rivet
36	Panel, Service (Golden Harvest)
36	Panel, Service (White)
36	Panel, Service (Almond)
37	Housing, Lock
38	Clip, Strain Relief
39	Lock Screw
40	Cam Lock
41	Nut, 3/8-16
43	Washer, Spring
45	Spacer (2)
46	Sleeve (3)
