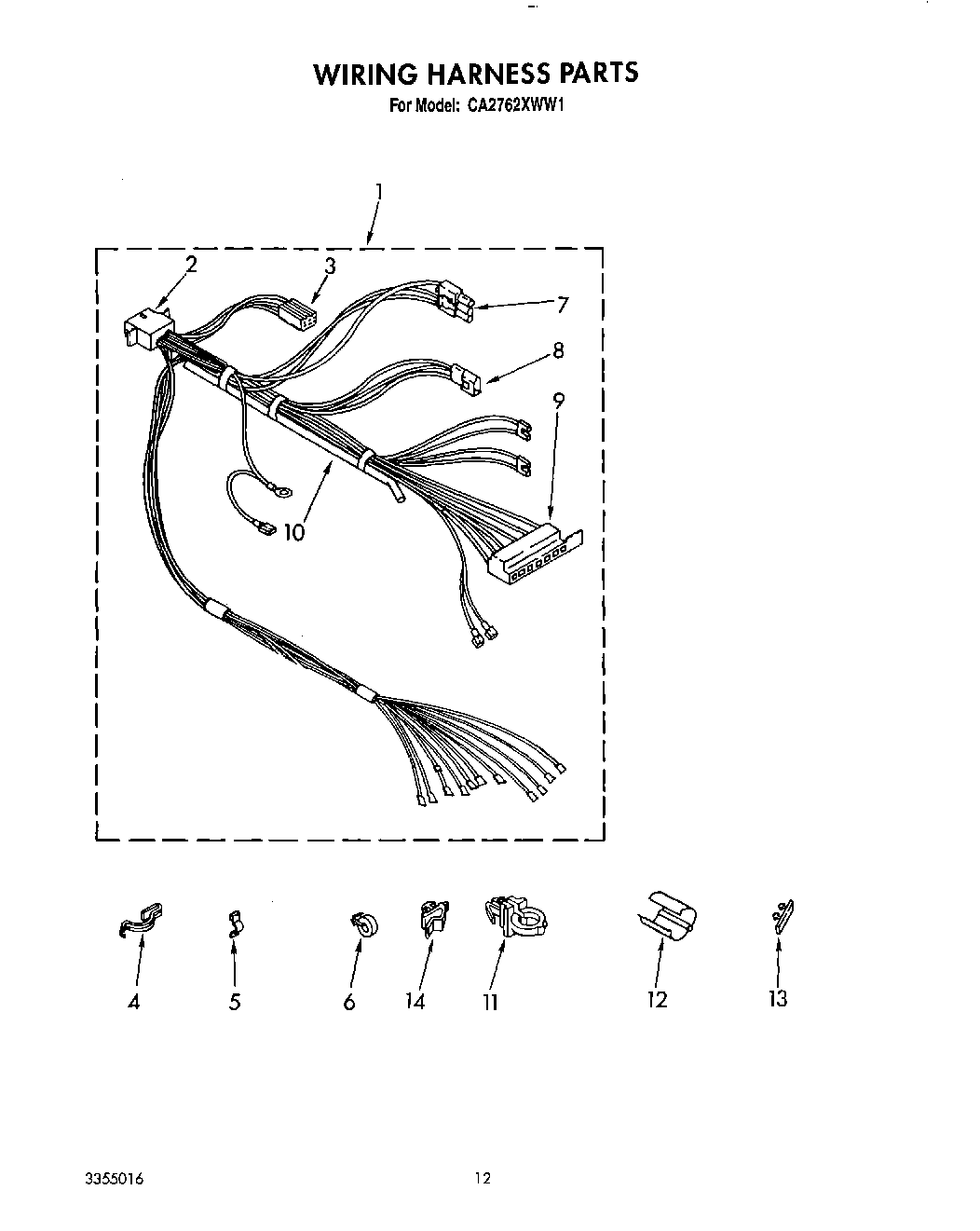

CA2762XWN1 10 – WIRING HARNESS

CA2762XWN1 10 – WIRING HARNESS

Written by

in

CA2762XWN1 10 – WIRING HARNESS

Products

PositionProduct
1WP3359812 Whirlpool Wire Harness
2Plug, Terminal (15 Way)
3Plug, Terminal (6 Way)
3WP94614 Whirlpool Terminal
58528351 Whirlpool Clip
68559320 Whirlpool Clip
7WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
8353424 Whirlpool Connector
9WP62505 Whirlpool Connector
10WP353244 Whirlpool Hose
11Clip, Harness
12Protector, Harness
13WP389379 Whirlpool Retainer
14Clip, Harness
