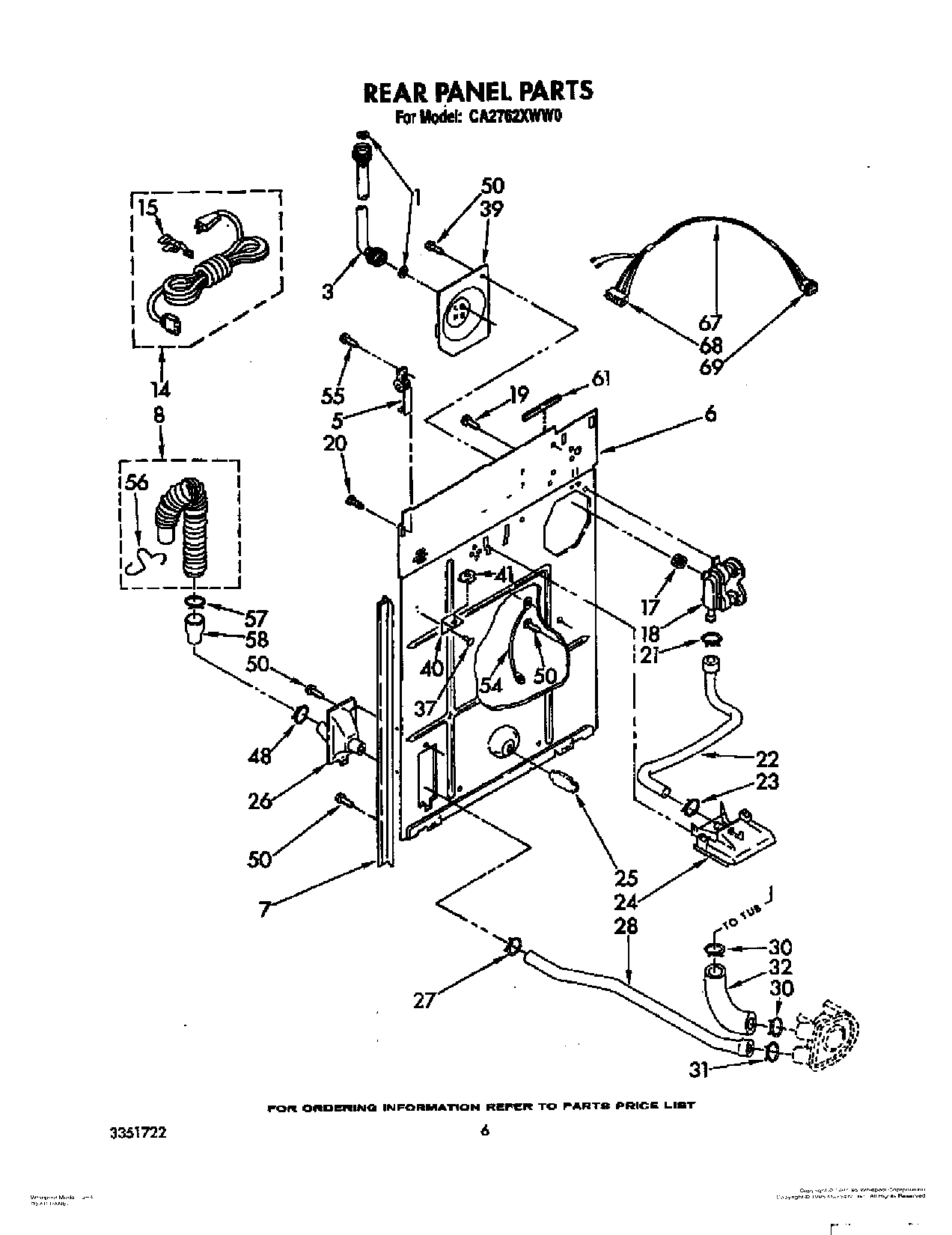

CA2762XWW0 05 – REAR PANEL

CA2762XWW0 05 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
5Hinge, Console (2)
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8WP96743 Whirlpool Hose
14Cord, Power
15Strain Relief, Power Cord
17WP96160 Whirlpool Washer Inlet Valve Screen
18285805 Whirlpool Washer Water Inlet Valve
20SCREW
22HOSE
23WP596669 Whirlpool Hose Clamp
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
28WP3348552 Whirlpool Hose
30WP371502 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
37Rivet (2)
39285930 Whirlpool Plate
40Bracket, Top Lock
41WP90406 Whirlpool Nut
48WP356138 Whirlpool Hose Clamp
50WP3390631 Whirlpool Screw
54WPL 364089
55WP308685 Whirlpool Microwave Screw
56WPL 3350222
57WP616099 Whirlpool Clamp
58WP384496 Whirlpool Hose Coupling
61Edge Protector
67Harness, Timer (Includes Illus. 68 & 69)
68W10876590 Whirlpool Connector
69Cap, Terminal (15 Way)
