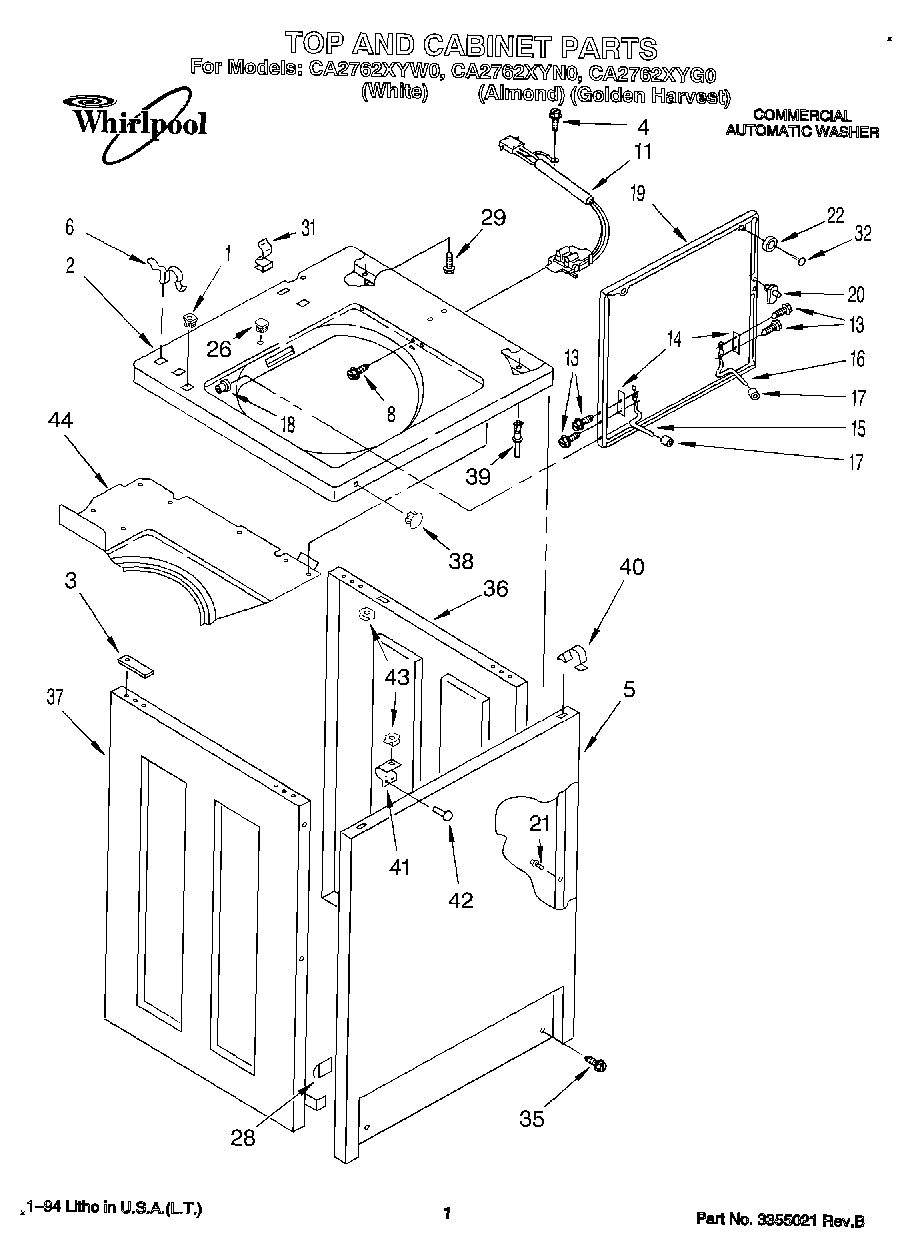

CA2762XYG0 01 – TOP AND CABINET, LIT/OPTIONAL

CA2762XYG0 01 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

CA2762XYG0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP285195 Whirlpool Sealer Assembly
Golden Harvest
Golden Harvest (Uncut)
Shipping Kit
WPL LIT3360613
WPL LIT3355024
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WPL LIT3355021
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350572 Whirlpool Oil Transmission 15 Oz
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
1Nut, Push-In (2)
2Top (For Golden Harvest Model)
2Top (White)
2Top (For Almond Model)
3Spacer, Cabinet To Top (4)
4SCREW
5WP3358500 Whirlpool Panel
5Panel, Front (For Almond Model)
5Panel, Front (For Golden Harvest Model)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Golden Harvest)
19Lid (For Almond Model)
19WPW10193854 Whirlpool Lid Assembly
20WP358684 Whirlpool Strike Assembly
21Locator (4)
22BUMPER
26Stop, Push-In Top
28WP98234 Whirlpool Nut
29Screw (2)
31WP90016 Whirlpool Clip
32WP356907 Whirlpool Rivet
35WP3373329 Whirlpool Dishwasher Screw
36Panel, R. H. (Golden Harvest)
36Panel, R. H. (White)
36Panel, R. H. (Almond)
37Panel, L. H. (White)
37Panel, L. H. (For Golden Harvest Model)
37Panel, L. H. (Almond)
38WP387371 Whirlpool Plug
39Pin, Locator (2)
40WP18776 Whirlpool Lock
41Bracket, Lock
42Rivet (2)
43WP90406 Whirlpool Nut
44Shield, Lid
