CA29WC00 02 – AIR FLOW AND CONTROL

CA29WC00 02 – AIR FLOW AND CONTROL

Written by

in

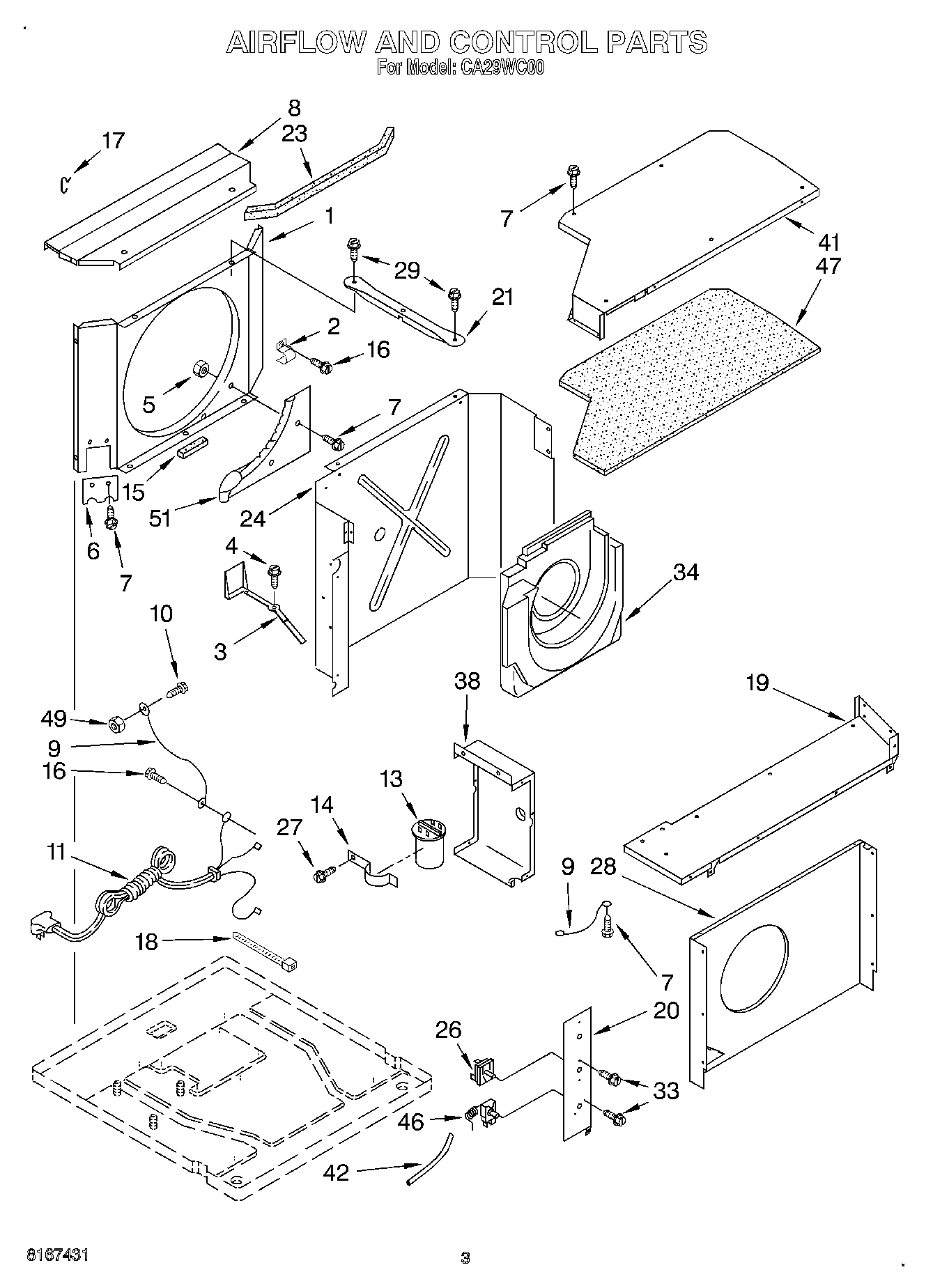

CA29WC00 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
2Clip, Wet Loop
3Door, Exhaust
4Screw, 8-18 x .437
5WP488130 Whirlpool Air Conditioner Nut
6Clip, Nylon
8Top, Condenser
9Wire, Ground
10Screw, 7-18 x 5/8
11Cord, Appliance
13Capacitor
14Bracket, Capacitor
15Seal, Condensate Cup
17Clip, Shroud (2)
18WPW10339879 Whirlpool Wire Tie
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
27WP489069 Whirlpool Compactor Screw
28Shroud Assembly, Evaporator
29WP308685 Whirlpool Microwave Screw
33Screw, 6-32 x .175
34Housing, Air
38Control Box (R.S.)
41Cover, Top
42Sleeve, Insulating
46Control, Temperature
47Insulation, Top Cover
49WP486255 Whirlpool Air Conditioner Nut
51Cup, Condensate
