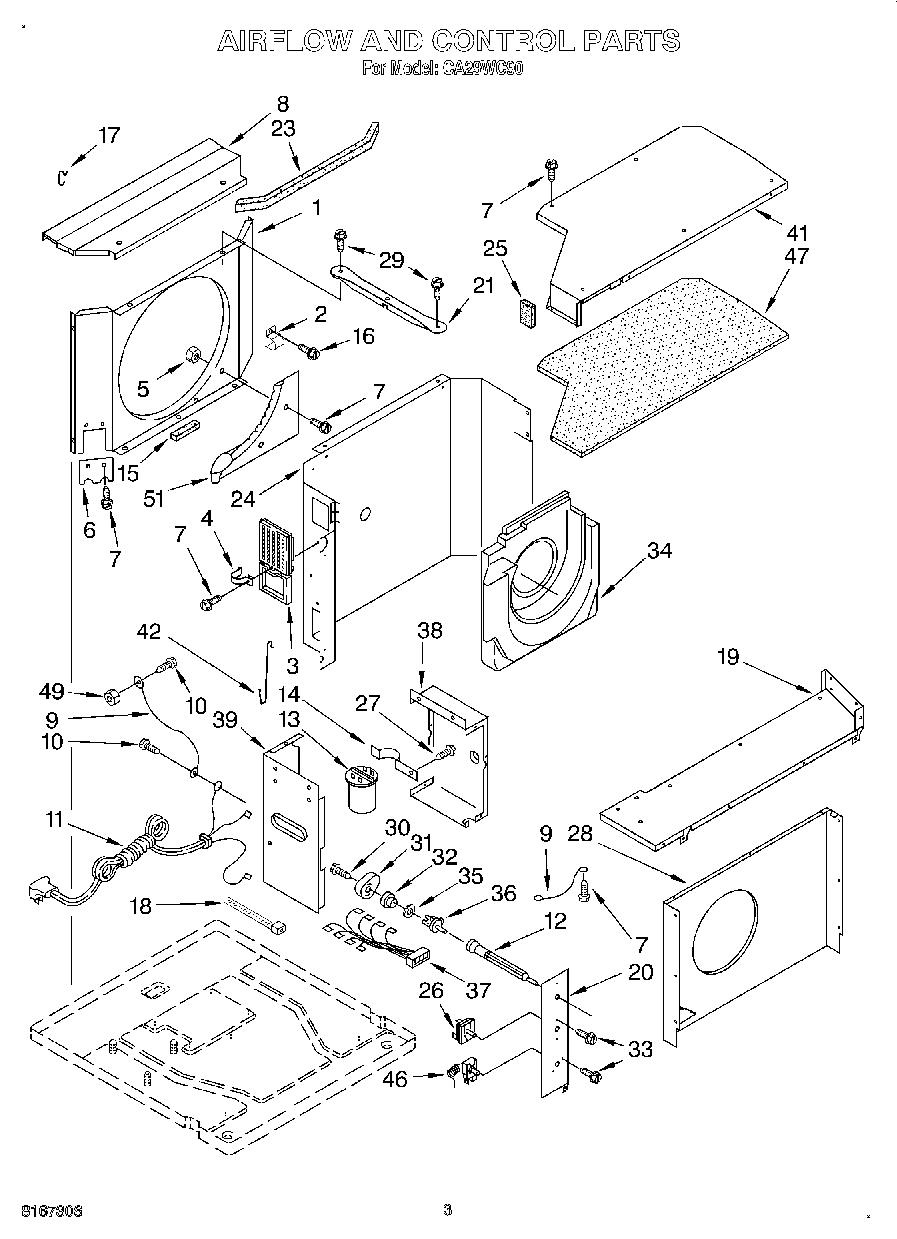

CA29WC90 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	Clip, Wet Loop
3	Door, Air (2)
4	Spring, Door (2)
5	WP488130 Whirlpool Air Conditioner Nut
6	Clip, Nylon
8	Top, Condenser
9	Wire, Ground
11	Cord, Appliance
12	Control, Shaft
13	Capacitor
14	Bracket, Capacitor
15	Seal, Condensate Cup
16	WP489069 Whirlpool Compactor Screw
17	Clip, Shroud (2)
18	WPW10339879 Whirlpool Wire Tie
19	Evap. Shroud Top
20	Panel, Control
21	Support, Unit (2)
23	Seal, Shroud
24	Dividing Wall
25	Seal, Anti-Rub
26	Switch, Rotary
27	WP488787 Whirlpool Refrigerator Screw
28	Shroud Assembly, Evaporator
29	WP308685 Whirlpool Microwave Screw
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	Housing, Air
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring - Control Box
38	Control Box (R.S.)
39	Control Box (L.S.)
41	Cover, Top
42	Wire, Control Exhaust
46	Control, Temperature
47	Insulation, Top Cover
49	WP486255 Whirlpool Air Conditioner Nut
51	Cup, Condensate
