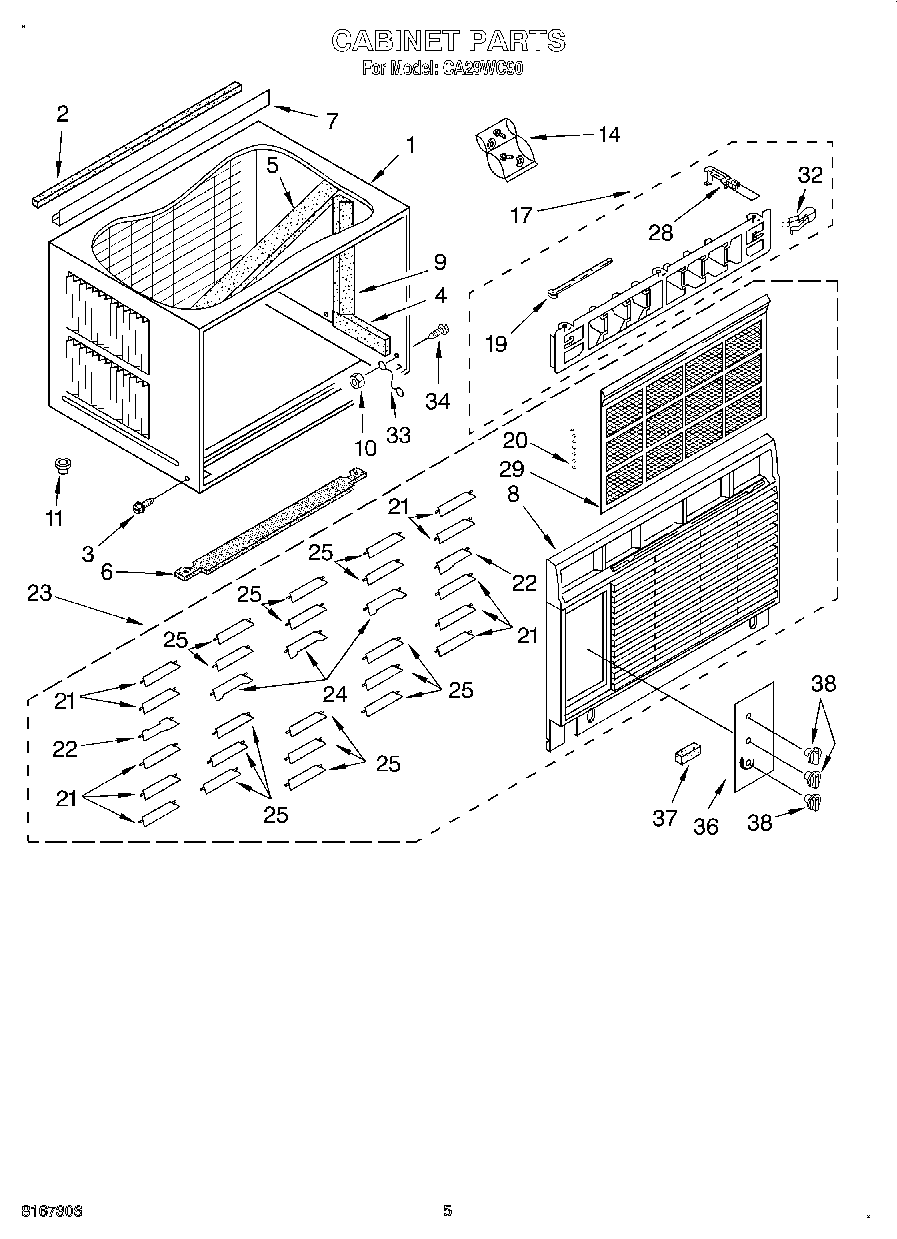

CA29WC90 03 – CABINET

CA29WC90 03 – CABINET

Written by

in

CA29WC90 03 – CABINET

Products

PositionProduct
1Cabinet (Includes Insulation)
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Insulation, Cabinet (Top)
6Seal
7Angle (Top)
8Front, Cabinet
9Insulation, Cabinet Side (2)
10WP486255 Whirlpool Air Conditioner Nut
11Cup, Condensate Drain
14Bag, Accessory
17Vertical, Louver
19Link, Verticle Louver (2)
20Link, Horizontal Louver (5)
21Louver, Horizontal (10)
22Louver, Horizontal W/ Handle (2)
23Front, Complete
24Louver, Horizontal W/Handles (3)
25Louver, Horizontal (15)
28Actuator, Louver
29Filter
32Spring, Detent
33Wire, Ground
34WP488234 Whirlpool Air Conditioner Screw
36Plate, Escutcheon
37Spacer, Escutcheon Plate (3)
38Knobs (3)
