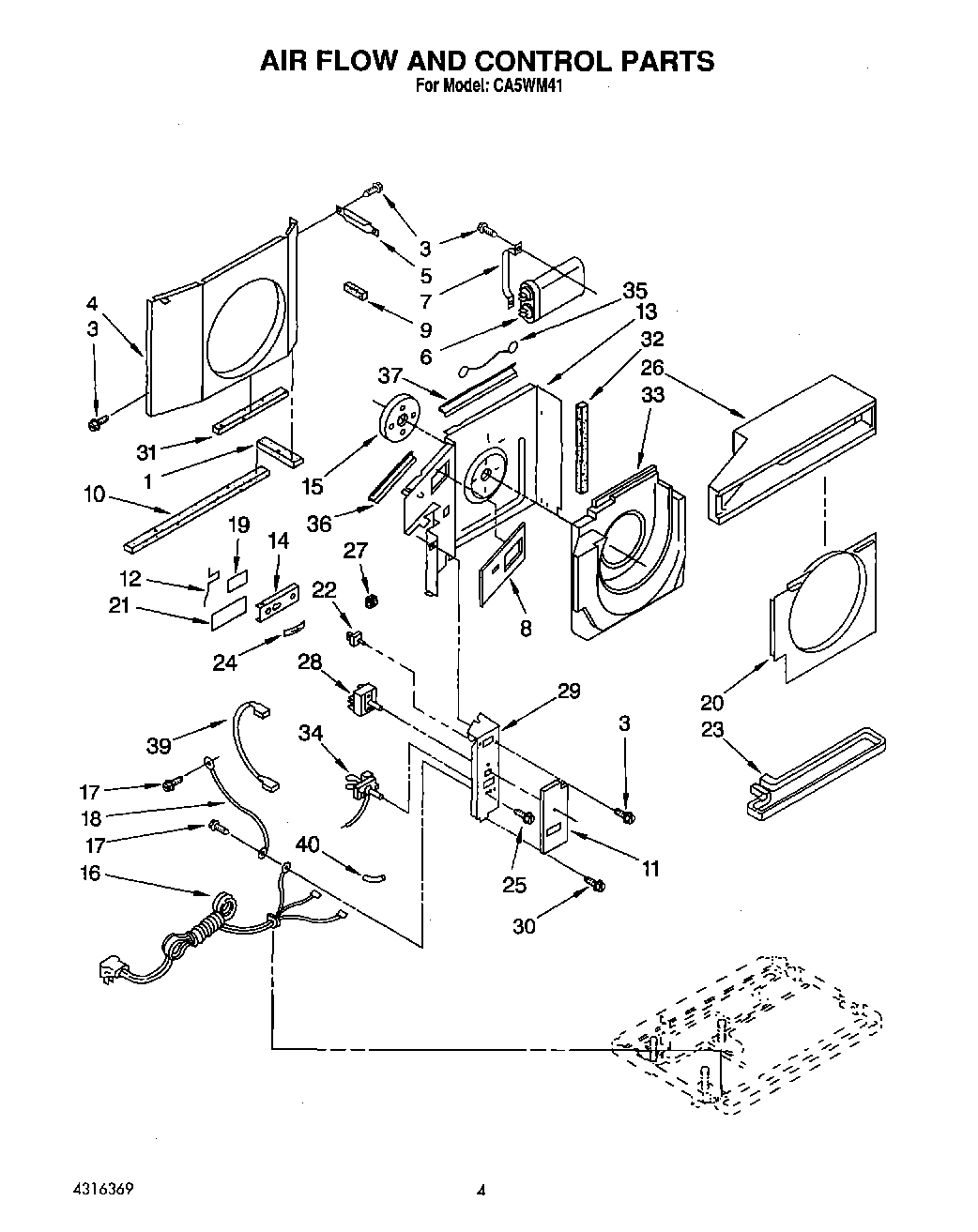

CA5WM41 03 – AIR FLOW AND CONTROL

Products

PositionProduct
1Seal, Condensate
3WP489069 Whirlpool Compactor Screw
4Shroud, Condenser
5Support, Unit
6Capacitor, Running
7Bracket, Capacitor
8Insulation, Exhaust Door
9Seal, Condenser (R.S.)
10Seal
11Insulation, Control Panel
12Arm, Exhaust Door
13Wall, Dividing
14Door, Exhaust
15Insulation, Motor
16Cord, Appliance
17Screw 8-18 x .295
18Wire, Ground
19Spacer
20Shroud, Evaporator
21Barrier Protective
22Actuator, Door
23Pan, Evaporator
24Spring, Retainer
25Screw, 6-32 x .175
26Hood, Air Housing
27Sealer, Tube
28Switch, Rotary
29Panel, Control
30Screw, 8-18 x 3/8
32WP854334 Whirlpool Air Conditioner Sealing Strip
33Housing, Air
34Control, Temperature
35Wire, Lead
36Guard, Edge Seal
37Guard, Edge Seal
39Wire, Jumper
40Sleeve, Insulator Temp. Control
