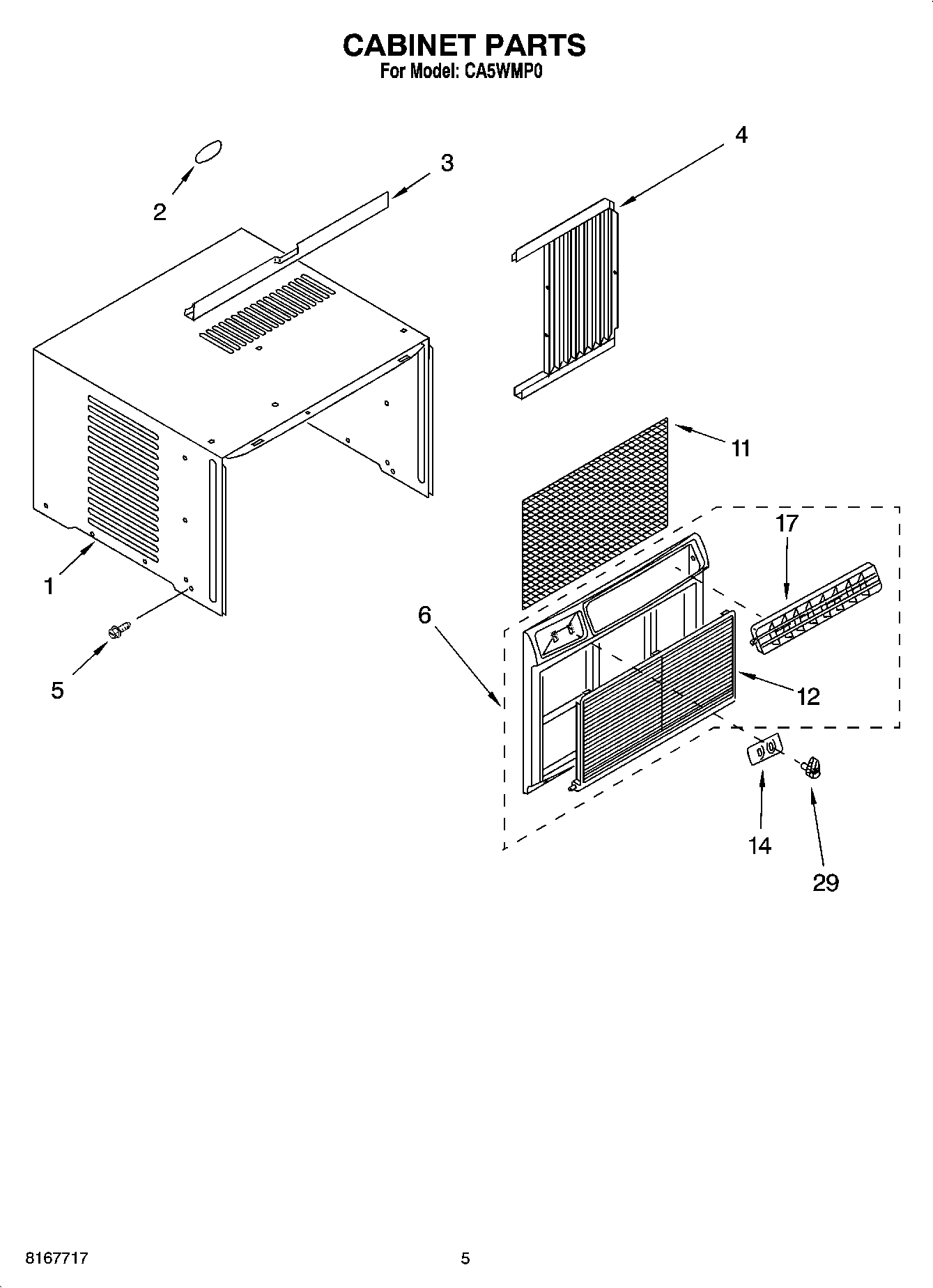

CA5WMP0 03 – CABINET PARTS
Products
| Position | Product |
|---|---|
| 1 | Cabinet |
| 2 | Nameplate, Rear |
| 3 | Channel, Top |
| 4 | Curtain (Right Side) |
| 4 | Curtain (Left Side) |
| 5 | Screw |
| 6 | Front, Cabinet Assembly |
| 11 | Filter |
| 12 | Grille, Front |
| 14 | Escutcheon |
| 17 | Louver, Assembly |
| 29 | Knob |
CA5WMP0 03 – CABINET PARTS
| Position | Product |
|---|---|
| 1 | Cabinet |
| 2 | Nameplate, Rear |
| 3 | Channel, Top |
| 4 | Curtain (Right Side) |
| 4 | Curtain (Left Side) |
| 5 | Screw |
| 6 | Front, Cabinet Assembly |
| 11 | Filter |
| 12 | Grille, Front |
| 14 | Escutcheon |
| 17 | Louver, Assembly |
| 29 | Knob |
