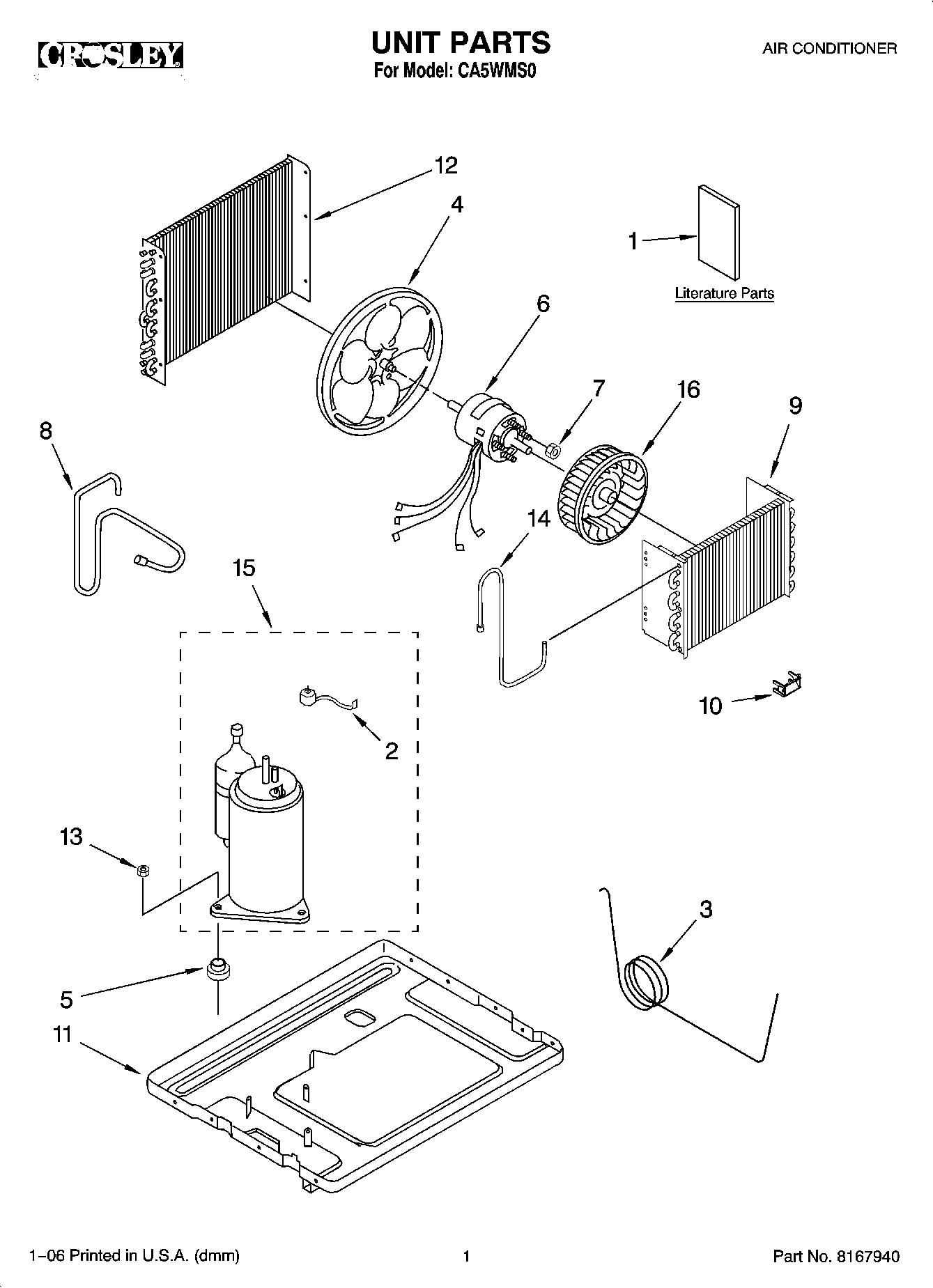

CA5WMS0 01 – UNIT PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & care Guide
2	Overload
3	Tube, Restrictor
4	Blade, Fan
5	Grommet (3)
6	Motor, Fan
7	Nut, Hex
8	Tube, Discharge
9	Evaporator
10	Support, Tube Sensor
11	Base
12	Condenser
13	Nut, Hex
14	Tube, Suction
15	Compressor Assembly
16	Wheel, Blower
16	REFRIGERANT CHARGE 13.69 oz.
