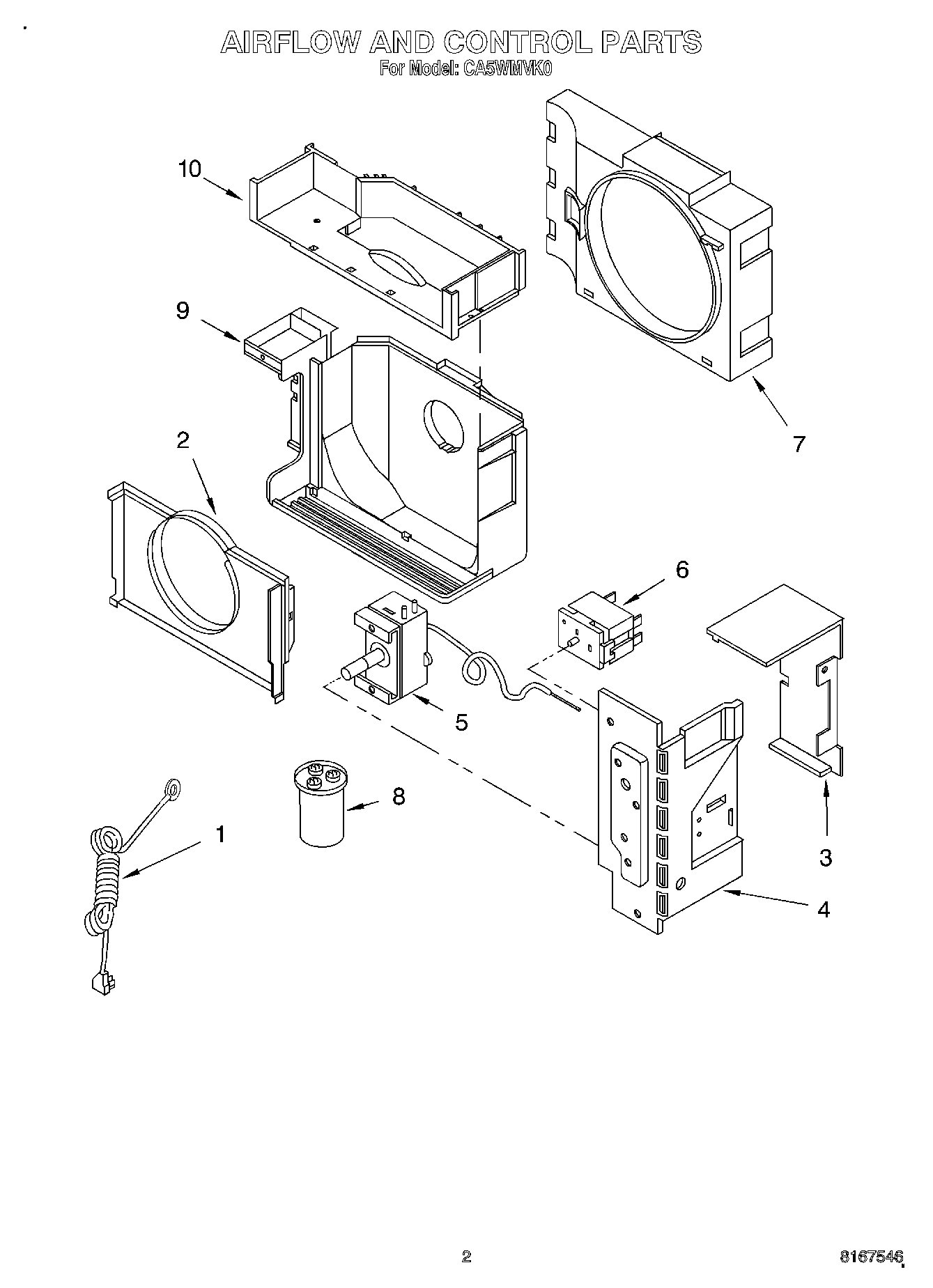

CA5WMVK0 02 – SECTION
Products
| Position | Product |
|---|---|
| 1 | Cord, Power |
| 2 | Scroll, Fan |
| 3 | Cover, Control Box |
| 4 | Box, Control |
| 5 | Thermostat |
| 6 | Switch, Rotary |
| 7 | Shroud, Condenser |
| 8 | Capacitor |
| 9 | Housing, Blower |
| 10 | Hood, Air Housing |
CA5WMVK0 02 – SECTION
| Position | Product |
|---|---|
| 1 | Cord, Power |
| 2 | Scroll, Fan |
| 3 | Cover, Control Box |
| 4 | Box, Control |
| 5 | Thermostat |
| 6 | Switch, Rotary |
| 7 | Shroud, Condenser |
| 8 | Capacitor |
| 9 | Housing, Blower |
| 10 | Hood, Air Housing |
