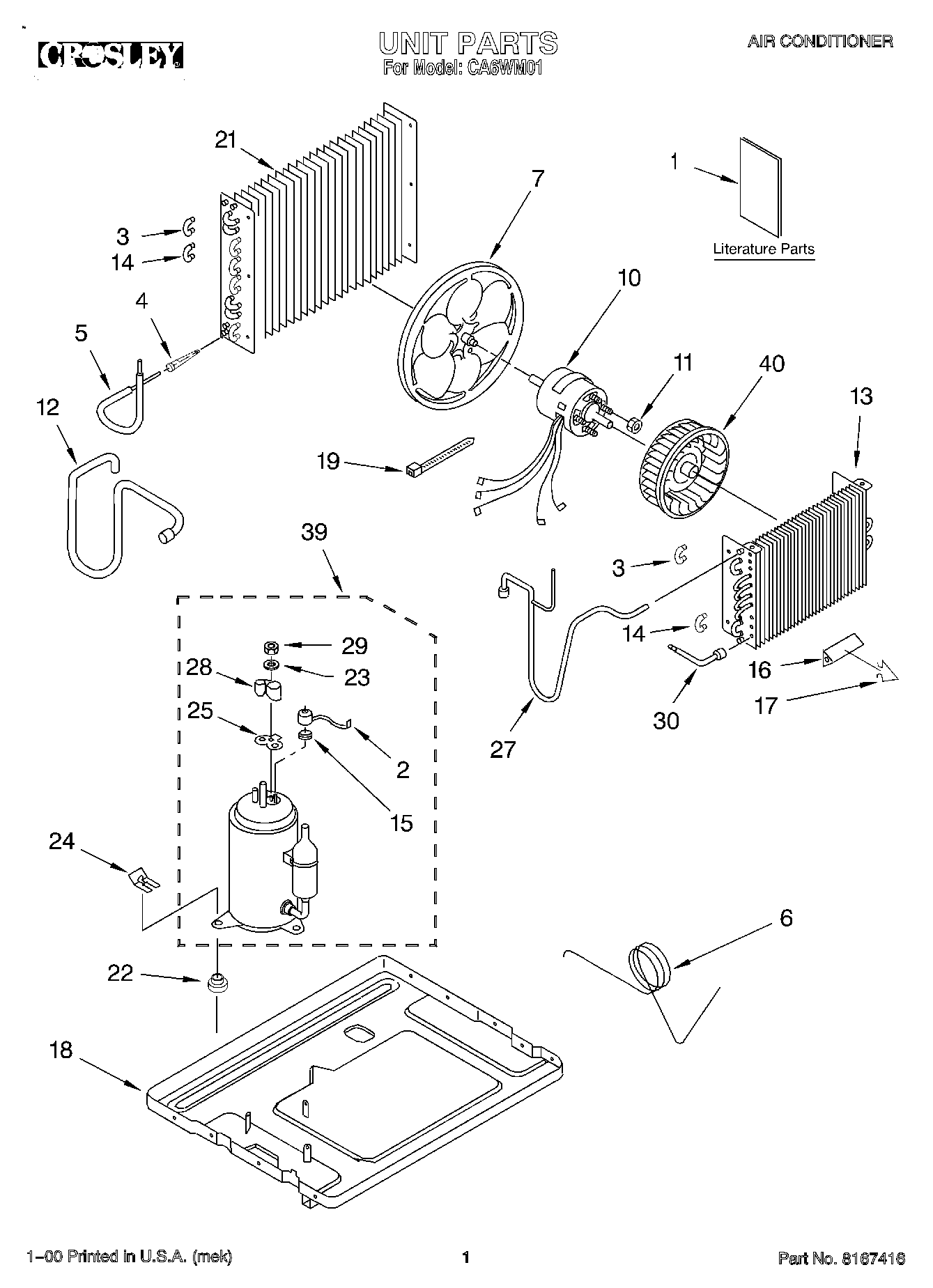

CA6WM01 01 – UNIT, LITERATURE

Products

PositionProduct
1LITERATURE PARTS (Use & Care Guide)
1LITERATURE PARTS (Wiring Diagram)
2WP1161170 Whirlpool Air Conditioner Overload
3Bend, Return Evaporator (4) Condenser (4)
4WP1162526 Whirlpool Air Conditioner Strainer
5Tube, Outlet
6Tube, Restrictor
7Blade, Fan
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Tube, Discharge
13Evaporator
14Bend, Return Condenser (4)
15Spring, Overload
16Anticipator, Temperature
17Clip, Anticipator
18Base
19WPW10339879 Whirlpool Wire Tie
21Condenser
22Grommet
23Gasket, Nut
24Clip, Compressor
25WP950035 Whirlpool Cover Gasket
27Tube, Suction
28WP950036 Whirlpool Cover Assembly
29WP950027 Whirlpool Mounting Nut
30Tube, Feeder (Restrictor)
39Compressor Assembly
40Wheel, Blower
