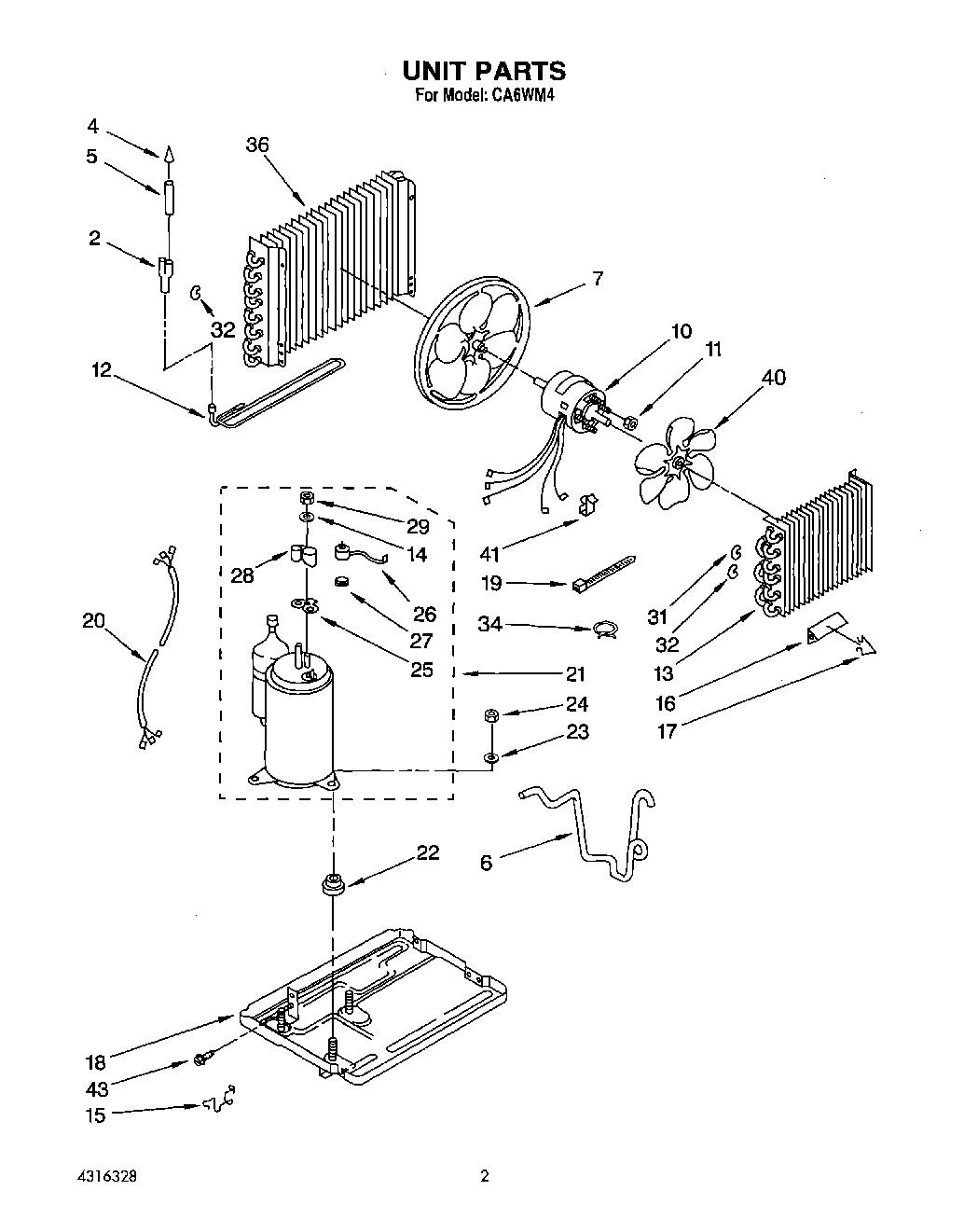

CA6WM4 02 – UNIT, LIT/OPTIONALadmin2025-04-26T10:55:17+00:00CA6WM4 02 – UNIT, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Repair Parts List |
| Wiring Diagram |
| Instructions, Installation |
| Tech Sheet |
| Guide, Use And Care |
| 2 | Tube, Flow Divider |
| 4 | Strainer |
| 5 | Tube & Strainer (Includes Illus. 4) |
| 6 | Tube, Restrictor |
| 7 | Blade, Fan |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 12 | Tube, Condenser Extension |
| 13 | Evaporator |
| 14 | Gasket, Nut |
| 15 | Clip, Mtg. (2) (Base to Front) |
| 16 | Anticipator, Temperature |
| 17 | Clip, Anticipator |
| 18 | Base |
| 19 | WPW10339879 Whirlpool Wire Tie |
| 20 | Harness, Wiring |
| 21 | Compressor Assembly |
| 22 | Grommet |
| 23 | WP120393 Whirlpool Washer Assembly |
| 24 | Nut, Hex (4) |
| 25 | WP950035 Whirlpool Cover Gasket |
| 26 | WP1161170 Whirlpool Air Conditioner Overload |
| 27 | Spring, Overload |
| 28 | WP950036 Whirlpool Cover Assembly |
| 29 | WP950027 Whirlpool Mounting Nut |
| 31 | Bend, Return Condenser (4) |
| 32 | Bend, Return Condenser (10) |
| 34 | Clamp, Tube (2) |
| 36 | Condenser |
| 40 | Blade, Fan |
| 41 | Clamp, Wiring |
| 43 | WP489069 Whirlpool Compactor Screw |
