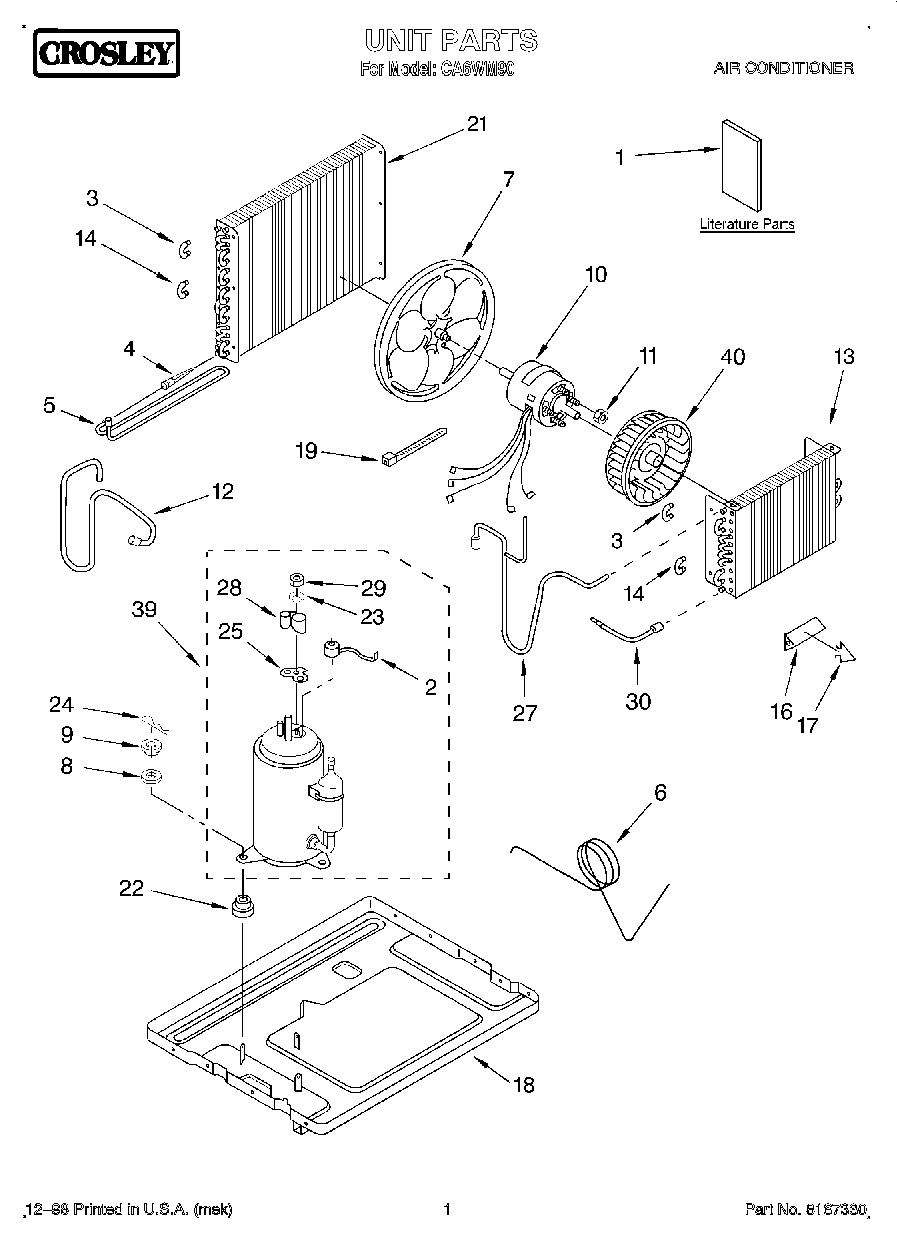

CA6WM90 01 – UNIT, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	LITERATURE PARTS (Use & Care Guide)
2	Overload
3	Bend, Return Evaporator (4) Condenser (4)
4	WP1162526 Whirlpool Air Conditioner Strainer
5	Tube, Wet Loop
6	Tube, Restrictor
7	Blade, Fan
8	Washer
9	Bushing, Washer
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
14	Bend, Return Condenser (4)
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
21	Condenser
22	Grommet
23	Gasket, Nut
24	Clip, Compressor
25	Gasket, Terminal Cover
27	Tube, Suction
28	Cover, Terminal
29	Nut, Hex
30	Tube, Feeder (Restrictor)
39	Compressor Assembly
40	Wheel, Blower
