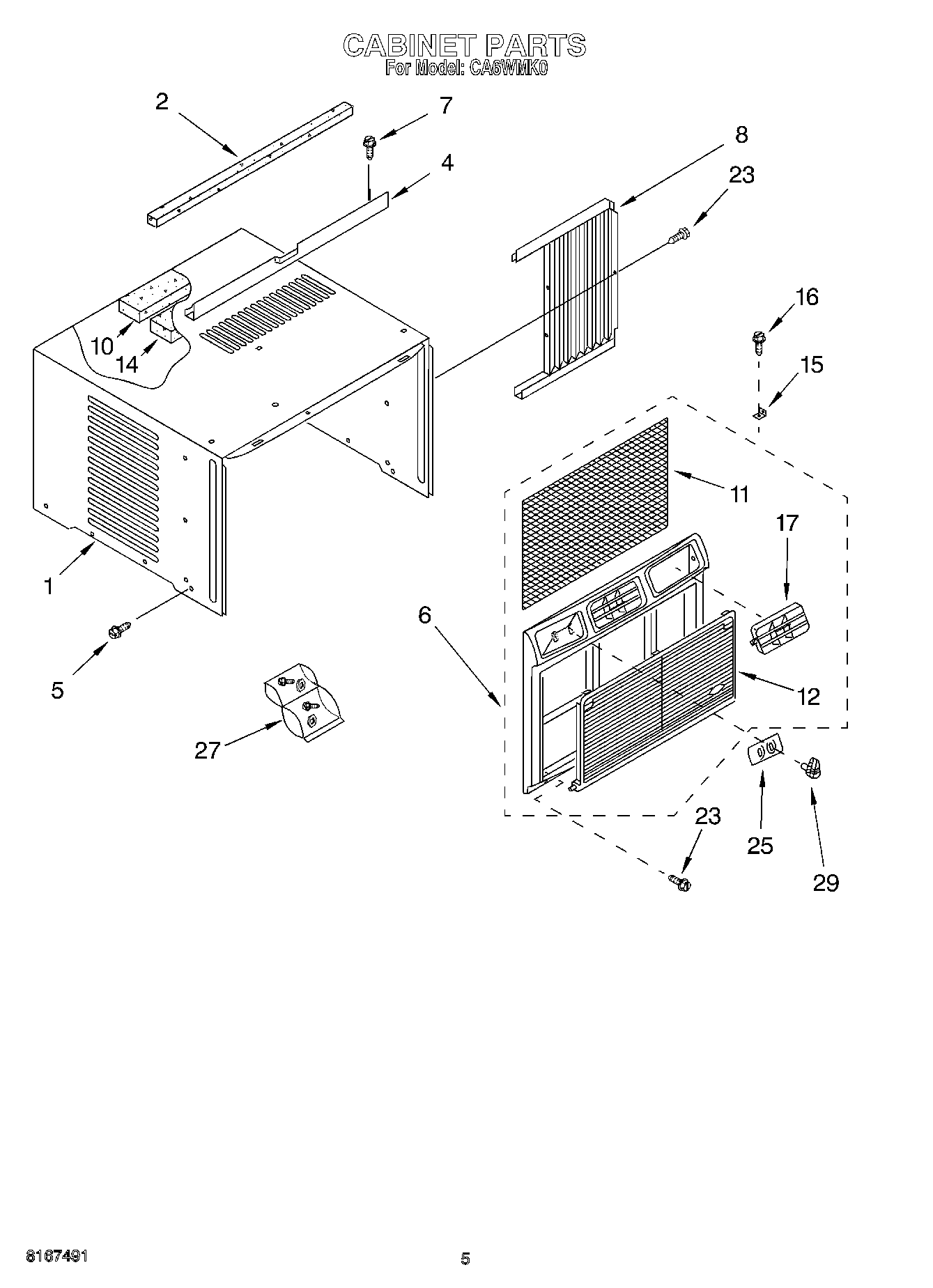

| 1 | Cabinet |
| 2 | Gasket, Meeting Rail |
| 4 | Channel, Top |
| 5 | WP489069 Whirlpool Compactor Screw |
| 6 | Front, Cabinet Assembly |
| 7 | WP308685 Whirlpool Microwave Screw |
| 8 | Curtain (L.S.) |
| 8 | Curtain (R.S.) |
| 10 | Insulation, Top |
| 11 | Filter |
| 12 | Grille, Front |
| 14 | Foam, Condenser |
| 15 | Bracket |
| 16 | Screw, Wood 8-15 x .750 |
| 17 | Louver, Assembly |
| 23 | Screw, 8-18 x 3/8 |
| 25 | Escutcheon |
| 25 | Escutcheon (Without Power Saver Feature) |
| 27 | Bag, Accessory |
| 29 | WP8031121 Whirlpool Air Conditioner Control Knob |
