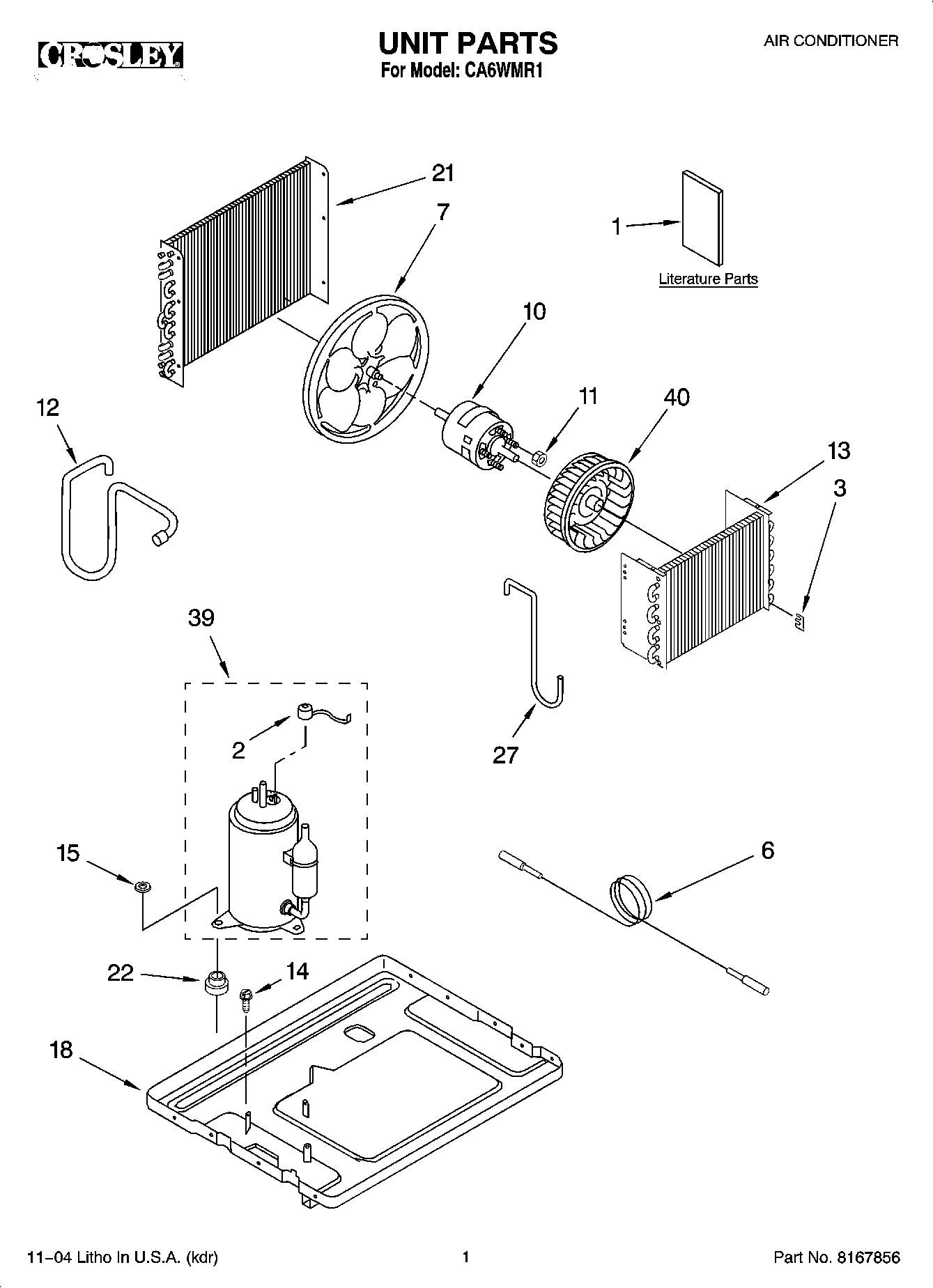

| 1 | Wiring Diagram |
| 1 | Use & care Guide |
| 1 | Energy Guide |
| 2 | Overload |
| 3 | Support, Tube Sensor |
| 6 | Tube, Restrictor |
| 7 | Blade, Fan |
| 10 | Motor, Fan |
| 11 | Nut, Hex |
| 12 | Tube, Discharge |
| 13 | Evaporator |
| 14 | W11245710 Whirlpool Refrigerator Screw |
| 15 | Nut, Hex |
| 18 | Base |
| 21 | Condenser |
| 22 | Energy Guide |
| 27 | Tube, Suction |
| 39 | Compressor Assembly |
| 40 | Wheel, Blower |
| 40 | REFRIGERANT CHARGE 10.75 oz. |
