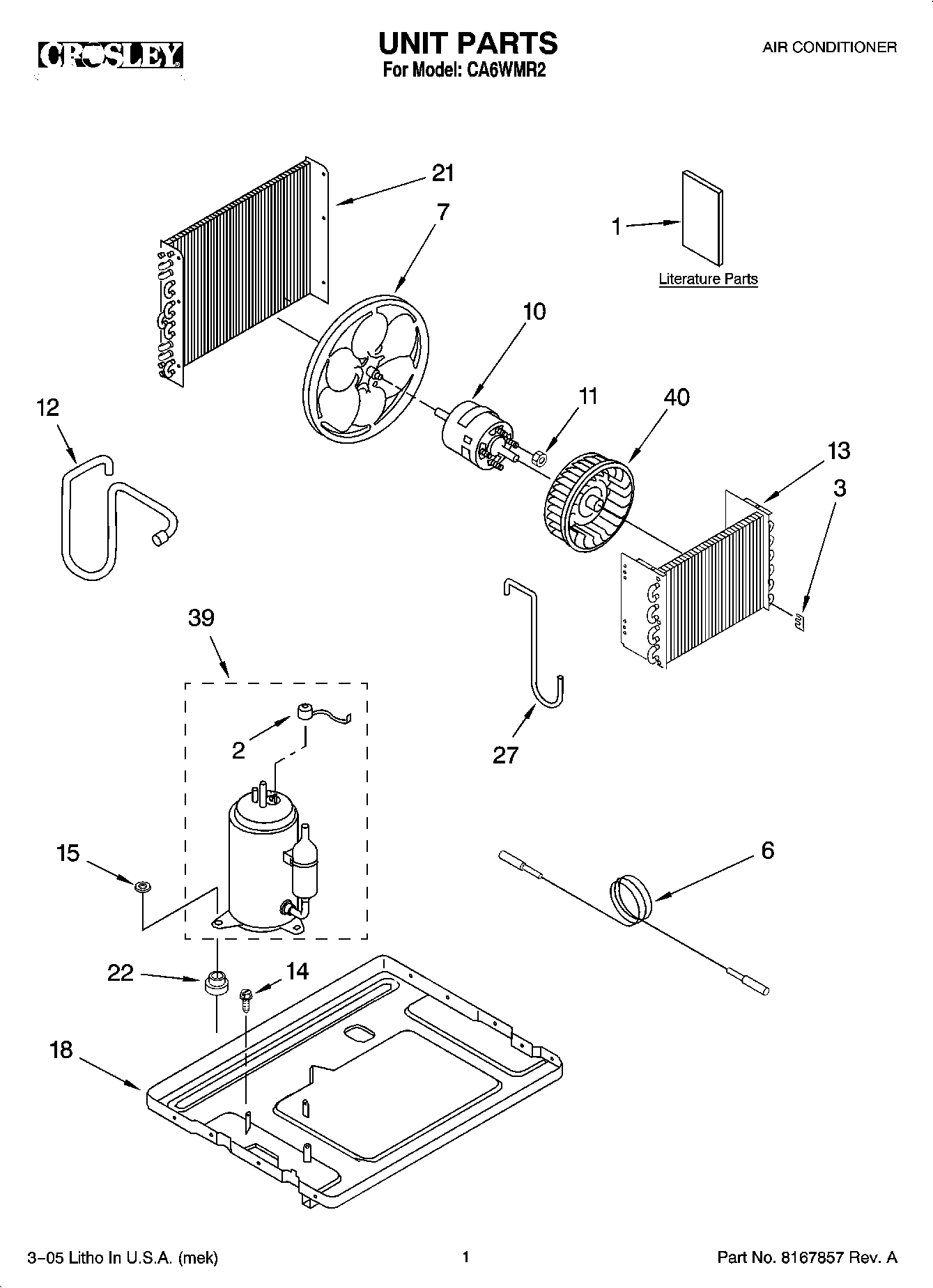

CA6WMR2 01 – UNIT PARTS

Products

Position	Product
1	Energy Guide
1	Use & care Guide
1	Wiring Diagram
2	Overload
3	Support, Tube Sensor
6	Tube, Restrictor
7	Blade, Fan
10	Motor, Fan
11	Nut, Hex
12	Tube, Discharge
13	Evaporator
14	W11245710 Whirlpool Refrigerator Screw
15	Nut, Hex
18	Base
21	Condenser
22	Grommet (3)
27	Tube, Suction
39	Compressor Assembly
40	Wheel, Blower
40	REFRIGERANT CHARGE 14.00 oz.
