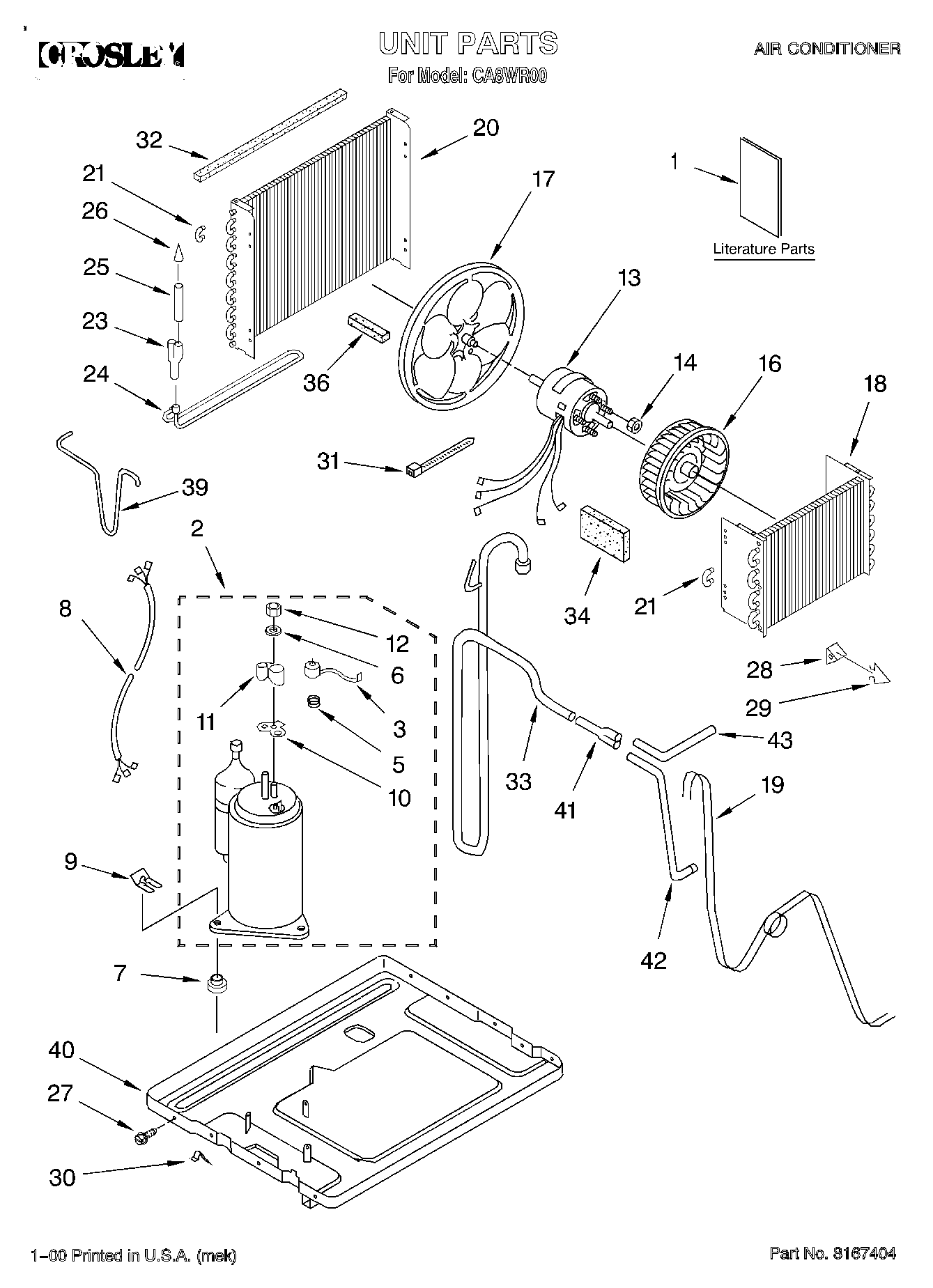

CA8WR00 01 – UNIT, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	LITERATURE PARTS (Use & Care Guide)
2	4317916 Whirlpool Air Conditioner Compressor
3	WP1161170 Whirlpool Air Conditioner Overload
5	Spring, Overload
6	Gasket, Nut
7	Grommet
8	Harness, Wiring (Compressor)
9	Clip, Compressor
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
16	Wheel, Blower
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Evaporator (4) Condenser (4)
23	Tube, Flow Divider
24	Tube, Wet Loop
25	Tube, Outlet (Includes No. 26)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp (2)
31	WPW10339879 Whirlpool Wire Tie
33	Tube, Suction (Includes 41, 42, and 43)
34	Insulation, Suction Tube
36	WP854334 Whirlpool Air Conditioner Sealing Strip
39	Tube, Discharge
40	Base
41	Tube, Flow Divider
42	Tube, Outlet (Bottom)
43	Tube, Outlet (Top)
