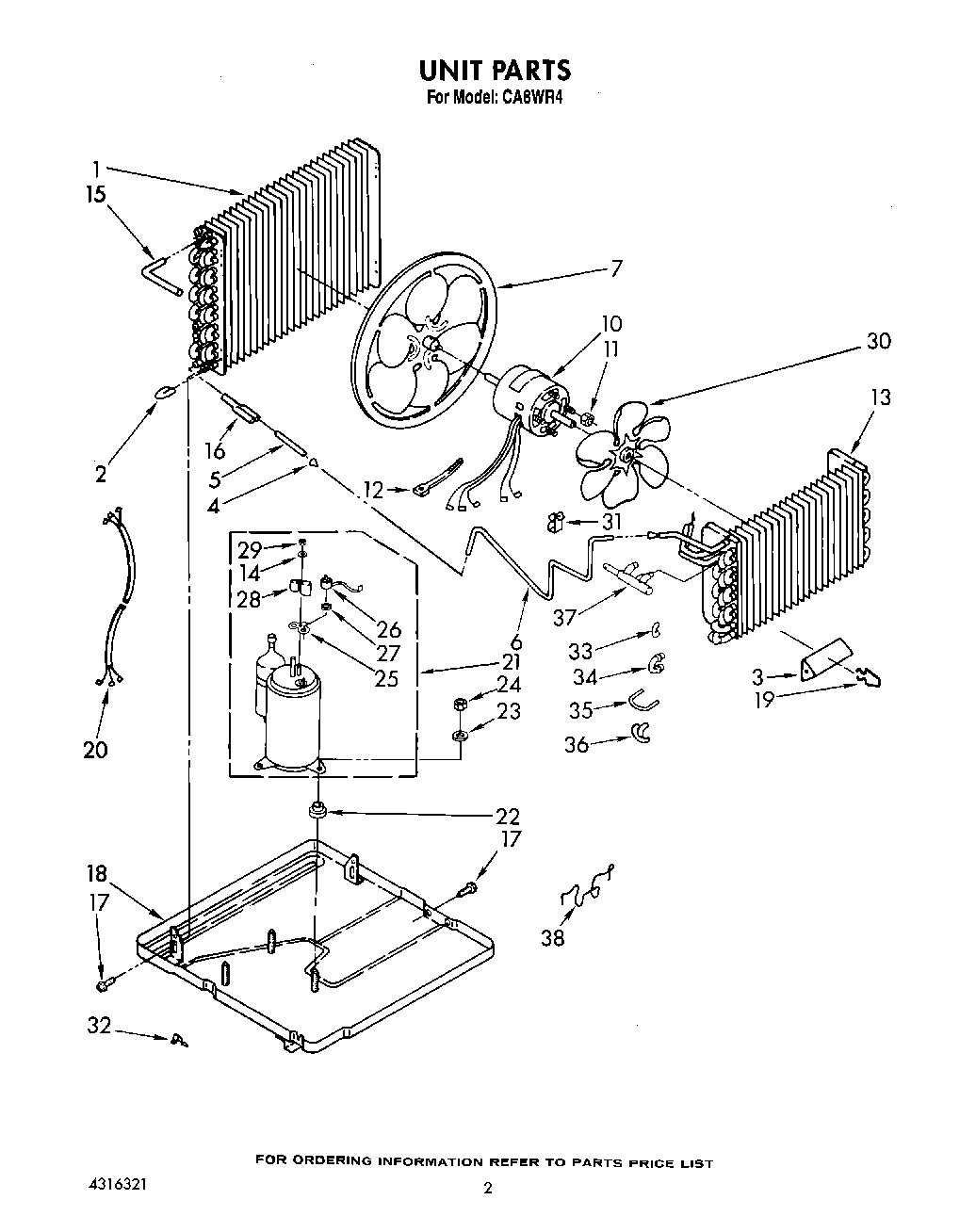

CA8WR4 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Guide, Use/Care
	Wiring Diagram
	Instructions, Installation
	Sheet, Tech
	List, Repair Parts
1	Condenser
3	Anticipator, Temperature
4	Strainer
5	Tube, Outlet (Includes Illus. 24)
6	Tube, Restrictor
7	Blade, Condenser Fan
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Tube, Flow Divider
17	Screw, Repair
17	WP489069 Whirlpool Compactor Screw
18	Base
19	Clip, Anticipator
20	Harness, Wiring
21	4317916 Whirlpool Air Conditioner Compressor
22	Grommet
23	WP120393 Whirlpool Washer Assembly
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Blade, Fan (Evaporator)
31	Clamp, Wiring
32	Clamp, Tube (2)
33	Bend, Return Condenser (1)
34	Bend, Return Condenser (10)
35	Bend, Return Condenser (4)
36	Bend, 3-Way
37	Tube, Maniflod
38	Clip, Mtg. (2) (Base to Front)
