CA8WR4 04 – CABINET
Written by
in

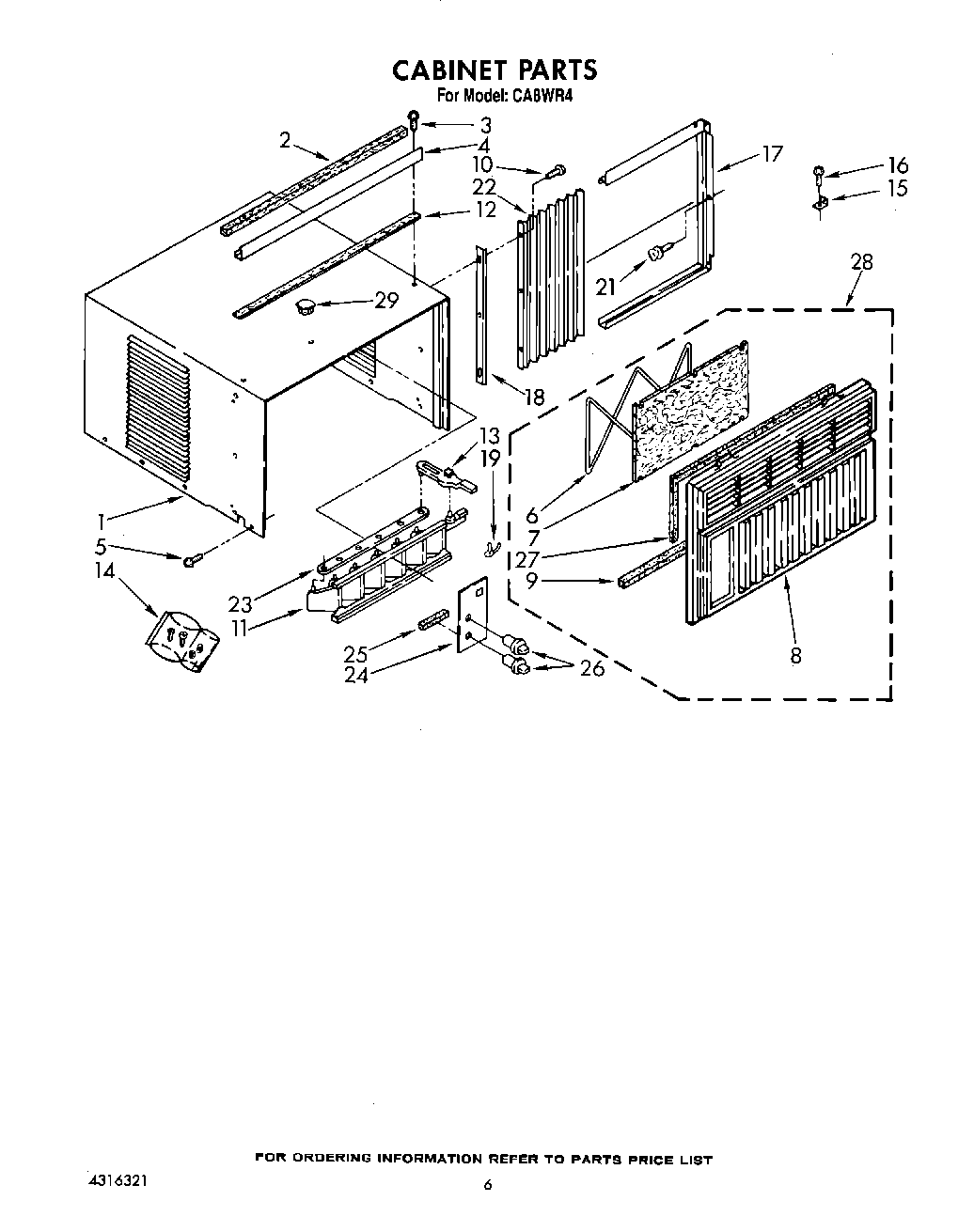

CA8WR4 04 – CABINET
Products
Position
Product
1
Cabinet
2
Gasket, Meeting Rail
3
WP308685 Whirlpool Microwave Screw
4
Channel, Top Mounting
5
WP489069 Whirlpool Compactor Screw
6
Retainer, Filter
7
Filter
8
Front
9
Seal, Front
10
Screw, 8 x 7/16
11
Louver, Vertical
12
Strip, Seal
13
Handle, Louver
14
Bag, Accessory
15
Bracket
16
Screw, Wood 8-15 x .750
17
Housing, Curtain L.S.
17
Housing, Curtain (R.S.)
18
Retainer, Curtain
19
Detent Spring (2)
21
Thumbscrew (2)
22
Curtain (2)
23
Link, Louver
24
Plate, Escutcheon
25
Spacer, Escutcheon Plate (3)
26
Knob, Control (3)
27
Seal, Top & Sides
28
Front, Cabinet
29
Cover, Hole
←
