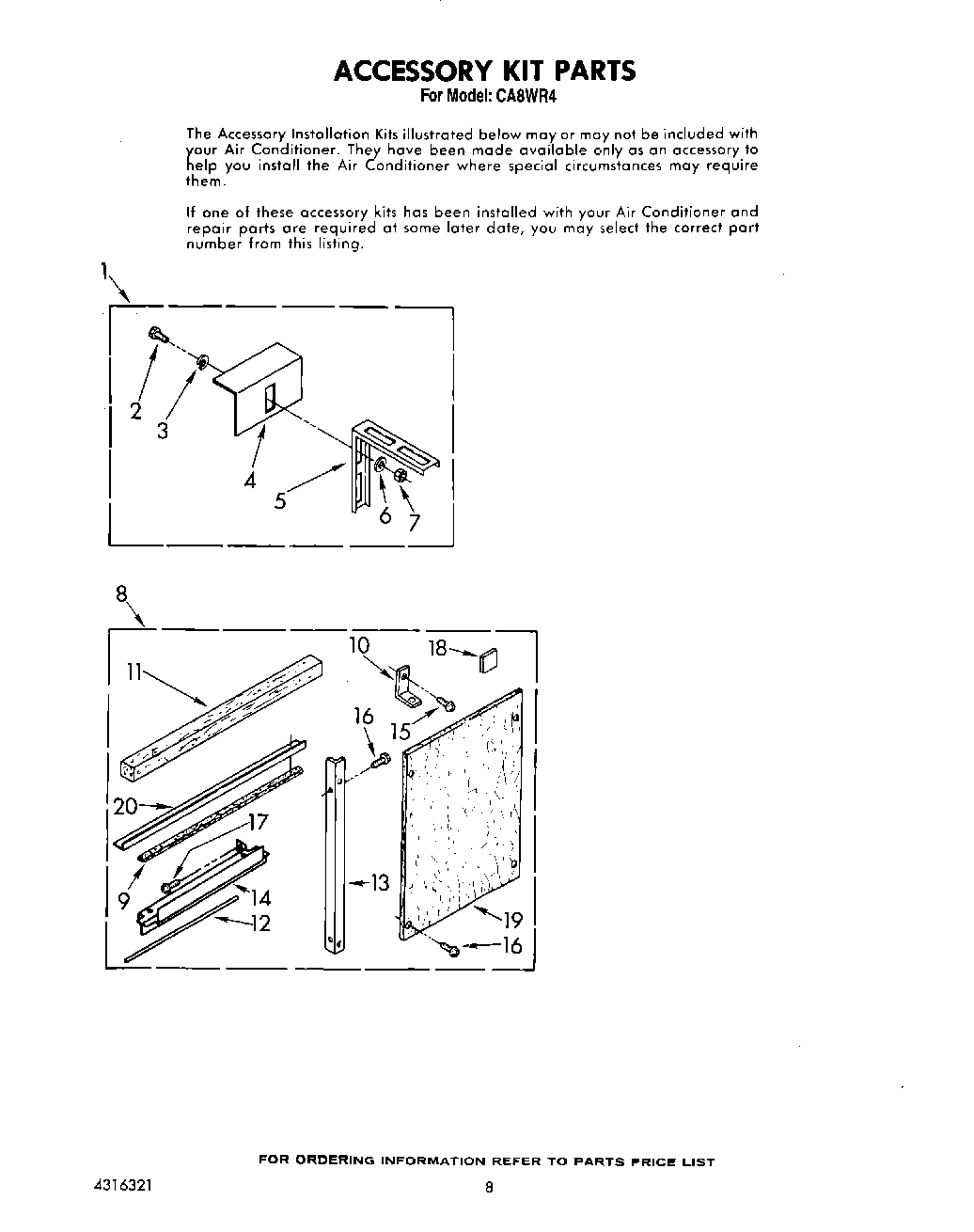

CA8WR4 06 – ACCESSORY KIT

CA8WR4 06 – ACCESSORY KIT

Written by

in

CA8WR4 06 – ACCESSORY KIT

Products

PositionProduct
1Kit, Outside Sill Bracket
2Bolt, 1/4 x 3/4 (6)
3WP120393 Whirlpool Washer Assembly
4Bracket, Sill Mounting (2)
5Bracket, Rail Support (2)
6Lockwasher (6)
7Nut, Hex (6)
8Kit, Economy Installation
9Strip, Seal
10Bracket
11Gasket, Meeting Rail
12212643 Whirlpool Refrigerator Permagum Sealer
13Angle, Side (2)
14Bracket, R.S.
14Bracket, L.S.
15Screw, Wood 8-15 x .750
16Screw, Repair
17WP965173 Whirlpool Dishwasher Screw
18Spacer, Block (4)
19Board, Filler, (2)
20Instructions, Installation (Outside Sill Kit)
20Channel, Top
20Instructions, Installation (Economy Window Mounting Kit)
