CA8WR41 01 – UNIT, LITERATUREadmin2025-04-26T12:10:27+00:00CA8WR41 01 – UNIT, LITERATURE
Products

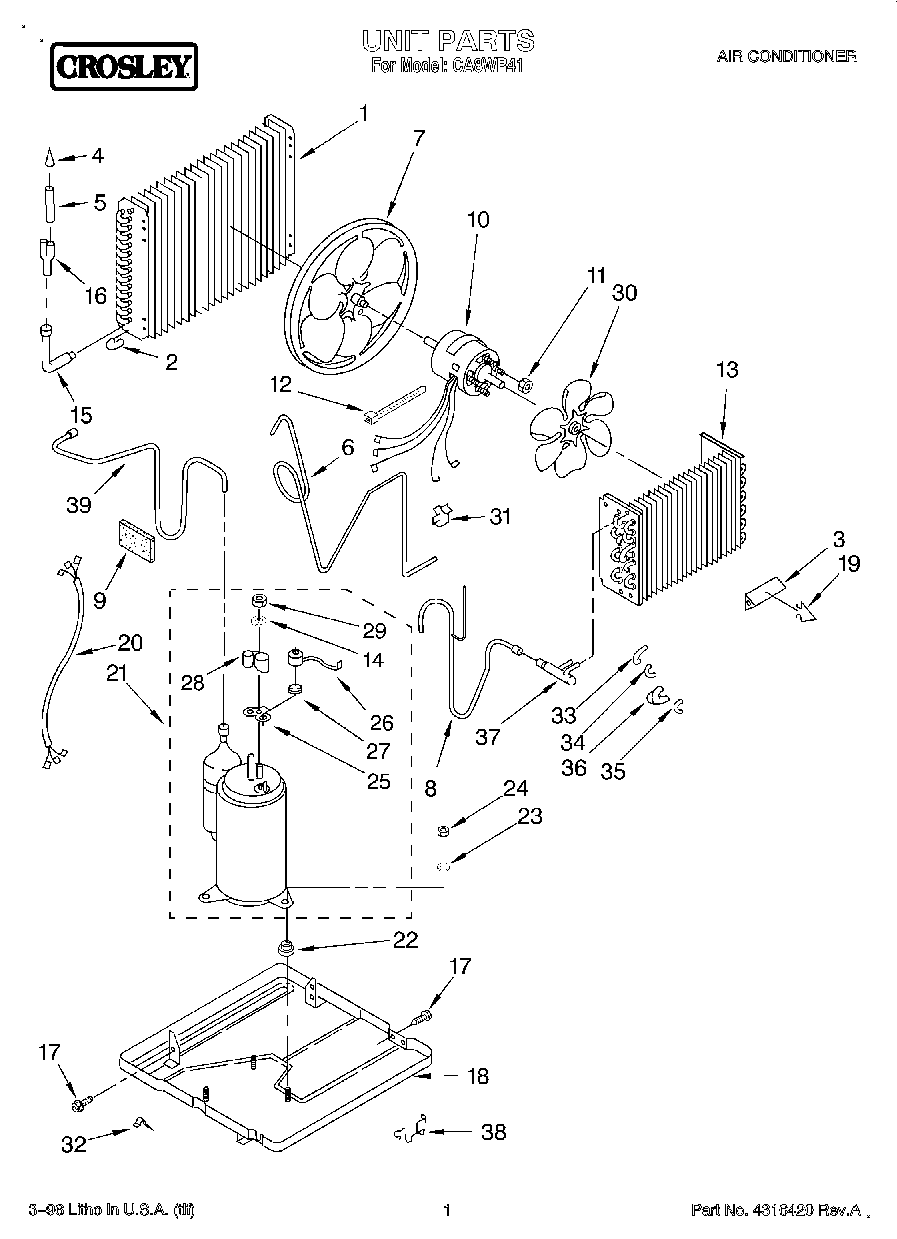

| Position | Product |
|---|
| Instructions, Installation |
| Sheet, Tech |
| Guide, Use/Care |
| Wiring Diagram |
| 1 | Condenser |
| 3 | Anticipator, Temperature |
| 4 | Strainer |
| 5 | Tube, Outlet (Includes Illus. 24) |
| 6 | Tube, Restrictor |
| 7 | Blade, Fan (Condenser) |
| 8 | Tube, Suction |
| 9 | Seal, Anti-Rub |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 12 | WPW10339879 Whirlpool Wire Tie |
| 13 | Evaporator |
| 14 | Gasket, Nut |
| 15 | Tube, Connecting |
| 16 | Tube, Flow Divider |
| 17 | Screw, Repair |
| 17 | WP489069 Whirlpool Compactor Screw |
| 18 | Base |
| 19 | Clip, Anticipator |
| 20 | Harness, Wiring |
| 21 | 4317916 Whirlpool Air Conditioner Compressor |
| 22 | Grommet |
| 23 | WP120393 Whirlpool Washer Assembly |
| 24 | Nut, Hex (4) |
| 25 | WP950035 Whirlpool Cover Gasket |
| 26 | WP1161170 Whirlpool Air Conditioner Overload |
| 27 | Spring, Overload |
| 28 | WP950036 Whirlpool Cover Assembly |
| 29 | WP950027 Whirlpool Mounting Nut |
| 30 | Blade, Fan (Evaporator) |
| 31 | Clamp, Wiring |
| 32 | Clamp, Tube (2) |
| 33 | Bend, Return Condenser (1) |
| 34 | Bend, Return Condenser (10) |
| 35 | Bend, Return Condenser (4) |
| 36 | Bend, 3-Way |
| 37 | Tube, Maniflod |
| 38 | Clip, Mtg. (2) (Base to Front) |
| 39 | Tube, Discharge |
