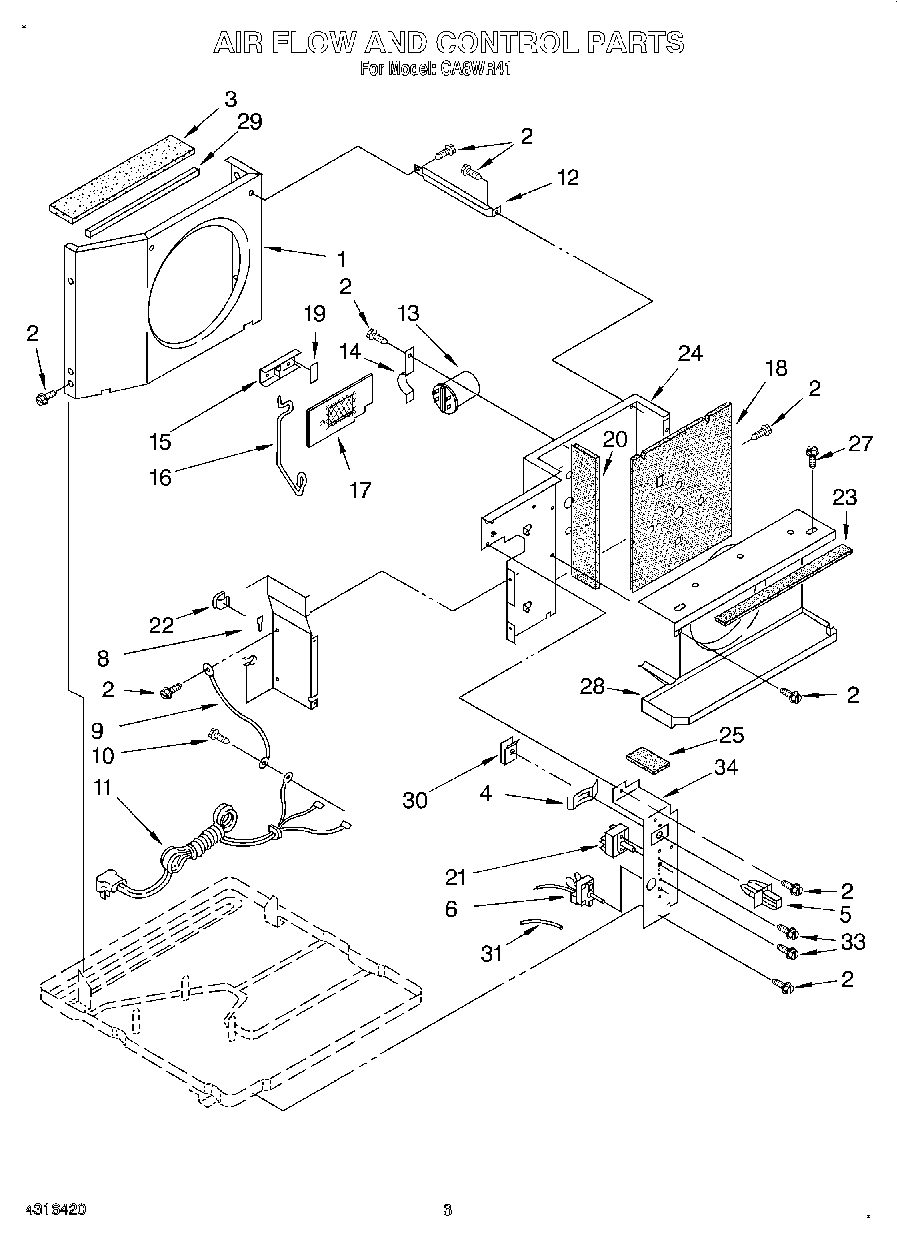

CA8WR41 02 – AIR FLOW AND CONTROLadmin2025-04-26T12:09:05+00:00CA8WR41 02 – AIR FLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Shroud, Condenser |
| 2 | WP489069 Whirlpool Compactor Screw |
| 3 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 4 | Spring, Retainer |
| 5 | Actuator, Door |
| 6 | Thermostat |
| 8 | Extension, Dividing Wall |
| 9 | Wire, Ground |
| 10 | WPW10141604 Whirlpool Screw |
| 11 | Cord, Appliance |
| 12 | Support, Unit |
| 13 | Capacitor, Running |
| 14 | Bracket, Capacitor |
| 15 | Door, Exhaust |
| 16 | Arm, Door |
| 17 | Screen, Insulation Assembly |
| 18 | Insulation (Back, Dividing Wall) |
| 19 | Spacer |
| 20 | Insulation (Side, Dividing Wall) |
| 21 | Switch, Rotary |
| 22 | Clip, Retainer |
| 23 | Insulation, Evaporator Shroud |
| 24 | Wall, Dividing |
| 25 | Insulation, Top (Control Panel) |
| 27 | WP488729 Whirlpool Refrigerator Door Screw |
| 28 | Shro\ud,\ Evaporator (Includes Item 11) |
| 29 | Seal, Condenser Top |
| 30 | Clip, Exhaust Door Linkage |
| 31 | Insulation, Sleeve |
| 33 | Screw, 6-32 x .175 |
| 34 | Panel, Control |
