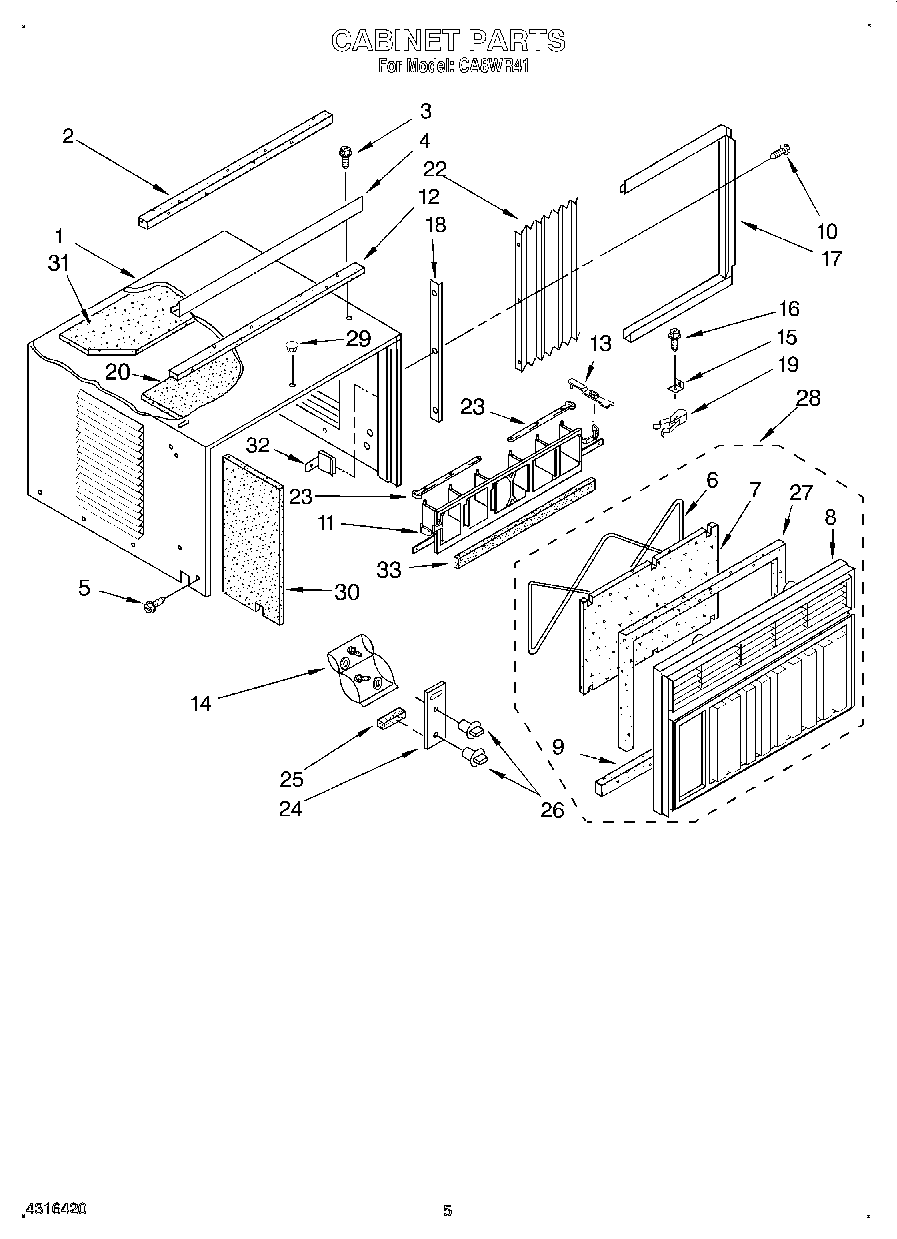

CA8WR41 03 – CABINET

CA8WR41 03 – CABINET

Written by

in

CA8WR41 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP308685 Whirlpool Microwave Screw
4Channel, Top Mounting
5WP489069 Whirlpool Compactor Screw
6Retainer, Filter
7Filter
8Front
9Seal, Front
10Screw, 8-18 x 3/8
11Louver, Vertical (Includes Illus. 12, 13, 14 and 27)
12Strip, Seal
13Handle, Vertical Louver (2)
14Bag, Accessory
15Bracket
16Screw, Wood 8-15 x .750
17Housing, Curtain R.S.(Includes No.8)
17Housing, Curtain L.S. (Includes No.8)
18Retainer, Curtain
19Spring, Detent (2)
20Insul. Cabinet Top
22Curtain (2)
23Link, Vertical Louver (2)
24Plate, Escutcheon
25Spacer, Escutcheon Plate (3)
26Knob, Control (2)
26Knob, Control (2) (Brown W/ White Indicator)
27Seal, Top & Sides
28Front, Cabinet
29Cover, Hole
30Insul. Cabinet (Right, Side)
30Insul. Cabinet (Left Side)
31Insul. Cabinet
32Clip, Vertical Louver
33Seal, Vertical Louver
