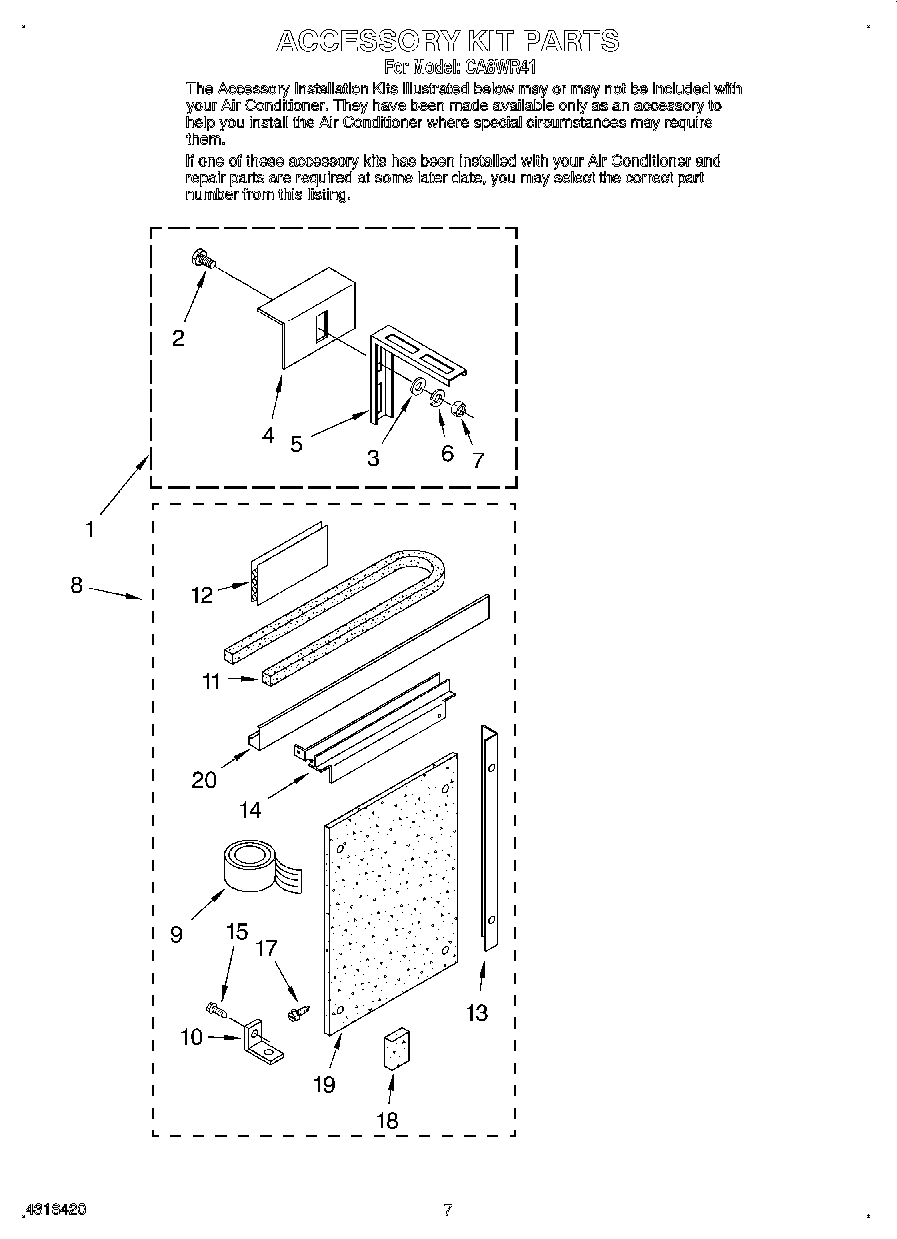

CA8WR41 05 – ACCESSORY KITS

Products

PositionProduct
1Kit, Outside Sill Bracket
2Bolt, 1/4 x 3/4 (6)
3WP120393 Whirlpool Washer Assembly
4Bracket, Sill Mounting (2)
5Bracket, Rail Support (2)
6Lockwasher (6)
7Nut, 1/4-20 (6)
8Kit, Economy Installation
9Strip, Seal
10Bracket
11Seal, Meeting Rail
12212643 Whirlpool Refrigerator Permagum Sealer
13Angle, Side (2)
14Bracket, L.S.
14Bracket, R.S.
15Screw, Wood
17WP965173 Whirlpool Dishwasher Screw
18Spacer, Block (4)
19Board, Filler
20Instructions, Installation (Outside Sill Kit)
20Channel, Top
20Instructions, Installation (Economy Window Mounting Kit)
