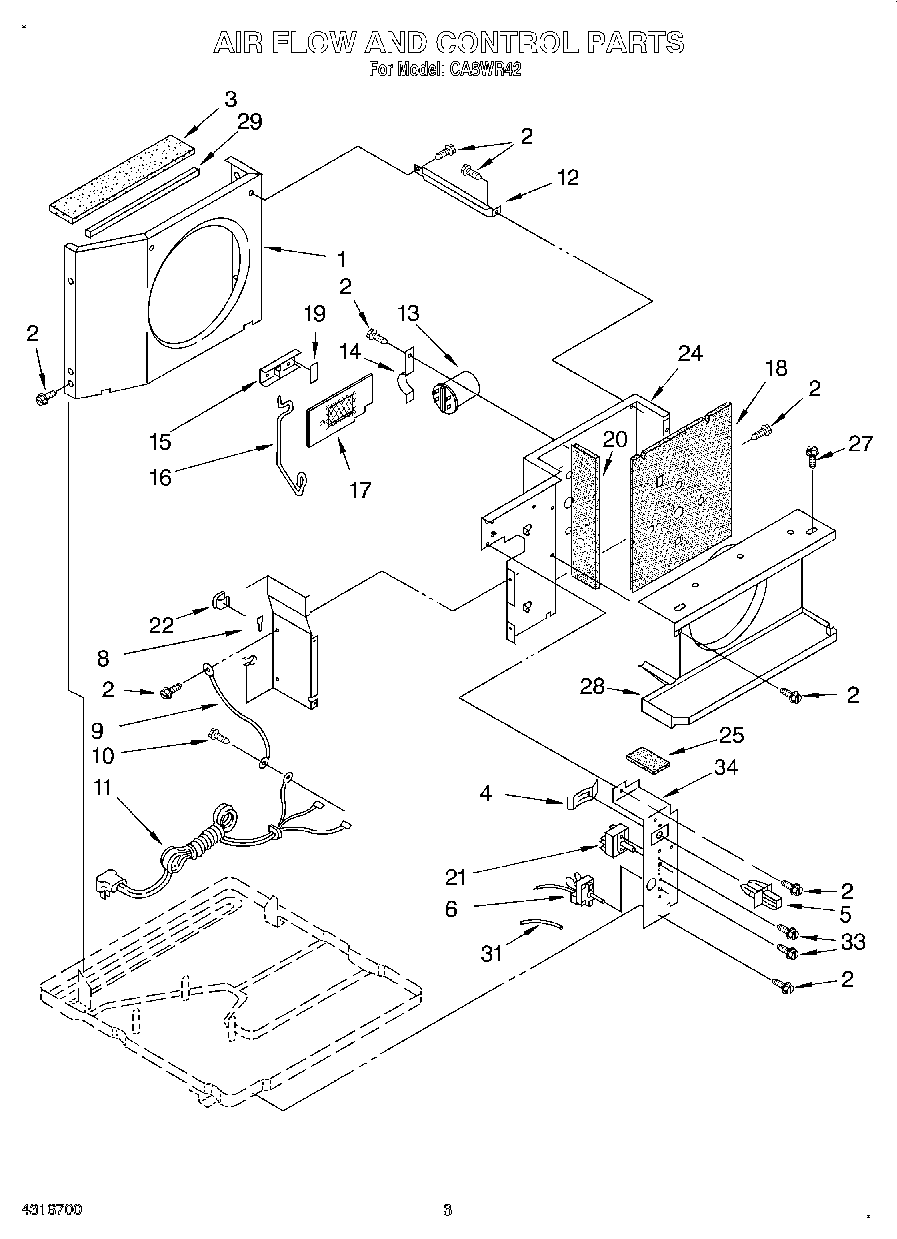

CA8WR42 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
3	WP854334 Whirlpool Air Conditioner Sealing Strip
4	Spring, Retainer
5	Actuator, Door
6	Thermostat
8	Extension, Dividing Wall
9	Wire, Ground
10	WPW10141604 Whirlpool Screw
11	Cable, Appliance
12	Support, Unit
13	Capacitor, Running
14	Bracket, Capacitor
15	Door, Exhaust
16	Arm, Door
17	Screen, Insulation Assembly
18	Insulation (Back, Dividing Wall)
19	Spacer
20	Insulation (Side, Dividing Wall)
21	Switch, Rotary
22	Clip, Retainer
24	Wall, Dividing
25	Insulation, Top (Control Panel)
27	WP488729 Whirlpool Refrigerator Door Screw
28	Shroud, Evaporator
29	Seal, Condenser Top
31	Insulation, Sleeve
33	Screw, 6-32 x .175
34	Panel, Control
