CA8WRK0 01 – UNIT, LITERATURE
Written by
in

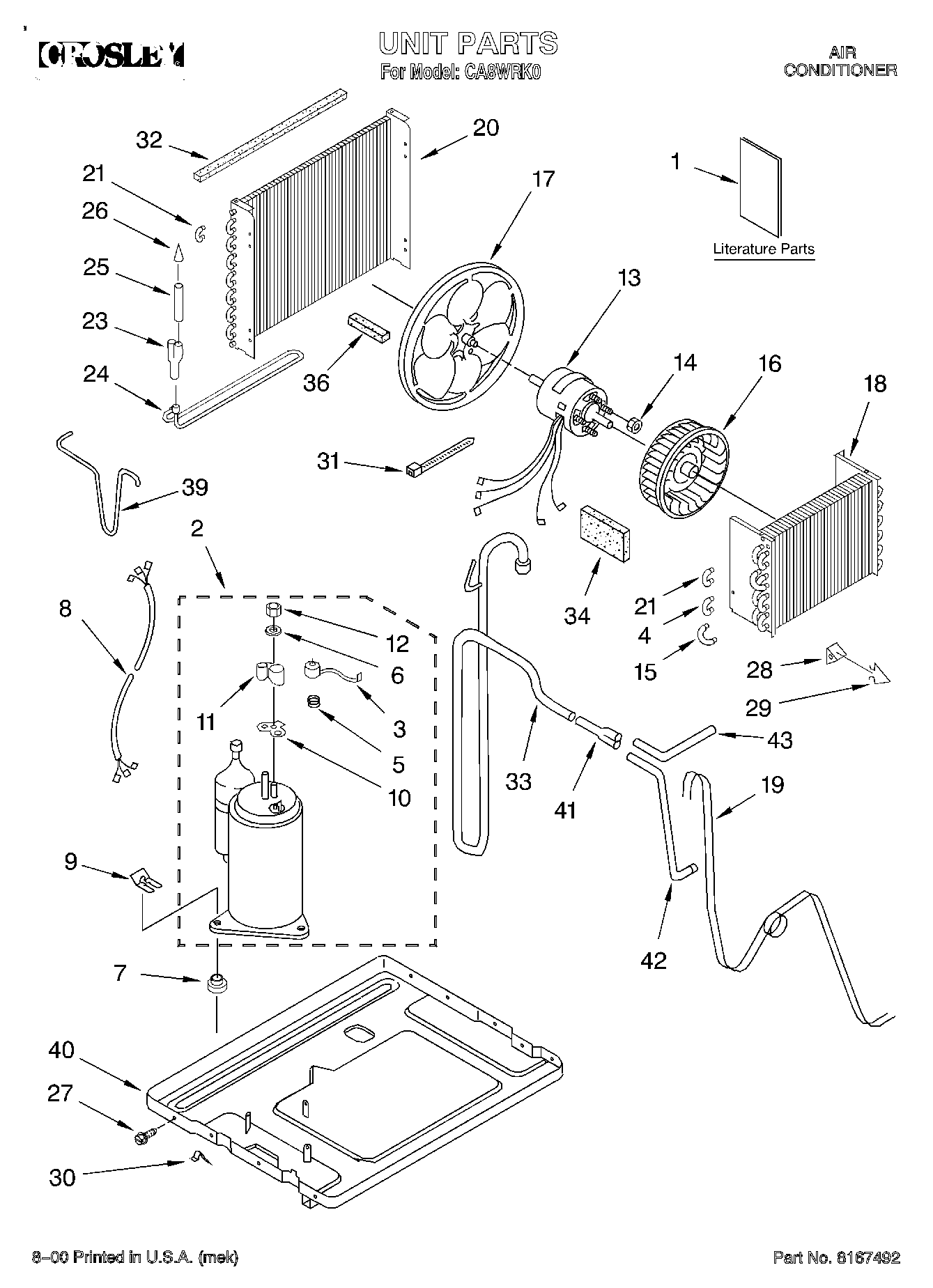

CA8WRK0 01 – UNIT, LITERATURE
Products
Position
Product
1
Use & Care Guide
1
LITERATURE PARTS (Wiring Diagram)
1
Energy Guide
2
Compressor
3
WP1161170 Whirlpool Air Conditioner Overload
4
Bend, Return Condenser (4)
5
Spring, Overload
6
Gasket, Nut
7
Grommet
8
Wiring Harness, Compressor
9
Clip, Compressor
10
WP950035 Whirlpool Cover Gasket
11
WP950036 Whirlpool Cover Assembly
12
WP950027 Whirlpool Mounting Nut
13
Motor, Fan
14
WP488130 Whirlpool Air Conditioner Nut
15
Bend, Return (5)
16
Wheel, Blower
17
Blade, Fan (Condenser)
18
Evaporator
19
Tube, Restrictor
20
Condenser
21
Bend, Return Evaporator (4) Condenser (4)
23
Tube, Flow Divider
24
Tube, Wet Loop
25
Tube, Outlet (Includes No. 26)
26
Strainer
27
Screw, 8 x 3/8
28
Anticipator, Temperature
29
Clip, Anticipator
30
Clamp (2)
31
WPW10339879 Whirlpool Wire Tie
32
Seal
33
Tube, Suction
34
Insulation, Suction Tube
36
WP854334 Whirlpool Air Conditioner Sealing Strip
39
Tube, Discharge
40
Base
41
Tube, Flow Divider
42
Tube, Outlet (Top)
43
Tube, Outlet (Bottom)
←
