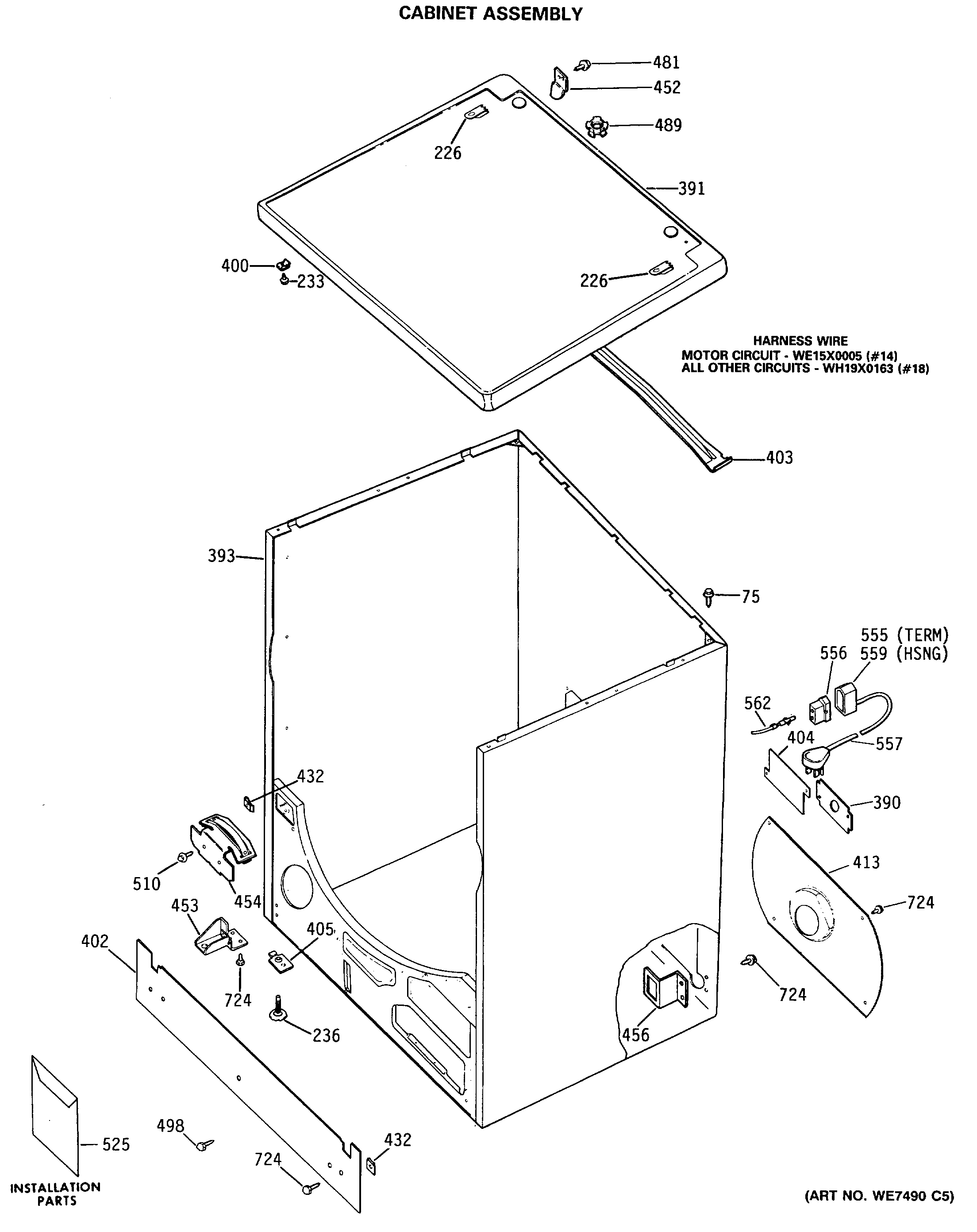

CADG265RAL CABINET ASSEMBLY

CADG265RAL CABINET ASSEMBLY

Written by

in

CADG265RAL CABINET ASSEMBLY

Products

Position	Product
233	GEN WZ04X0236
236	WE1M642 GE Washer Leveling Leg
390	GEN WE01X1175
391	GEN WE20X0707
391	GEN WE20X0706
391	GEN WE20X0705
393	CABINET ASM WH
393	CABINET ASM HA
393	CABINET ASM AD
400	GEN WE02X0134
402	GEN WE20X0347
403	GEN WE14X0037
404	GEN WE01X0425
405	GEN WE01X0468
413	GEN WE14X0212
432	GEN WL02X0071
452	GEN WE01X1094
453	GEN WE13X0080
454	GEN WE25X0060
456	WE1X617 GE Pipe Clamp
481	GEN WH02X0967
489	GEN WH01X2572
510	WE2X263D GE Screw Package 12 C92
525	GEN WE25X0098
555	GEN WB17X5053
556	GEN WH12X0497
557	GEN WE08X0031
559	GEN WH12X0538
562	GEN WB17X5054
724	SCREW 10-16 X 1/2" HEX
