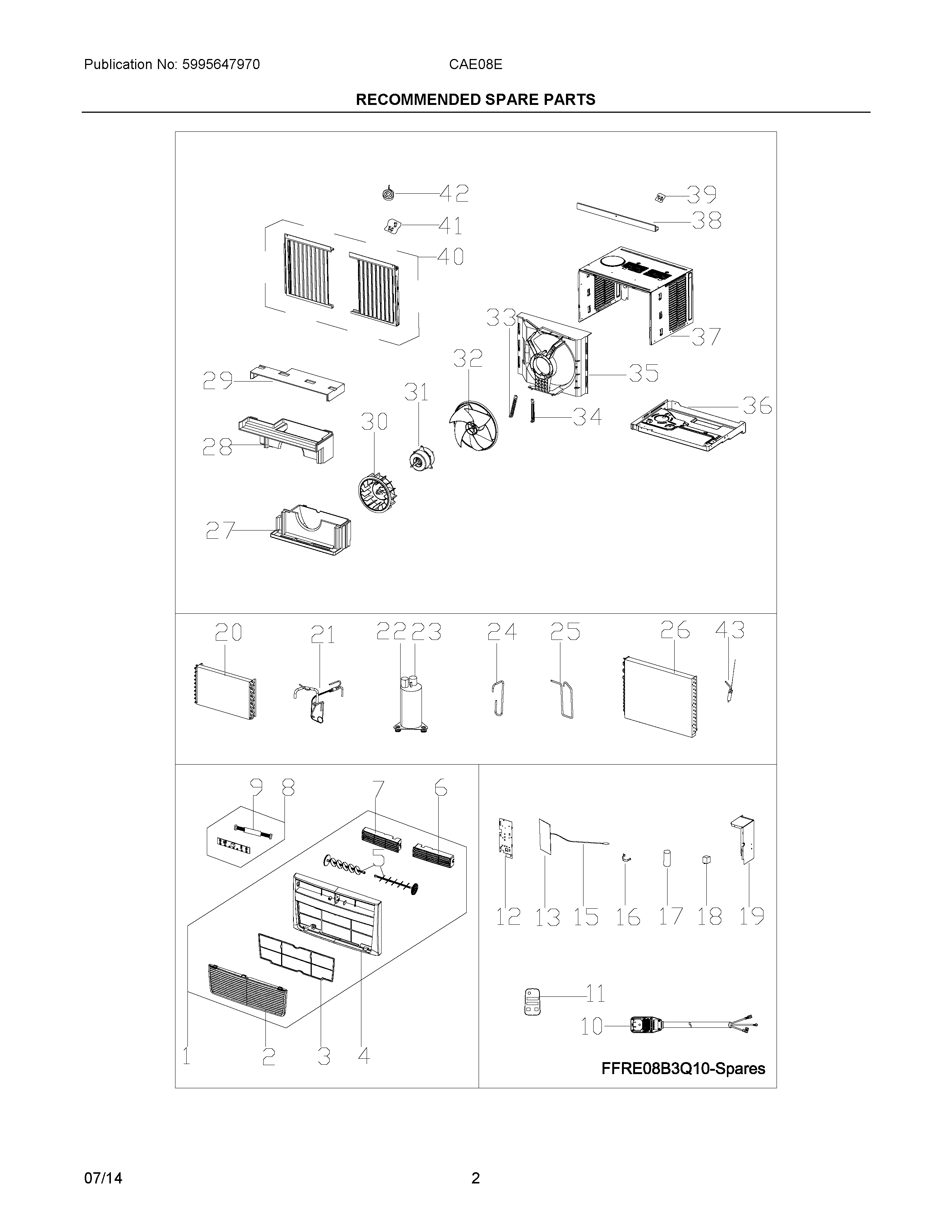

CAE08EHQ10 02 – RECOMMENDED SPARE PARTS

CAE08EHQ10 02 – RECOMMENDED SPARE PARTS

Written by

in

CAE08EHQ10 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304496514
2Panel,front grille ,tilt-out
3Filter,air ,plastic frame
4WCI 5304496515
5WCI 5304496516
6WCI 5304487640
7WCI 5304487641
8PC Board,display/input
9Wire,connecting
10Power Cord,electric ,LCDI
11Remote Control,transmitter
125304495908 Frigidaire Cover Assembly
13WCI 5304496240
155304504724 Frigidaire Sensor
16Strap,capacitor clamp
175304476066 Frigidaire Air Conditioner Capacitor
18Ionizer,anion generator
19WCI 5304495911
20Evaporator,with ,capillary tube
21Tube,capillary
22WCI 5304495940
23WCI 5304495941
24WCI 5304495942
25WCI 5304495943
26WCI 5304495944
27WCI 5304495926
28WCI 5304495927
29WCI 5304495928
30Blower Wheel,centrifugal fan
31WCI 5304495945
325304483089 Frigidaire Blade Fan
33Support,motor mount ,left
34Support,motor mount ,right
35Shroud,condenser/fan
36WCI 5304495915
37WCI 5304495916
38Rail,shutter track ,top
39Screw Kit,top rail mount
405304495917 Frigidaire Air Conditioner Window Filler Kit
415304491953 Frigidaire Air Conditioner Hardware
42Seal kit,foam ,sash filler
435304476201 Frigidaire Air Conditioner Filter Drier
