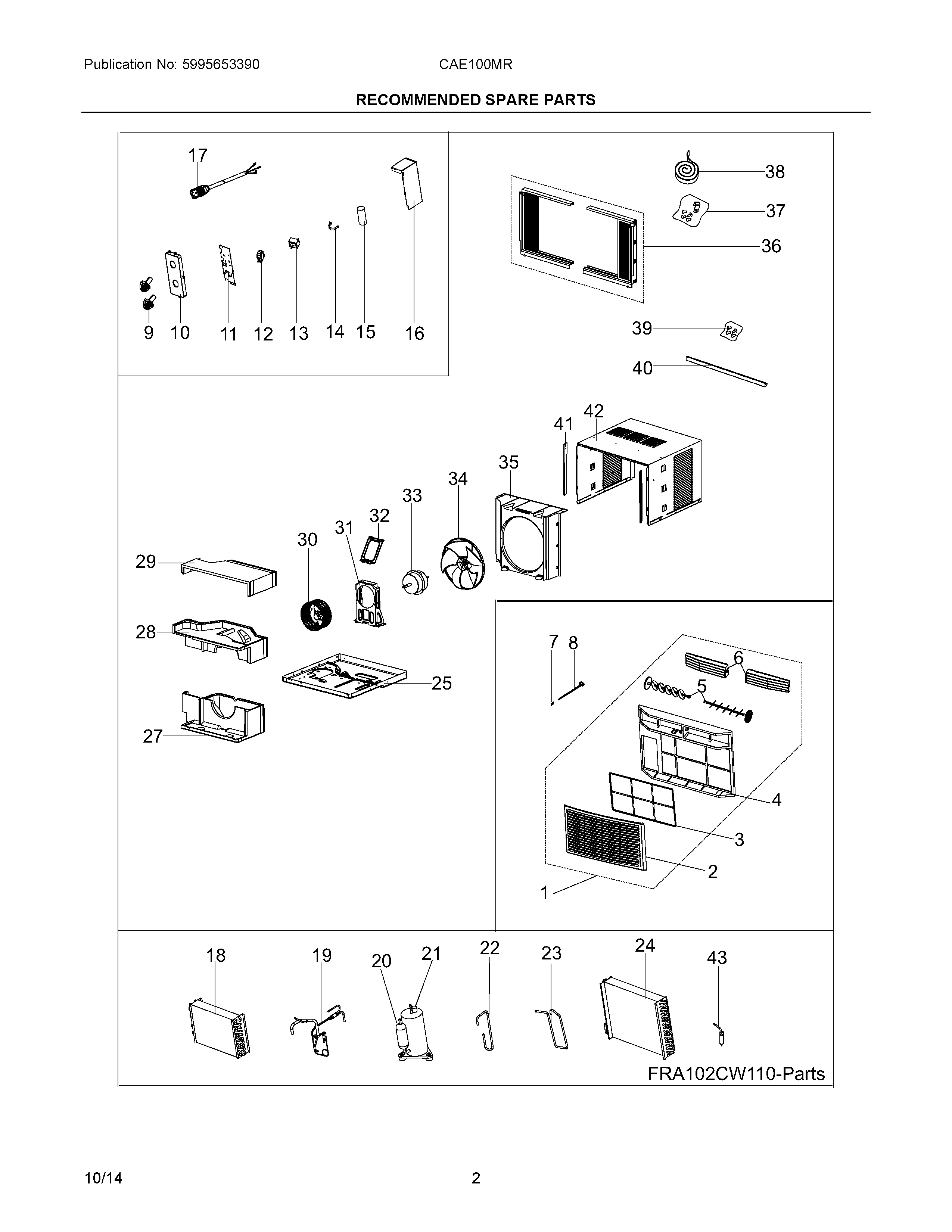

CAE100MR11 02 – RECOMMENDED SPARE PARTS

CAE100MR11 02 – RECOMMENDED SPARE PARTS

Written by

in

CAE100MR11 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304492068
2· Panel,grille ,front
3FILTER
4WCI 5304492069
5· Louver,vertical
6· Louver,horizontal
75304476179 Frigidaire Air Conditioner Sleeve
85304476178 Frigidaire Air Conditioner Door Assembly
9Knob Assembly,control ,w/spring
10Control Panel,with overlay
11Cover,control box
12Sensor Assembly,temperature
13Switch,master ,rotary
14Strap,capacitor clamp
155304471294 Frigidaire CAPACITOR
16WCI 5304492004
175304476180 Frigidaire Power Cord Air Conditioner
18Evaporator,with ,capillary tube
19· Tube,capillary
20Compressor,with overload
21· Overload Protector,compressor
22Tube,suction
23Tube,discharge
24WCI 5304491952
25Base,unit chassis
27Scroll,blower housing ,bottom
28Scroll,blower housing ,middle
29Scroll,blower housing ,top
305304485443 Frigidaire Air Conditioner Blower Wheel
31Support,motor mount ,left
32Support,motor mount ,right
33Motor,fan
345304476059 Frigidaire Air Conditioner Fan Blade
35Shroud,condenser fan
36Window Filler Kit,slider panels
375304491953 Frigidaire Air Conditioner Hardware
38Seal kit,foam ,sash filler
39Screw Kit,top rail mount
40Rail,shutter track ,top
41Retainer,shutter ,cabinet sides
42Cabinet,wrapper/sleeve
435304476201 Frigidaire Air Conditioner Filter Drier
