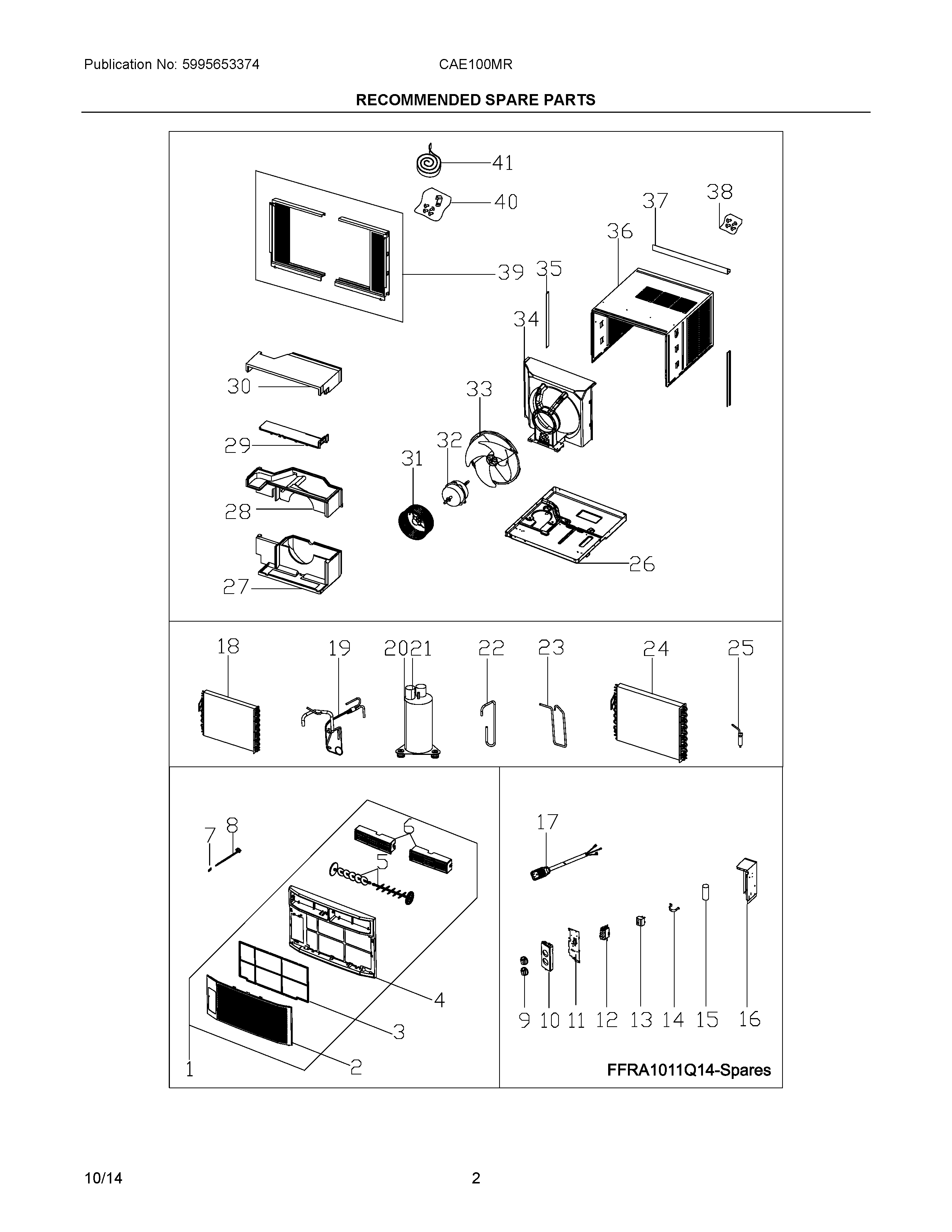

CAE100MR17 02 – RECOMMENDED SPARE PARTS

CAE100MR17 02 – RECOMMENDED SPARE PARTS

Written by

in

CAE100MR17 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304496249
2· Panel,grille ,front
3FILTER
4· Frame,front assembly
5· Louver,vertical
6· Louver,horizontal
75304476179 Frigidaire Air Conditioner Sleeve
85304476178 Frigidaire Air Conditioner Door Assembly
9Knob Assembly,control ,w/spring
10Control Panel,with overlay
11Cover,control box
12Sensor Assembly,temperature
13Switch,master ,rotary
14Strap,capacitor clamp
155304471300 Frigidaire Capacitor
16WCI 5304492004
175304476180 Frigidaire Power Cord Air Conditioner
18WCI 5304495096
19WCI 5304495097
20Compressor,w/overload
21WCI 5304495098
22WCI 5304495099
23WCI 5304495100
24WCI 5304491952
255304476201 Frigidaire Air Conditioner Filter Drier
26WCI 5304495101
27Scroll,blower housing ,bottom
285304495102 Frigidaire Scroll
29WCI 5304495103
30Scroll,blower housing ,top
315304485443 Frigidaire Air Conditioner Blower Wheel
325304493236 Frigidaire Air Conditioner Motor
335304476059 Frigidaire Air Conditioner Fan Blade
34WCI 5304495104
35Retainer,shutter ,cabinet sides
36Cabinet,wrapper/sleeve
37Rail,shutter track ,top angle
38Screw Kit,top rail mount
395304476200 Frigidaire Air Conditioner Window Filler Kit
405304491953 Frigidaire Air Conditioner Hardware
41Seal kit,foam ,sash filler
