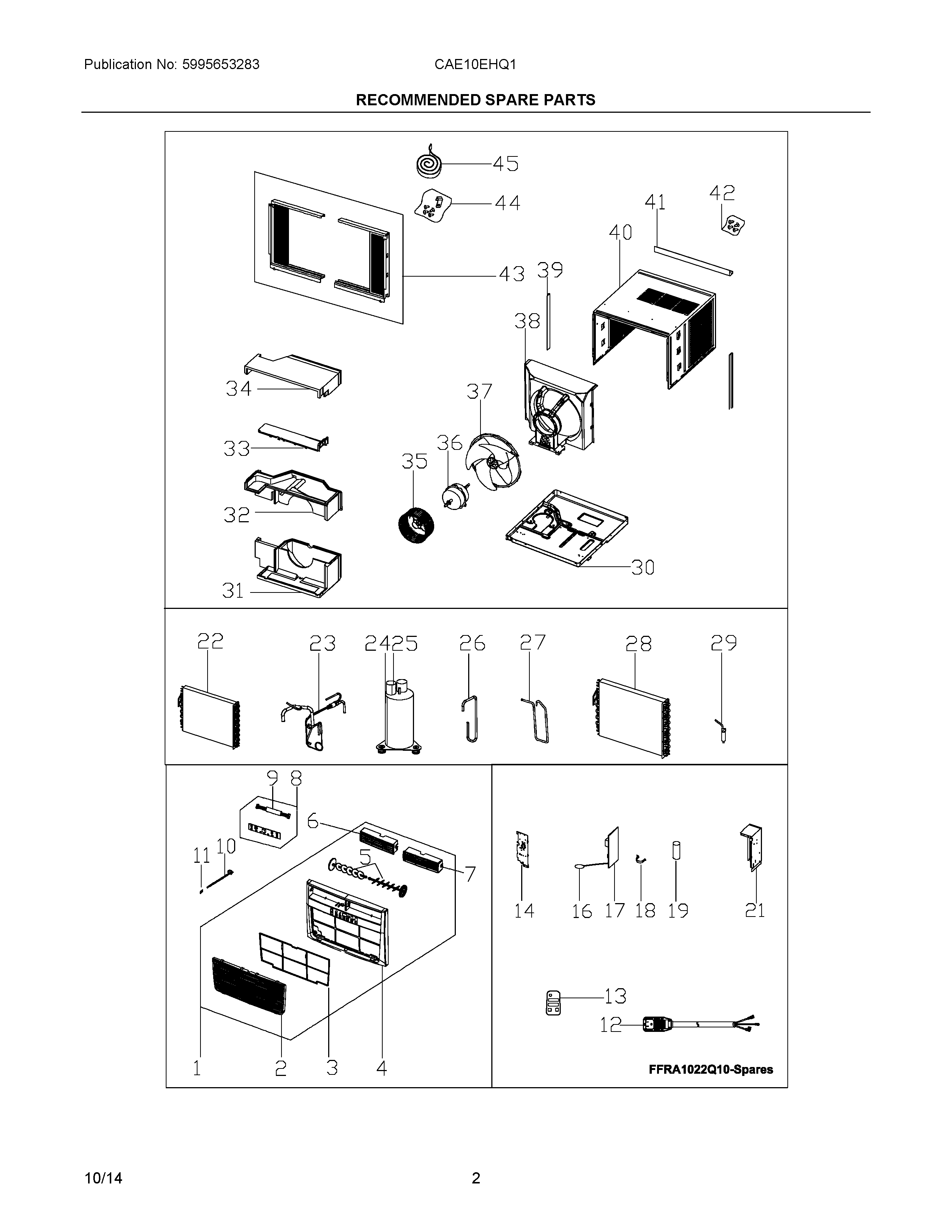

CAE10EHQ15 02 – RECOMMENDED SPARE PARTS

CAE10EHQ15 02 – RECOMMENDED SPARE PARTS

Written by

in

CAE10EHQ15 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304496488
25304476793 Frigidaire Air Conditioner Panel
35304535830 Frigidaire Filter
4WCI 5304496489
5Louver,vertical
6Louver,horizontal
7LOUVER,HORIZONTAL,RIGHT,horizontal
8PC Board,display/input
95304482356 Frigidaire Wire
105304476178 Frigidaire Air Conditioner Door Assembly
115304476179 Frigidaire Air Conditioner Sleeve
125304476180 Frigidaire Power Cord Air Conditioner
13Remote Control,transmitter
14Cover,control box
165304504724 Frigidaire Sensor
17WCI 5304496237
18Strap,capacitor clamp
195304476066 Frigidaire Air Conditioner Capacitor
21WCI 5304492004
22WCI 5304495112
23WCI 5304495113
24WCI 5304493235
25Overload Protector,compressor
26WCI 5304495121
27WCI 5304495122
28WCI 5304476233
295304476201 Frigidaire Air Conditioner Filter Drier
30WCI 5304495101
31Scroll,blower housing ,bottom
325304495102 Frigidaire Scroll
33WCI 5304495103
34Scroll,blower housing ,top
355304485443 Frigidaire Air Conditioner Blower Wheel
365304493236 Frigidaire Air Conditioner Motor
375304476059 Frigidaire Air Conditioner Fan Blade
38WCI 5304495104
39Retainer,shutter ,cabinet sides
40Cabinet,wrapper/sleeve
41Rail,shutter track ,top angle
42Screw Kit,top rail mount
435304476200 Frigidaire Air Conditioner Window Filler Kit
445304491953 Frigidaire Air Conditioner Hardware
45Seal kit,foam ,sash filler
