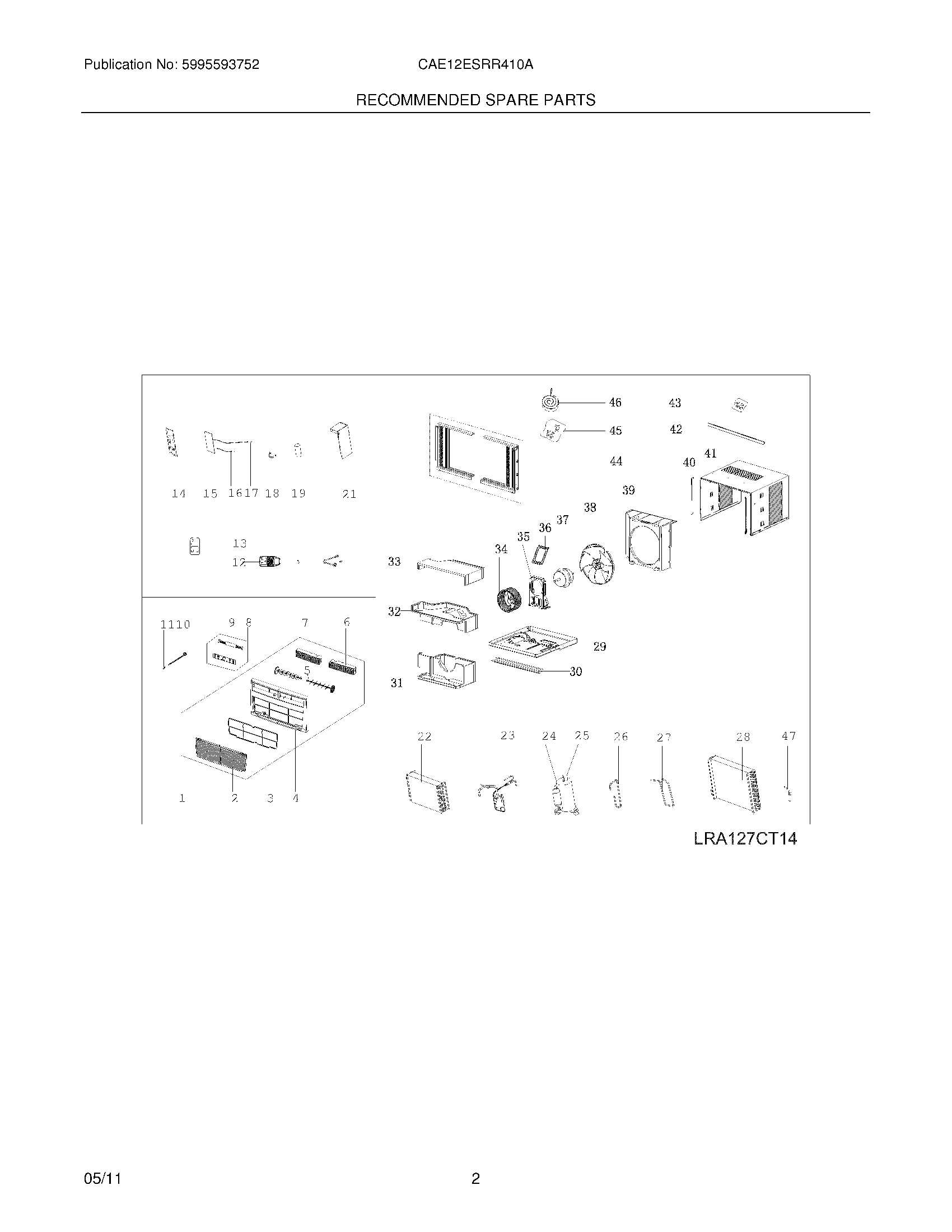

CAE12ESRR410A14 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304482746
2	5304476793 Frigidaire Air Conditioner Panel
3	5304535830 Frigidaire Filter
4	WCI 5304482747
5	Louver,vertical
6	Louver,horizontal
7	LOUVER,HORIZONTAL,RIGHT,horizontal
8	PC Board,display/input
9	5304482356 Frigidaire Wire
10	5304476178 Frigidaire Air Conditioner Door Assembly
11	5304476179 Frigidaire Air Conditioner Sleeve
12	5304476180 Frigidaire Power Cord Air Conditioner
13	Remote Control,transmitter
14	Cover,control box
15	WCI 5304476183
16	5304471275 Frigidaire Air Conditioner Sensor
17	5304476053 Frigidaire Air Conditioner Sensor
18	Strap,capacitor clamp
19	5304476066 Frigidaire Air Conditioner Capacitor
21	WCI 5304476225
22	WCI 5304476230
23	WCI 5304476868
24	WCI 5304476069
25	WCI 5304476296
26	WCI 5304476231
27	WCI 5304476232
28	WCI 5304476233
29	WCI 5304476234
30	WCI 5304476190
31	WCI 5304476191
32	WCI 5304476192
33	WCI 5304476193
34	WCI 5304476058
35	Support,motor mount ,left
36	Support,motor mount ,right
37	WCI 5304476057
38	5304476059 Frigidaire Air Conditioner Fan Blade
39	WCI 5304476196
40	Retainer,shutter ,cabinet sides
41	Cabinet,wrapper/sleeve
42	WCI 5304476843
43	Screw Kit,top rail mount
44	5304476200 Frigidaire Air Conditioner Window Filler Kit
45	WCI 5304472192
46	Seal kit,foam ,sash filler
47	5304476201 Frigidaire Air Conditioner Filter Drier
