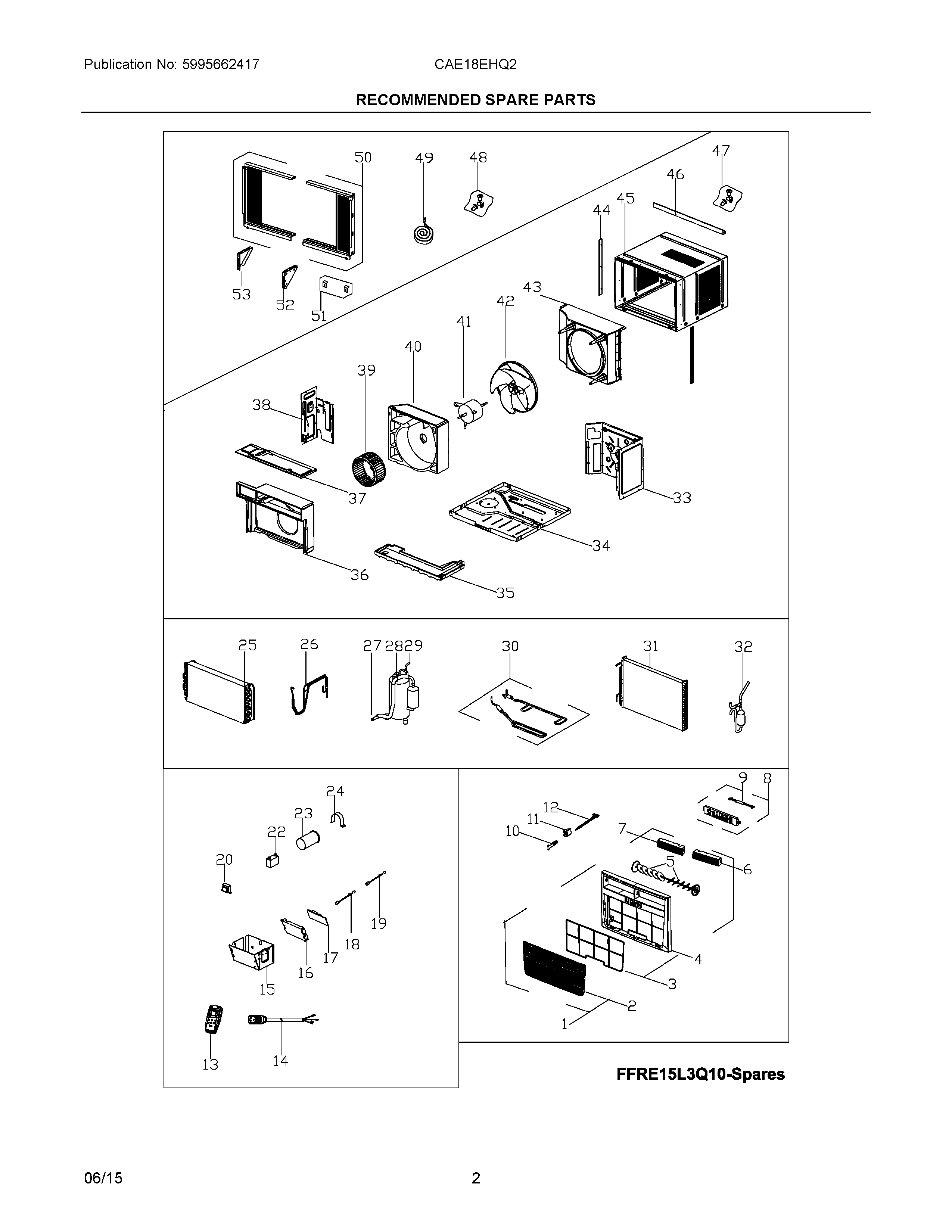

CAE18EHQ23 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304483553
2Panel,front grille ,tilt-out
35304525598 Frigidaire Air Conditioner Filter
4WCI 5304483554
5· Louver,vertical
6· Louver,horizontal ,right
7· Louver,horizontal ,left
85304495622 Frigidaire Air Conditioner PC Board
95304495009 Frigidaire Air Conditioner Wire
105304495010 Frigidaire Air Conditioner Handle
115304476359 Frigidaire Air Conditioner Link Assembly
12Door,vent control ,with lever
13Remote Control,transmitter
145304500885 Frigidaire Air Conditioner Power Cord
155304495623 Frigidaire Box Control
16WCI 5304495029
17CONTROL-ELECTRICAL
185304504724 Frigidaire Sensor
195304512375 Frigidaire Air Conditioner Sensor
205304471063 Frigidaire Air Conditioner Transformer
225304482883 Frigidaire Air Conditioner Capacitor
235304499940 Frigidaire Air Conditioner Capacitor
24WCI 5304500876
255304500890 Frigidaire Air Conditioner Evaporator
265304500891 Frigidaire Air Conditioner Tube
275304495654 Frigidaire Air Conditioner Tube
285304499939 Frigidaire Air Conditioner Compressor
295304500892 Frigidaire Air Conditioner Tube
305304495628 Frigidaire Air Conditioner Tube
315304500893 Frigidaire Air Conditioner Condenser
325304476367 Frigidaire Air Conditioner Filter Drier
33WCI 5304495630
34Base,unit chassis
35Tray,drip pan
36WCI 5304495631
375304495632 Frigidaire Cover
38WCI 5304495633
395304472407 Frigidaire Air Conditioner Blower Wheel
40Scroll,blower housing ,rear
415304499941 Frigidaire Air Conditioner Motor
42BLADE-FAN
435304495634 Frigidaire Air Conditioner Shroud
44Retainer,shutter ,cabinet sides
45Cabinet,wrapper/sleeve
46Rail,shutter track ,top angle
47Screw Kit,top rail mount
48Hardware,mounting ,screws/locks
49Seal kit,foam ,sash & rails
50Window Filler Kit,slider panel
51Bracket,sill angle
52Bracket,mounting ,right window
53Bracket,mounting ,left window
