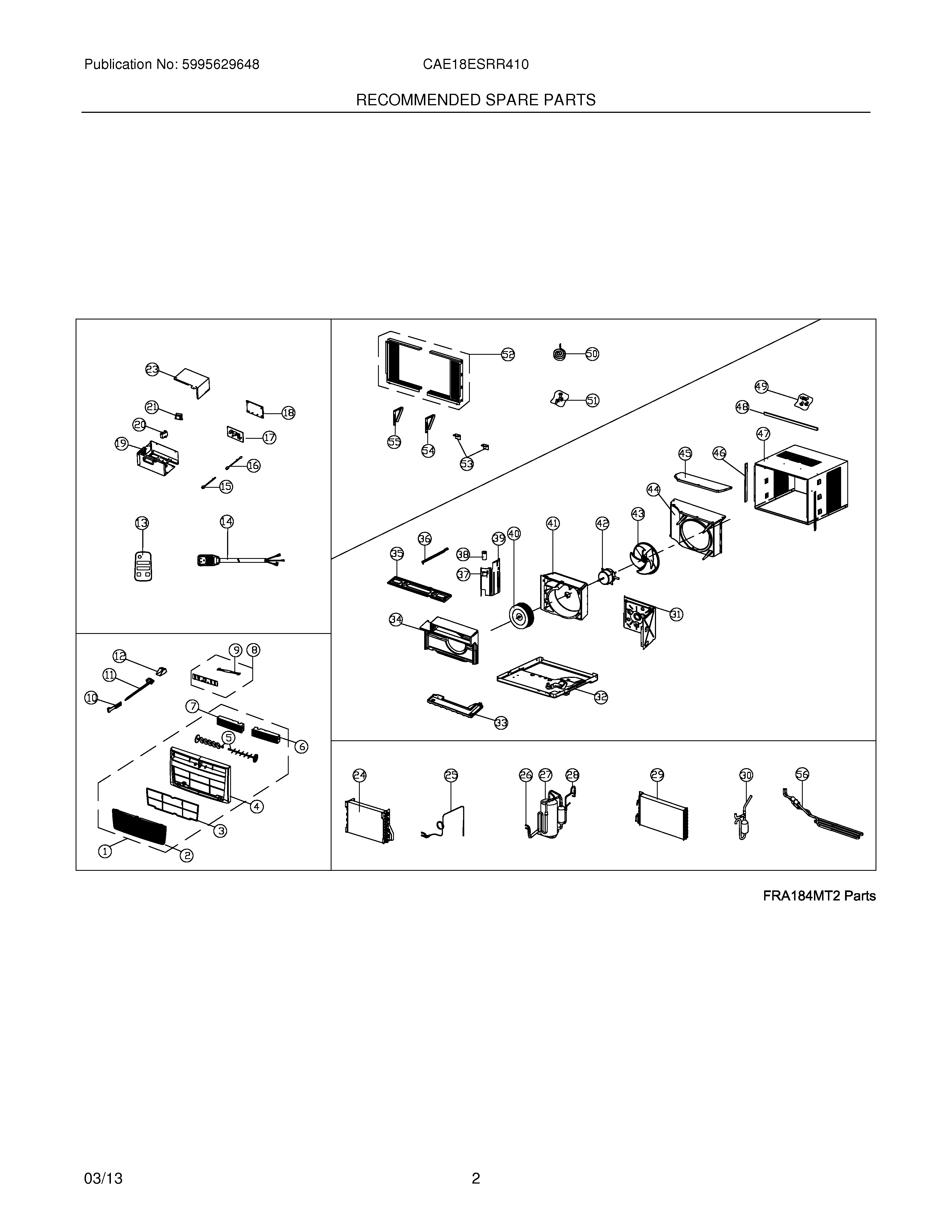

CAE18ESRR410A16 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304483553
2Panel,front grille ,tilt-out
35304525598 Frigidaire Air Conditioner Filter
4WCI 5304483554
5· Louver,vertical
6· Louver,horizontal ,right
7· Louver,horizontal ,left
8PC BOARD, DISPLAY/INPUT
9Wire,connector ,pc boards
10Handle,vent control
11Door,vent control ,with lever
125304476359 Frigidaire Air Conditioner Link Assembly
13Remote Control,transmitter
14Power Cord,electric ,LCDI
155304512375 Frigidaire Air Conditioner Sensor
16Sensor,temperature ,ambient
175304492070 Frigidaire Air Conditioner PC Board
18WCI 5304476251
19WCI 5304476361
205304482883 Frigidaire Air Conditioner Capacitor
215304471063 Frigidaire Air Conditioner Transformer
23WCI 5304476314
24WCI 5304486015
25WCI 5304486016
26WCI 5304486017
27WCI 5304485448
28WCI 5304486018
29WCI 5304486019
305304476322 Frigidaire Air Conditioner Filter Drier
31WCI 5304472538
32Base,unit chassis
33Tray,drip pan
34Scroll,blower housing ,front
35WCI 5304476326
36WCI 5304476327
37Strap,capacitor clamp
38WCI 5304475736
39WCI 5304486009
405304472407 Frigidaire Air Conditioner Blower Wheel
41Scroll,blower housing ,rear
425304483059 Frigidaire Air Conditioner Motor
43BLADE-FAN
44WCI 5304486011
45WCI 5304476330
46Retainer,shutter ,cabinet sides
47Cabinet,wrapper/sleeve
48Rail,shutter track ,top angle
49Screw Kit,top rail mount
50WCI 5304472548
51Hardware,mounting ,screws/locks
52Window Filler Kit,slider panel
53Bracket,sill angle
54Bracket,mounting ,right window
55Bracket,mounting ,left window
56WCI 5304486020
