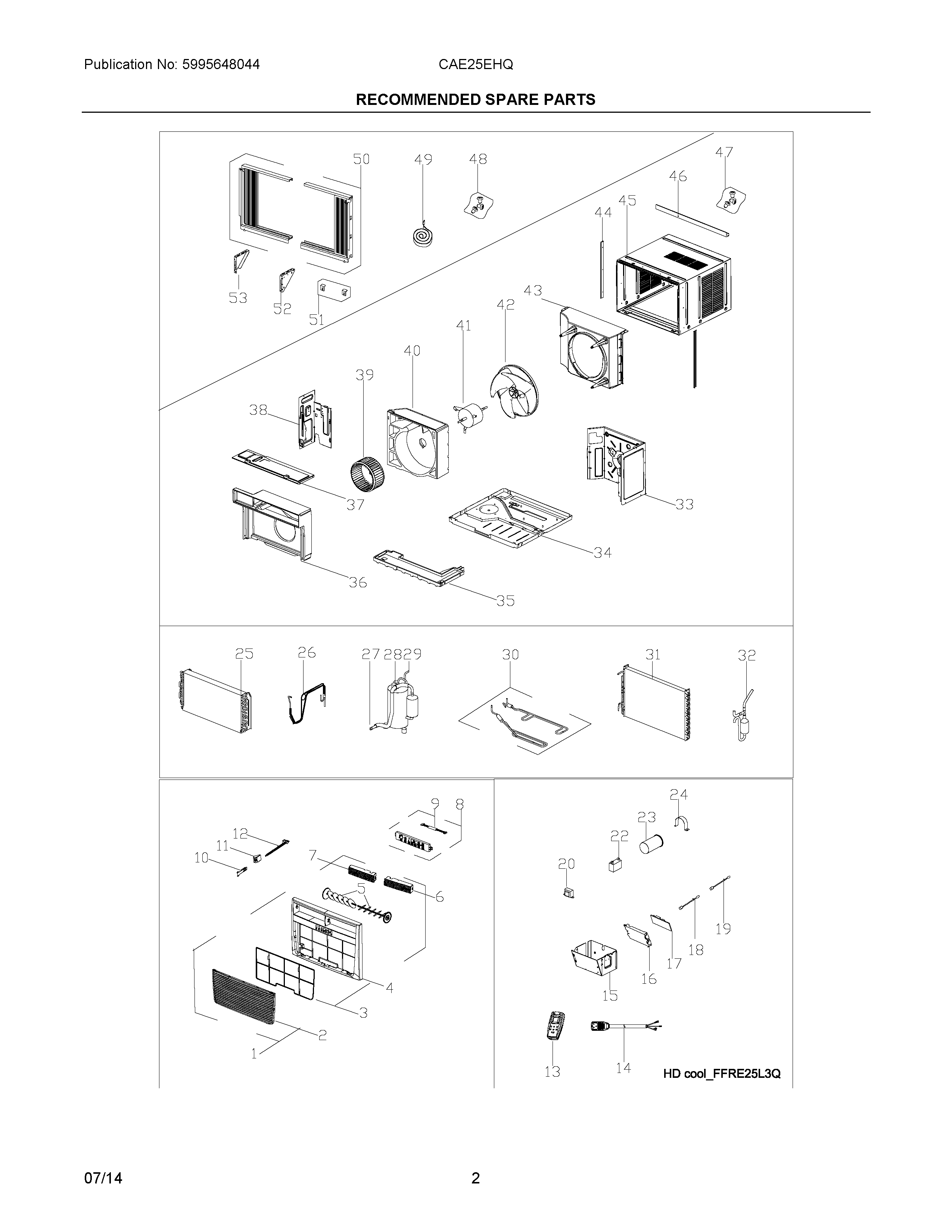

CAE25EHQ20 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1FRONT ASSEMBLY, COMPLETE PANEL
25304477143 Frigidaire Front Grille
3FILTER
4FRAME, FRONT ASSEMBLY
5WCI 5304483550
6WCI 5304483551
7WCI 5304483552
85304495622 Frigidaire Air Conditioner PC Board
95304495009 Frigidaire Air Conditioner Wire
105304495010 Frigidaire Air Conditioner Handle
115304476359 Frigidaire Air Conditioner Link Assembly
125304477149 Frigidaire Air Conditioner Door Assembly
13Remote Control,transmitter
14Power Cord,electric ,LCDI
15WCI 5304495028
16WCI 5304495029
17CONTROL-ELECTRICAL
185304512374 Frigidaire Air Conditioner Sensor
195304512375 Frigidaire Air Conditioner Sensor
205304471063 Frigidaire Air Conditioner Transformer
225304482883 Frigidaire Air Conditioner Capacitor
235304493844 Frigidaire Air Conditioner Capacitor
24Strap,capacitor clamp
25WCI 5304495031
26WCI 5304495032
275304495033 Frigidaire Air Conditioner Tube
28WCI 5304493843
295304495034 Frigidaire Air Conditioner Tube
30Tube,condensate evap ,drain pan
31WCI 5304495035
325304476257 Frigidaire Air Conditioner Filter Drier
33WCI 5304495036
34Base,unit chassis
35Tray,drip pan ,foam
365304495037 Frigidaire Scroll Assembly
37WCI 5304495038
38WCI 5304495039
395304472407 Frigidaire Air Conditioner Blower Wheel
40Scroll,blower housing ,rear
415304482882 Frigidaire Air Conditioner Motor
42BLADE-FAN
435304495040 Frigidaire Air Conditioner Shroud
44Retainer,shutter ,cabinet sides
45Cabinet,wrapper/sleeve
46Rail,shutter track ,top channel
47Screw Kit,top rail mount
48Hardware,mounting ,screws/locks
49Seal kit,foam ,sash & rails
50Window Filler Kit,slider panels ,accordion
51Bracket,sill angle
52Bracket,mounting ,right window
53Bracket,mounting ,left window
