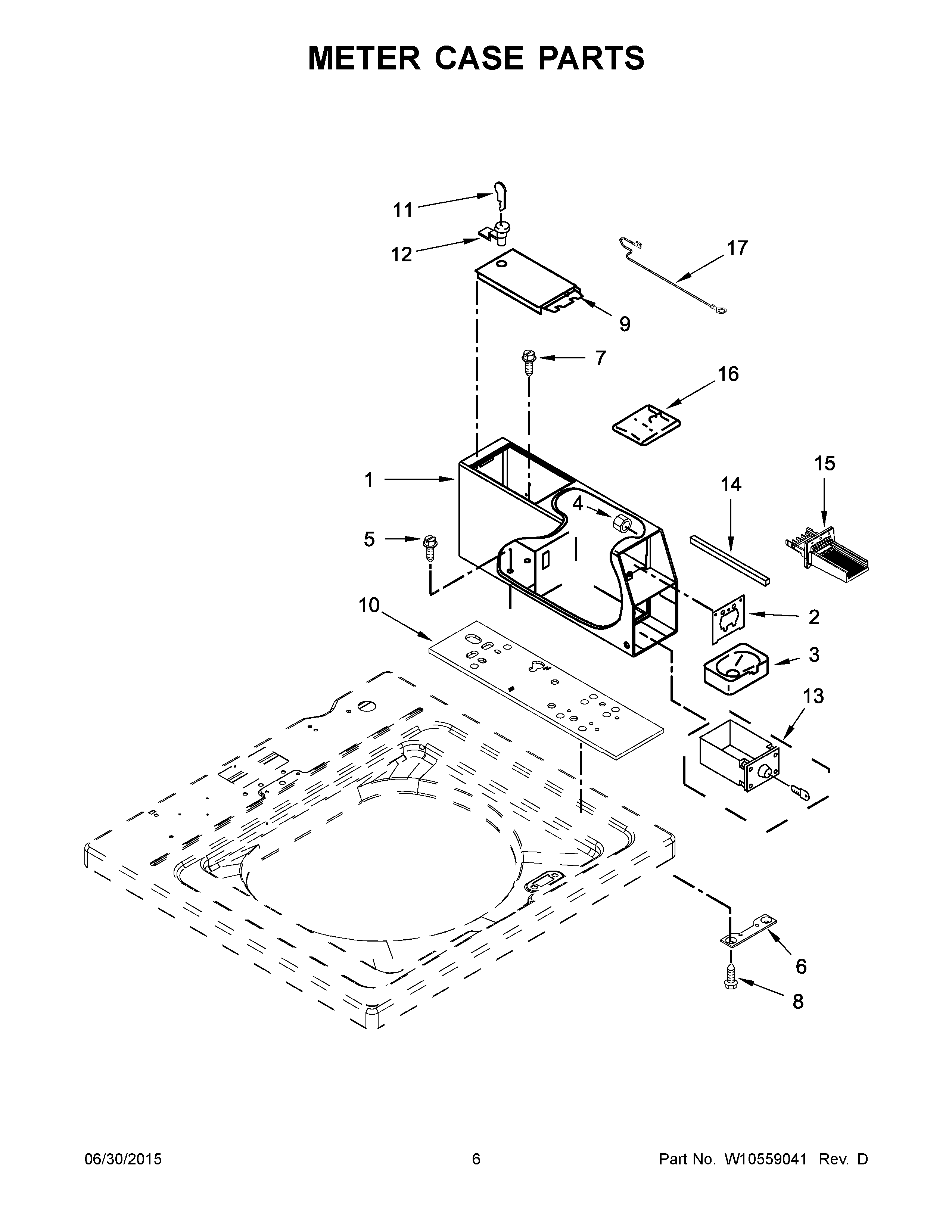

CAE2743BQ0 04 – METER CASE PARTS

CAE2743BQ0 04 – METER CASE PARTS

Written by

in

CAE2743BQ0 04 – METER CASE PARTS

Products

PositionProduct
1WPW10549814 Whirlpool Case
2279950 Whirlpool Funnel
3WP385421 Whirlpool Coin Operated Laundry Funnel
4WP3400029 Whirlpool Dishwasher Nut
5W11715721 Whirlpool Screw Assembly
63347825 Whirlpool Plate
7WPW10139210 Whirlpool Screw
8W10841059 Whirlpool Screw
9W11283272 Whirlpool Washer Dryer Meter Case Access Door
10WP3954812 Whirlpool Cushion
11KEY
12W11315637 Whirlpool Lock Assembly
13W11190039 Whirlpool Coin Box Assembly
14WP8576635 Whirlpool Bolt
15W11126319 Whirlpool Washer Dryer Coin Chute
16WPL 8316524
17W10846503 Whirlpool Wire Assembly
