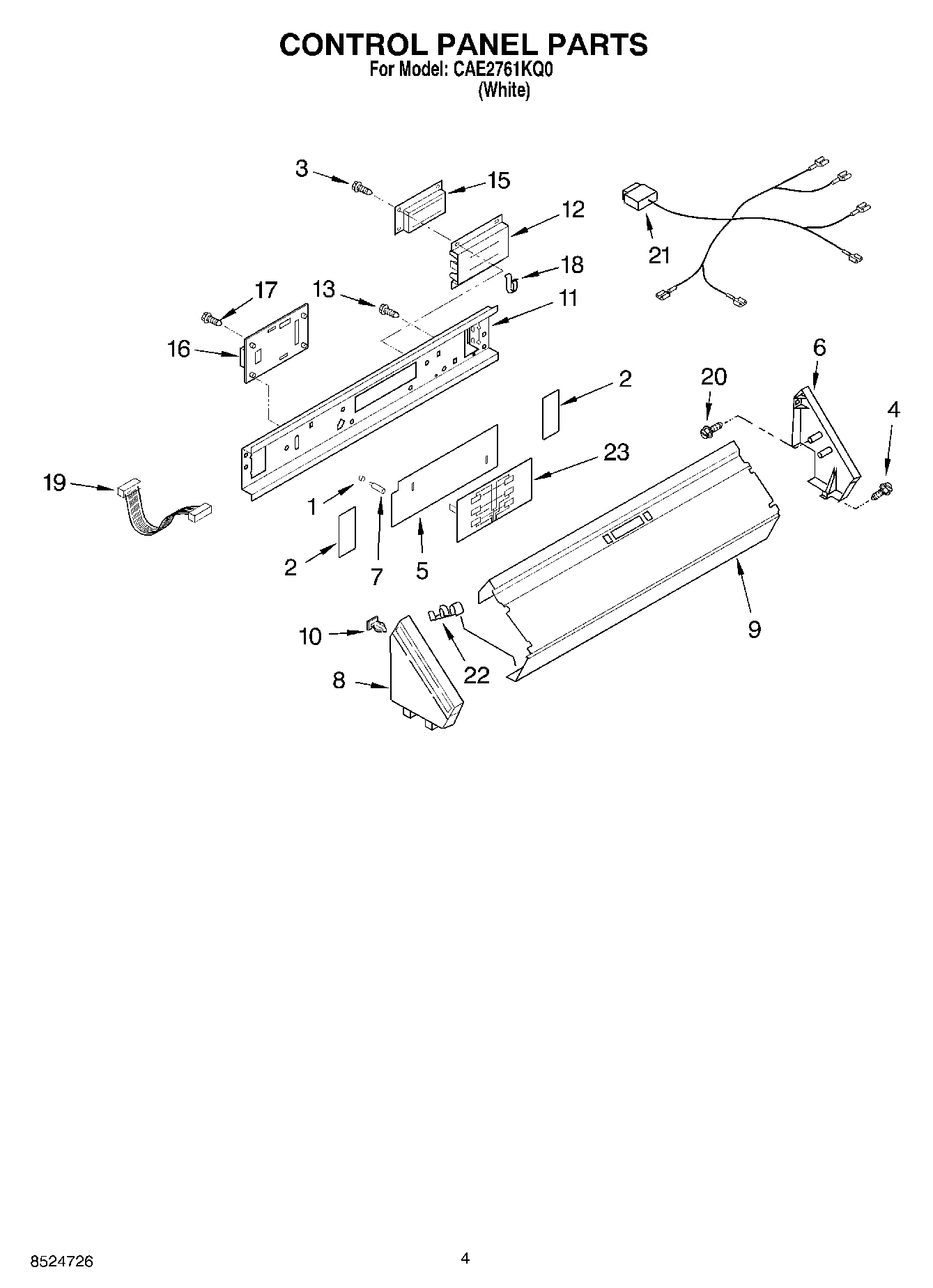

CAE2761KQ0 03 – CONTROL PANEL

Products

PositionProduct
1Cap, Stud
2Backer Plate, Side (2)
3WP90767 Whirlpool Screw
4WP8281182 Whirlpool Screw Assembly
5Backer Plate
6Cap, End (R.H.)
7Mounting Stud
8W11686050 Whirlpool Drive Motor
9Panel, Control
10WP689559 Whirlpool Nut
11Bracket, Control
12Lens, Display
13WP3351614 Whirlpool Screw
15Board, Display
16Board, Control
17WPW10366705 Whirlpool Screw
18Clip (2)
19Harness Wire (Display)
20WPW10109200 Whirlpool Screw
21Harness, Control to Meter Case
22W10113937 Whirlpool Clamp
23Switch, Membrane
