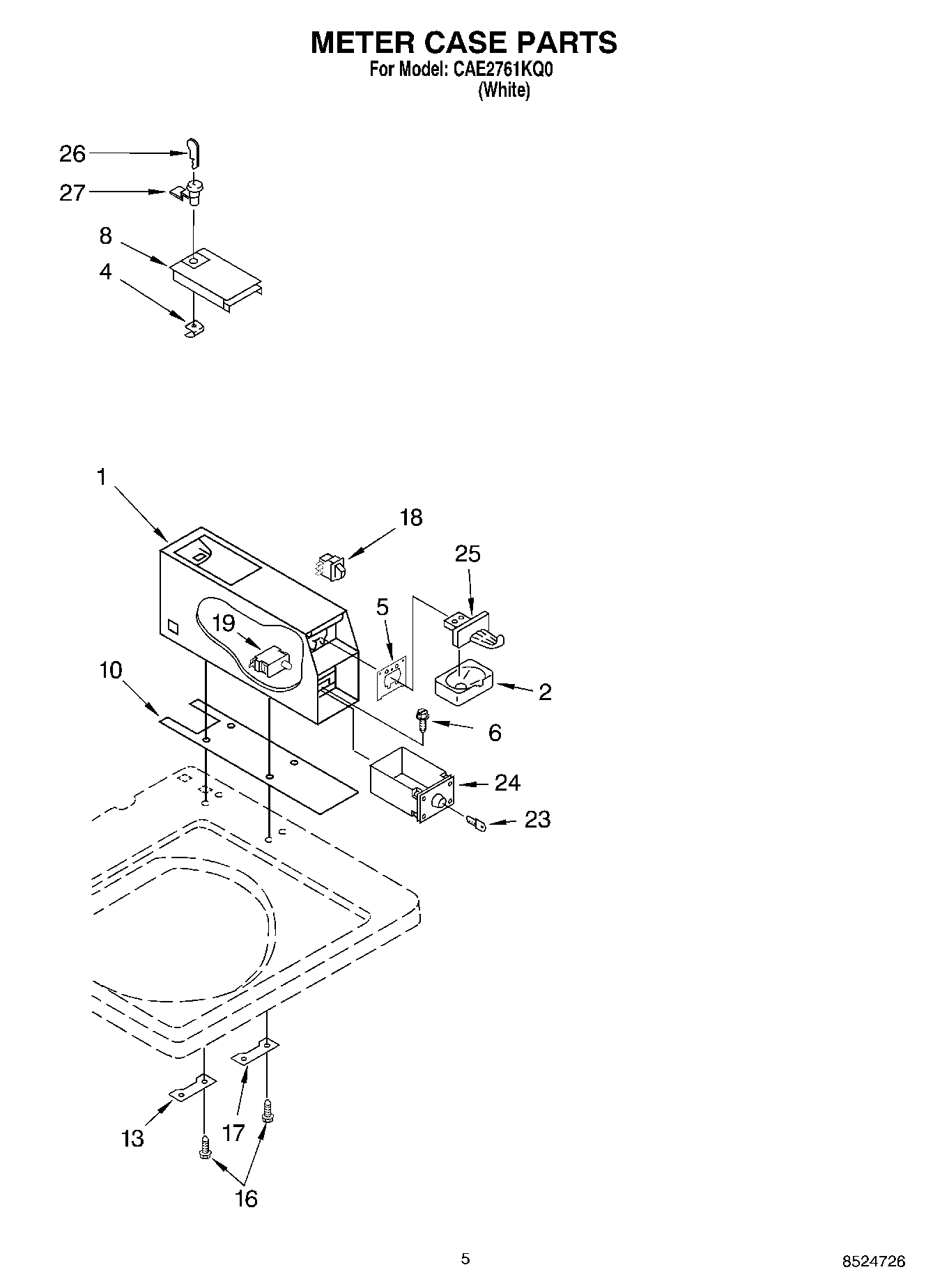

CAE2761KQ0 04 – METER CASE

CAE2761KQ0 04 – METER CASE

Written by

in

CAE2761KQ0 04 – METER CASE

Products

PositionProduct
1WPW10461200 Whirlpool Case
2WP385421 Whirlpool Coin Operated Laundry Funnel
4WP90406 Whirlpool Nut
5279950 Whirlpool Funnel
6W11715721 Whirlpool Screw Assembly
63353994 Whirlpool Screw Assembly
8W11283272 Whirlpool Washer Dryer Meter Case Access Door
10WP3954812 Whirlpool Cushion
13Plate, Mounting
16W10841059 Whirlpool Screw
173347825 Whirlpool Plate
18Switch, Service Diagnostic
19Switch, Vault Counter
23Key, Money Box
26Fascia, Disp (Black)
27Security Lock & Cam Assembly
