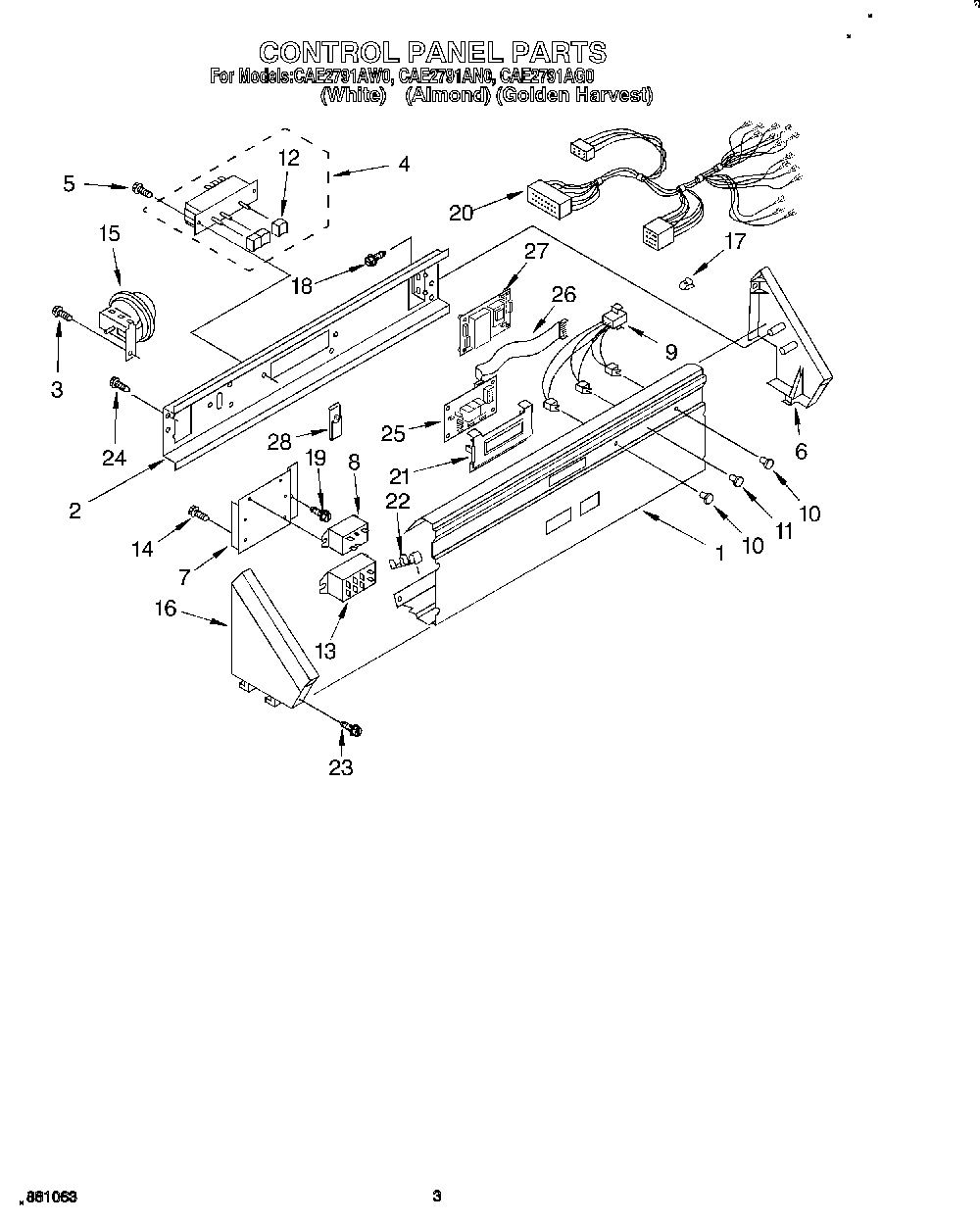

CAE2791AG0 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Console
2	Bracket, Control
3	WP90767 Whirlpool Screw
4	W10330142 Whirlpool Push Button Switch
5	WP965173 Whirlpool Dishwasher Screw
6	End Cap (R.H.)
7	Bracket, Relay
8	WP8566493 Whirlpool Relay
10	WP3348109 Whirlpool Light Lens
11	WP3348110 Whirlpool Light Lens
12	Button (4)
13	Relay, Power 12VAC
14	WP313808 Whirlpool Screw
15	Switch, Water Level
16	Cap, End (L.H.)
17	WP689559 Whirlpool Nut
18	WPL 355326
19	SCREW
20	Harness, Relay
21	Lens, Display
22	W10113937 Whirlpool Clamp
23	WPL 64211
24	WPW10366705 Whirlpool Screw
25	Board, Display
26	(Harness, Strip Display Included With 3360997)
27	Timer, 60 Hz.
28	Clip (2)
