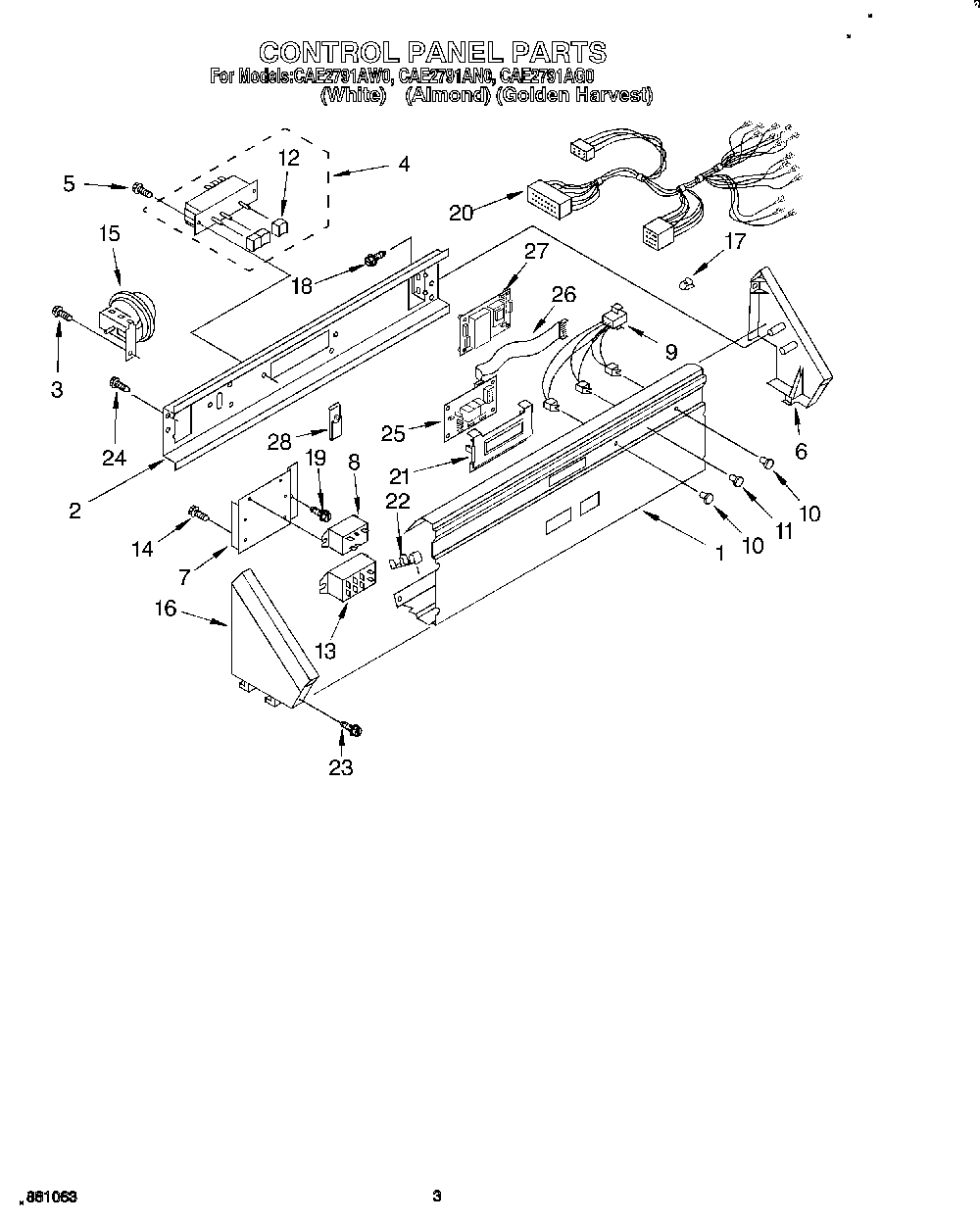

CAE2791AW0 02 – CONTROL PANEL
Written by
in
CAE2791AW0 02 – CONTROL PANEL
Products
Position
Product
1
Panel, Console
2
Bracket, Control
3
WP90767 Whirlpool Screw
4
W10330142 Whirlpool Push Button Switch
5
WP965173 Whirlpool Dishwasher Screw
6
End Cap (R.H.)
7
Bracket, Relay
8
WP8566493 Whirlpool Relay
10
WP3348109 Whirlpool Light Lens
11
WP3348110 Whirlpool Light Lens
12
Button (4)
13
Relay, Power 12VAC
14
WP313808 Whirlpool Screw
15
Switch, Water Level
16
Cap, End (L.H.)
17
WP689559 Whirlpool Nut
18
WPL 355326
19
SCREW
20
Harness, Relay
21
Lens, Display
22
W10113937 Whirlpool Clamp
23
WPL 64211
24
WPW10366705 Whirlpool Screw
25
Board, Display
26
(Harness, Strip Display Included With 3360997)
27
Timer, 60 Hz.
28
Clip (2)
←
