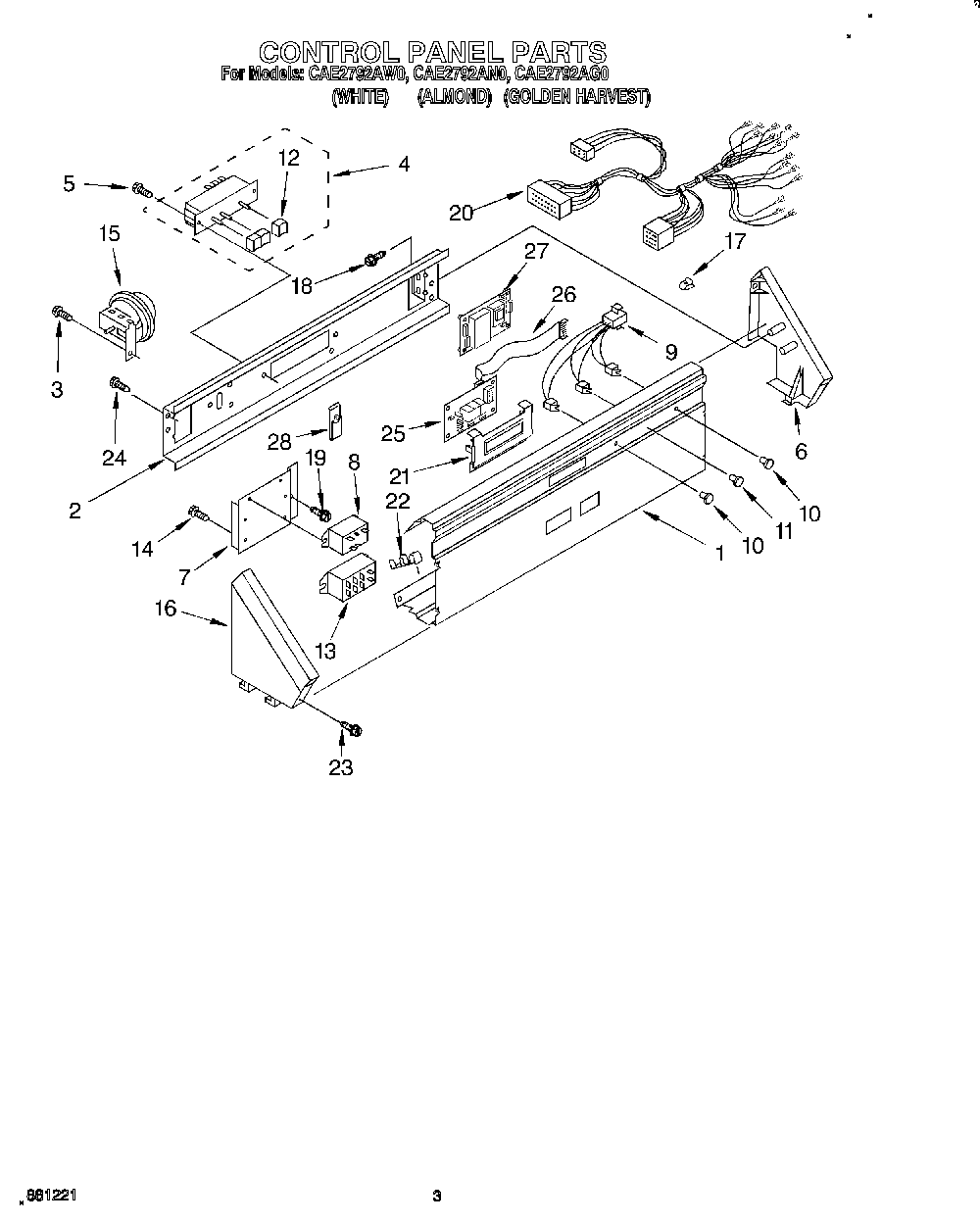

CAE2792AG0 02 – CONTROL PANELadmin2025-04-26T10:58:04+00:00CAE2792AG0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Console |
| 2 | Bracket, Control |
| 3 | WP90767 Whirlpool Screw |
| 4 | Switch, Cycle Selector (Includes Illus. No. 12) |
| 5 | WP965173 Whirlpool Dishwasher Screw |
| 6 | End Cap (R.H.) |
| 7 | Bracket, Relay |
| 8 | WP8566493 Whirlpool Relay |
| 10 | WP3348109 Whirlpool Light Lens |
| 11 | WP3348110 Whirlpool Light Lens |
| 12 | Button (4) |
| 13 | Relay, Power 12VAC |
| 14 | WP313808 Whirlpool Screw |
| 15 | Switch, Water Level |
| 16 | Cap, End (L.H.) |
| 17 | WP689559 Whirlpool Nut |
| 18 | WPW10109200 Whirlpool Screw |
| 19 | SCREW |
| 20 | Harness, Relay |
| 21 | Lens, Display |
| 22 | W10113937 Whirlpool Clamp |
| 23 | WPL 64211 |
| 24 | WPW10366705 Whirlpool Screw |
| 25 | Board, Display |
| 26 | (Harness, Strip Display Included With 3360997) |
| 27 | Timer, 60 Hz. |
| 28 | Clip (2) |
