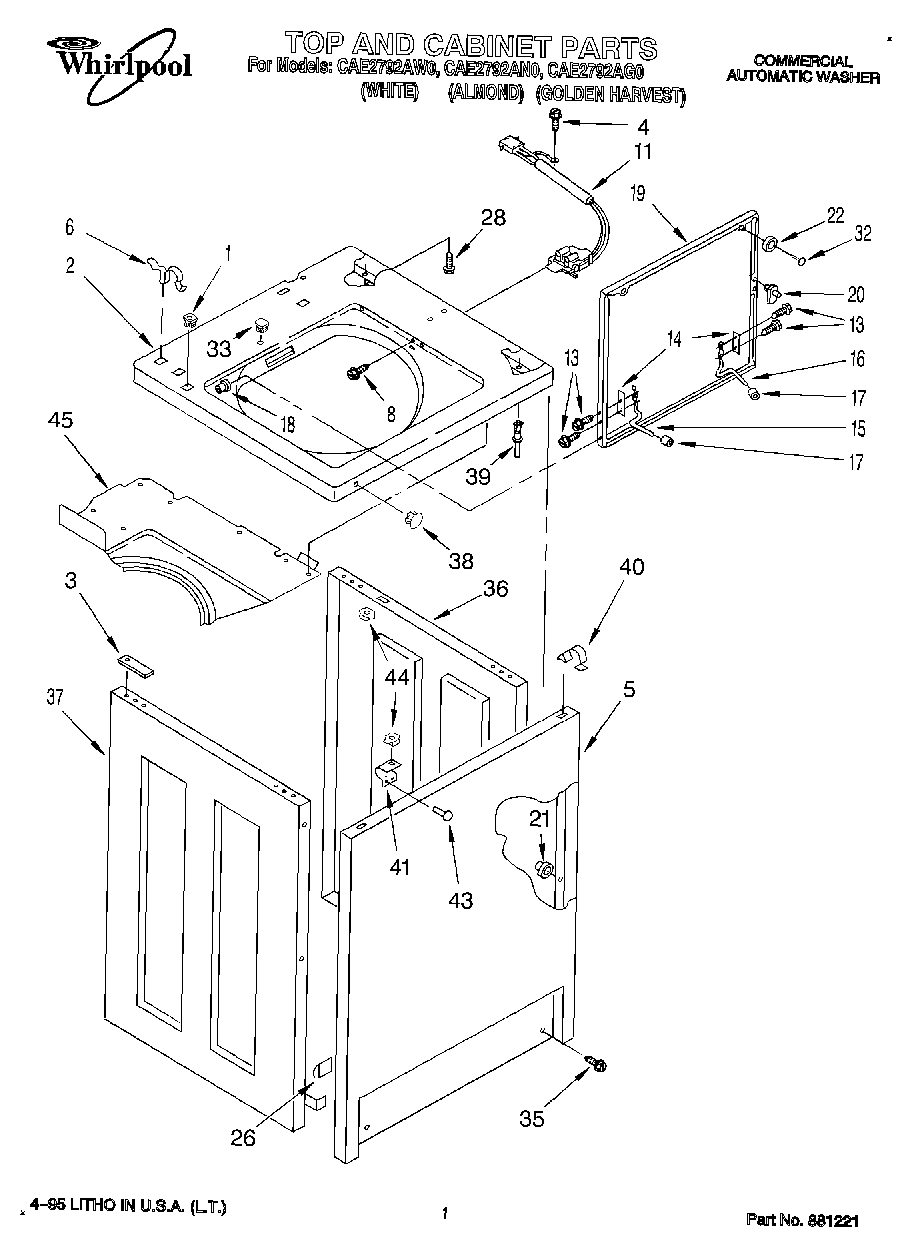

CAE2792AN0 01 – TOP AND CABINET, LIT/OPTIONAL

CAE2792AN0 01 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

CAE2792AN0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT881221
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WPL LIT3360616
Shipping Kit
Golden Harvest (Uncut)
Golden Harvest
WPL LIT3364166
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350572 Whirlpool Oil Transmission 15 Oz
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
WP285195 Whirlpool Sealer Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
1Nut, Push-In (2)
2Top (White)
2Top (For Golden Harvest Model)
2Top (For Almond Model)
3Spacer, Cabinet To Top (4)
4SCREW
5Panel, Front (For Almond Model)
5Panel, Front (For Golden Harvest Model)
5WP3358500 Whirlpool Panel
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193854 Whirlpool Lid Assembly
19Lid (Golden Harvest)
19Lid (For Almond Model)
20WP358684 Whirlpool Strike Assembly
21Locator (4)
22BUMPER
26WP98234 Whirlpool Nut
28Screw (2)
32WP356907 Whirlpool Rivet
33Stop, Push-In Top
35WP3373329 Whirlpool Dishwasher Screw
36Panel, R. H. (White)
36Panel, R. H. (Almond)
36Panel, R. H. (Golden Harvest)
37Panel, L. H. (Almond)
37Panel, L. H. (White)
37Panel, L. H. (For Golden Harvest Model)
38WP387371 Whirlpool Plug
39Pin, Locator (2)
40WP18776 Whirlpool Lock
41Bracket, Lock
43Rivet (2)
44WP90406 Whirlpool Nut
45Shield, Lid
