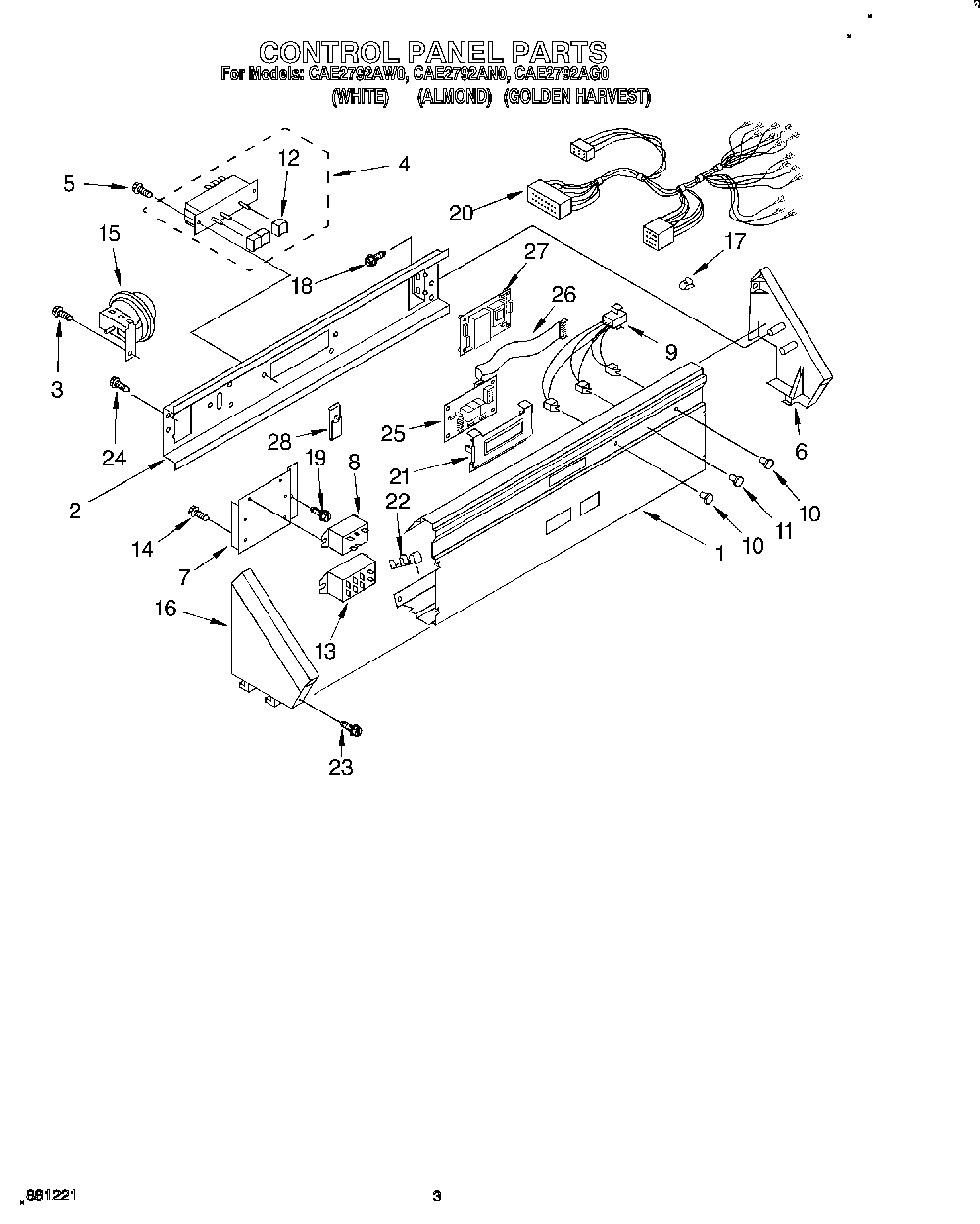

CAE2792AN0 02 – CONTROL PANEL

CAE2792AN0 02 – CONTROL PANEL

Written by

in

CAE2792AN0 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Console
2Bracket, Control
3WP90767 Whirlpool Screw
4Switch, Cycle Selector (Includes Illus. No. 12)
5WP965173 Whirlpool Dishwasher Screw
6End Cap (R.H.)
7Bracket, Relay
8WP8566493 Whirlpool Relay
10WP3348109 Whirlpool Light Lens
11WP3348110 Whirlpool Light Lens
12Button (4)
13Relay, Power 12VAC
14WP313808 Whirlpool Screw
15Switch, Water Level
16Cap, End (L.H.)
17WP689559 Whirlpool Nut
18WPW10109200 Whirlpool Screw
19SCREW
20Harness, Relay
21Lens, Display
22W10113937 Whirlpool Clamp
23WPL 64211
24WPW10366705 Whirlpool Screw
25Board, Display
26(Harness, Strip Display Included With 3360997)
27Timer, 60 Hz.
28Clip (2)
