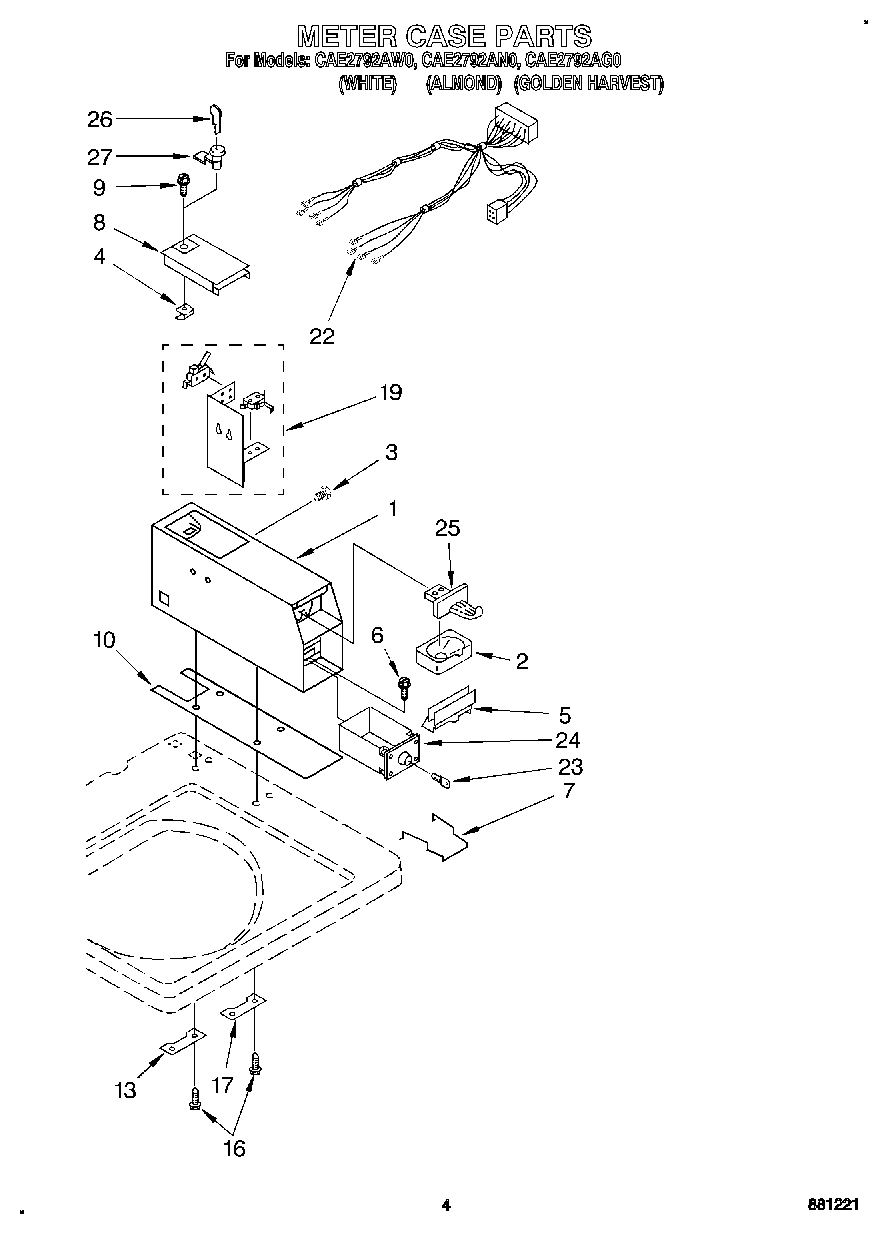

CAE2792AW0 03 – METER CASE

Products

Position	Product
1	Meter Case (White)
1	Meter Case (For Almond Model)
1	Meter Case (For Golden Harvest Model)
2	WP385421 Whirlpool Coin Operated Laundry Funnel
3	339805 Whirlpool Screw
4	WP90406 Whirlpool Nut
5	Spacer, Money Vault (For Almond Model)
5	Spacer (Money Vault) (White)
5	Spacer, Money Vault (Golden Harvest)
6	3353994 Whirlpool Screw Assembly
6	W11715721 Whirlpool Screw Assembly
7	Guide, Drawer
8	Door, Service (New Gold)
8	Door, Service (For Almond Model)
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
9	Screw & Washer
10	WP3954812 Whirlpool Cushion
13	Plate, Mounting
16	W10841059 Whirlpool Screw
17	3347825 Whirlpool Plate
19	Switch, Asy. Accountability
22	Harness, Door & Vault Switch
