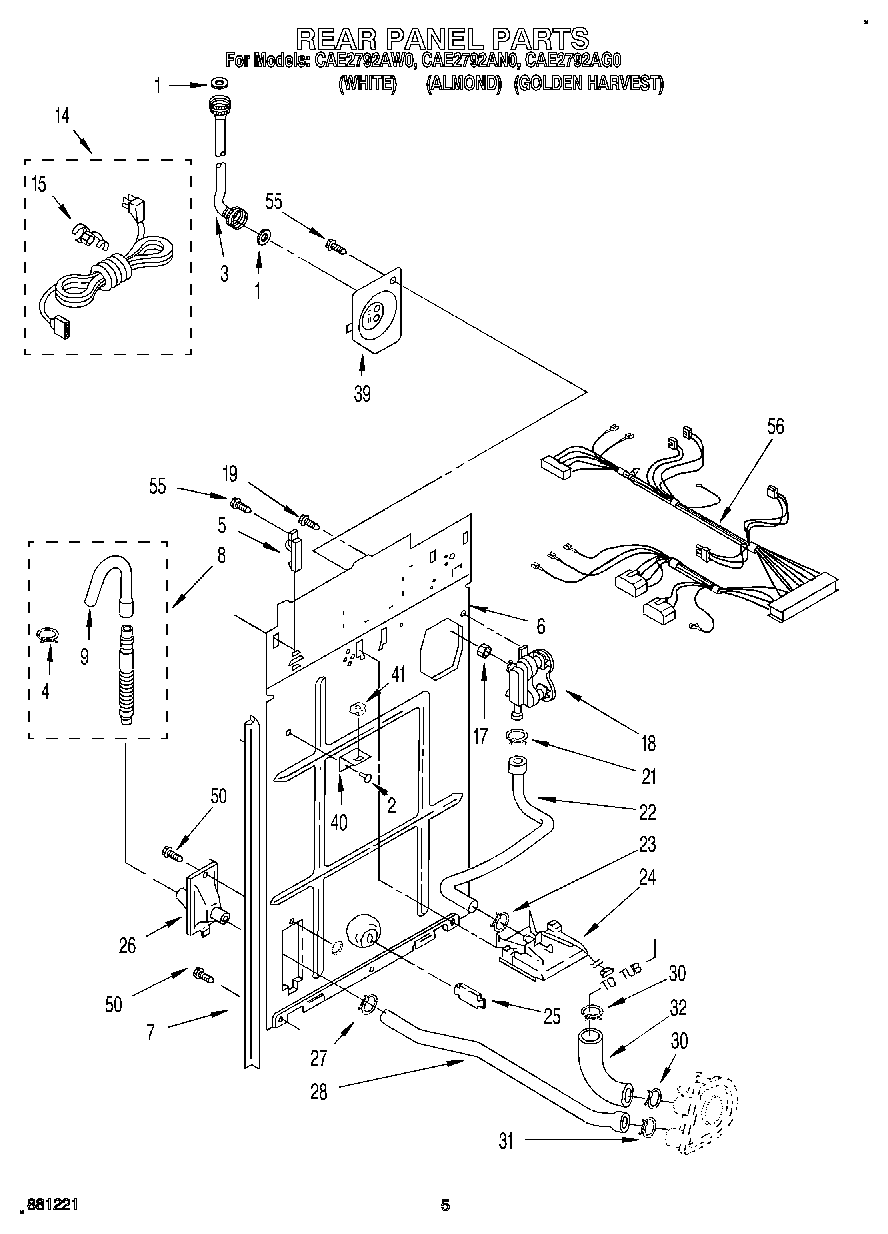

CAE2792AW0 04 – REAR PANEL

CAE2792AW0 04 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2Rivet (2)
3WP89503 Whirlpool Washer Fill Hose
4WP3357331 Whirlpool Clamp
5Hinge, Console (2)
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9WP3357027 Whirlpool Nozzle Assembly
14285928 Whirlpool Power Cord Assembly
15Strain Relief, Power Cord
17WP96160 Whirlpool Washer Inlet Valve Screen
18285805 Whirlpool Washer Water Inlet Valve
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
28WP3348552 Whirlpool Hose
30WP371502 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
39285930 Whirlpool Plate
40Bracket, Top Lock
41WP90406 Whirlpool Nut
48WP356138 Whirlpool Hose Clamp
50WP3390631 Whirlpool Screw
55WP308685 Whirlpool Microwave Screw
56Harness, Wiring (For Detail See Wiring Harness Parts Page)
