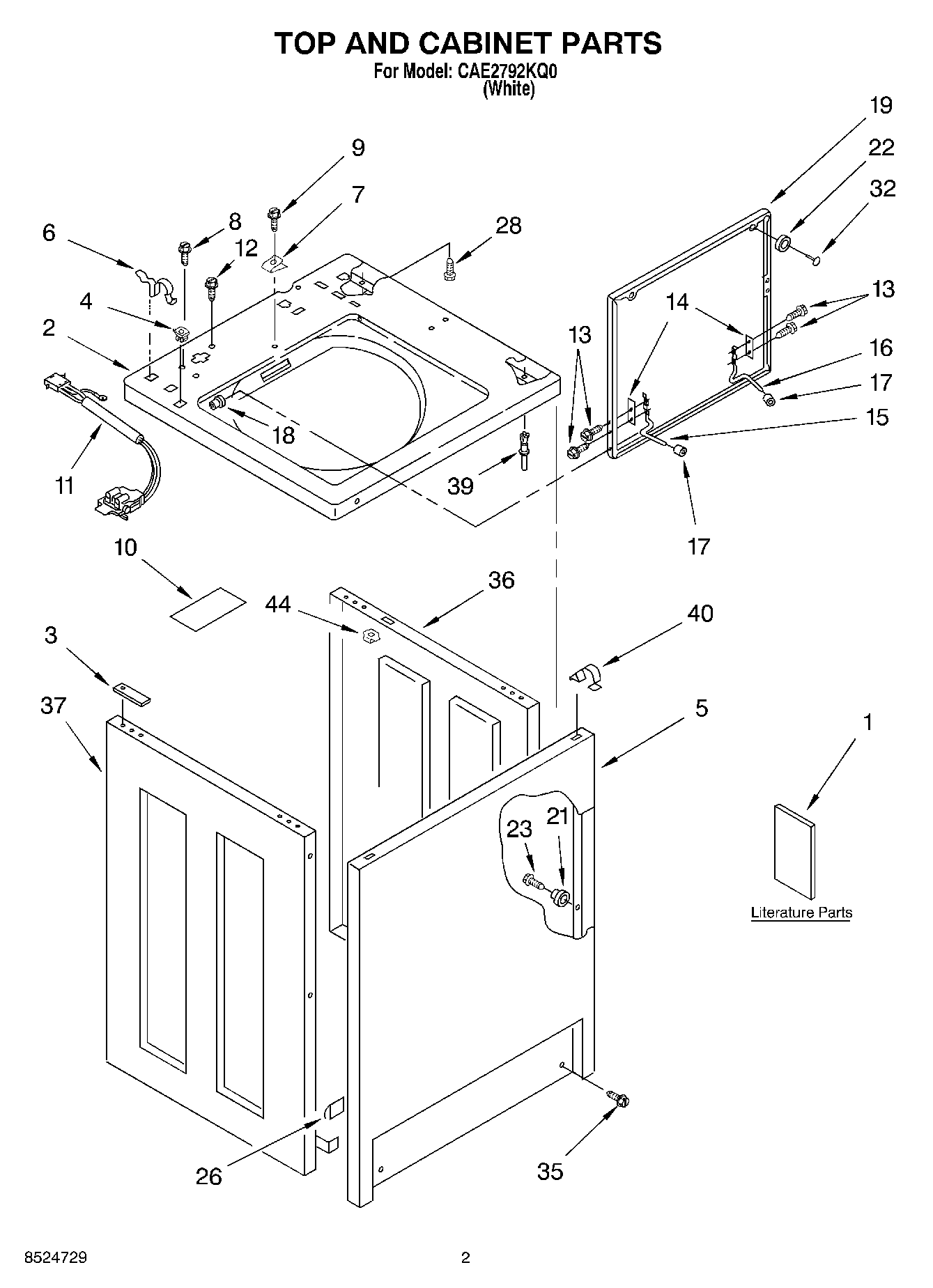

CAE2792KQ0 02 – TOP AND CABINET, LITERATURE

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet)
1Literature Parts (Wiring Diagram)
1Literature Parts (Repair Parts List)
2Top
3Spacer, Cabinet To Top (4)
4Nut, Push-In (2)
5WP3358500 Whirlpool Panel
6WP62780 Whirlpool Cabinet Clip
7Clip, Static Ground
8Screw, Lid Switch (2)
9WP355214 Whirlpool Screw
10Shield, Pressure Switch
11WP8054980 Whirlpool Lid Switch Assembly
12WP3351614 Whirlpool Screw
13SCREW
14WP21097 Whirlpool Pad
15WP8524784 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193854 Whirlpool Lid Assembly
21Locator (4)
22BUMPER
23WP9741232 Whirlpool Dishwasher Screw
26WP98234 Whirlpool Nut
28Screw (2)
32WP356907 Whirlpool Rivet
35WP3373329 Whirlpool Dishwasher Screw
36Panel, R. H. (White)
37Panel, L. H. (White)
39Pin, Locator (2)
40WP18776 Whirlpool Lock
44WP90406 Whirlpool Nut
