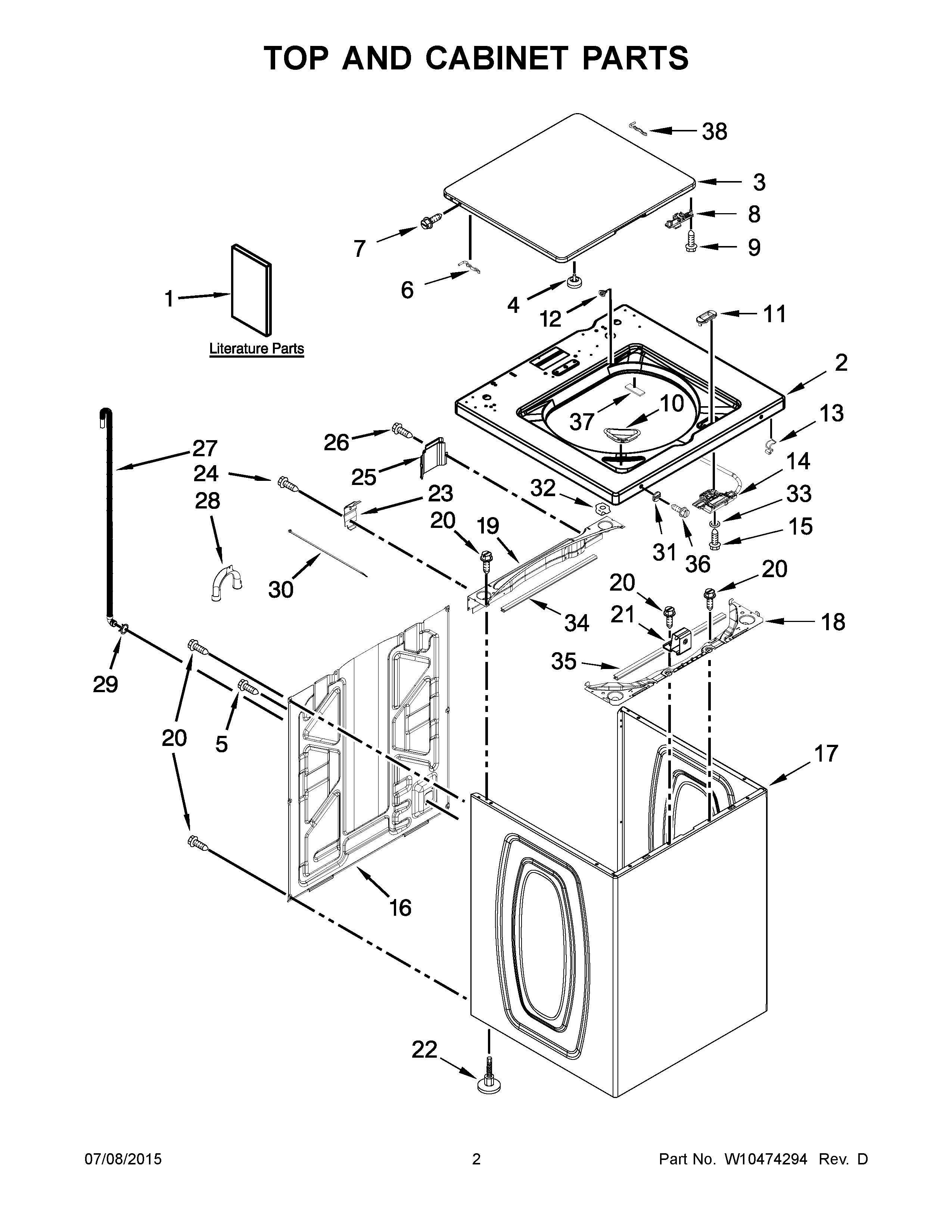

CAE2793BQ0 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	WIRING DIAGRAM
1C	ENERGY GUIDE
1B	TECH SHEET
1	INSTALLATION INSTRUCTIONS
2	W10461170 Whirlpool Top
3	WPW10338625 Whirlpool Lid
4	W11252488 Whirlpool Bumper
5	WP9740848 Whirlpool Dishwasher Screw
6	WP91770 Whirlpool Hinge
7	SCREW
8	WPW10240513 Whirlpool Strike
9	WPW10273971 Whirlpool Screw
10	W10515627 Whirlpool Dispenser
11	WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12	WP21258 Whirlpool Washer Lid Hinge Bearing
13	WP90016 Whirlpool Clip
14	LATCH
15	W11679611 Whirlpool Commercial Part Screw
16	W11486091 Whirlpool Rear Panel
17	W10596395 Whirlpool Cabinet
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21	W10461182 Whirlpool Lock
22	WPW10687506 Whirlpool Washer Leveling Leg
23	W10461176 Whirlpool Hinge
24	WP489128 Whirlpool Refrigerator Screw
25	W10461180 Whirlpool Cover Assembly
26	W10846509 Whirlpool Screw
27	W11244231 Whirlpool Hose
28	WPW10280024 Whirlpool Retainer
29	WP356138 Whirlpool Hose Clamp
30	WPW10339879 Whirlpool Wire Tie
31	W10461181 Whirlpool Bushing
32	WP90406 Whirlpool Nut
33	W10318627 Whirlpool O-Ring
34	W10521454 Whirlpool Dishwasher Protector
35	W10521453 Whirlpool Dishwasher Protector
36	W11170603 Whirlpool Screw
37	W11312189 Whirlpool Pad Assembly
38	WP54583 Whirlpool Hinge
